Onyx Industrial Couplers IP44 & IP67
• IP44 and IP67
• Cable entry: Screw type - can be tightened by hand.
• Material: Engineering plastic
• Standards: IEC 60309-1: 1999 + A1: 2005 + A2: 2012, IEC 60309-2: 1999 + A1: 2005 + A2: 2012
Couplers
-

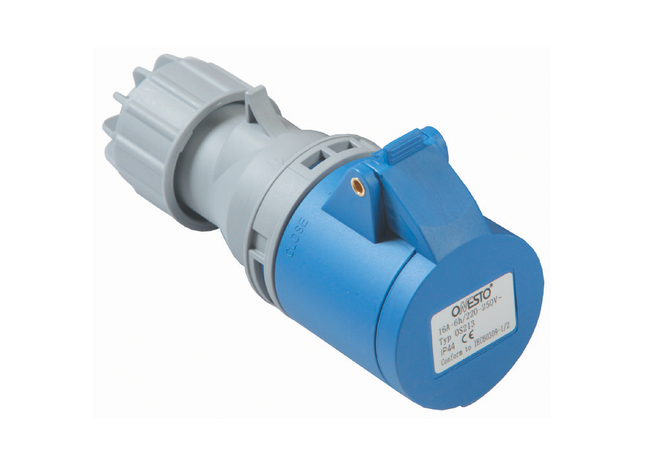

16A 3 Pin Couplers (IP44 & IP67)
Onyx Industrial Couplers STOCK CODE AMPERAGE CONNECTION TYPE IP RATING VOLTAGE OS213 16A 3 Pin IP44 230V OS2131 16A 3 Pin IP67 230V
R 101.51 - R 136.05
-

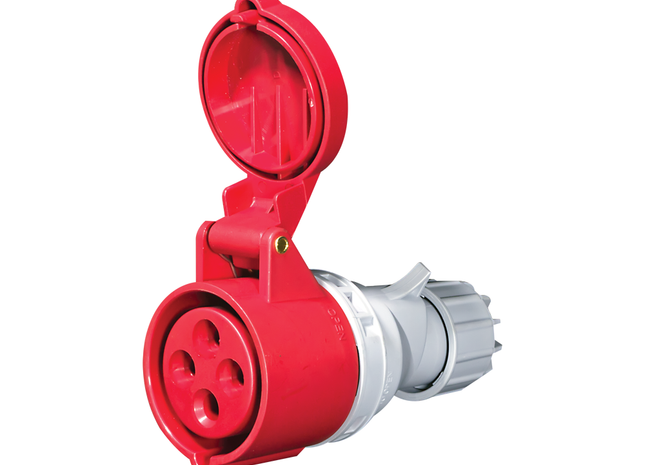

16A 4 & 5 Pin Couplers (IP44 & IP67)
Onyx Industrial Couplers STOCK CODE AMPERAGE CONNECTION TYPE IP RATING VOLTAGE OS214 16A 4 Pin IP44 415V OS2141 16A 4 Pin IP67 415V OS215 16A 5 Pin IP44 415V OS2151 16A 5 Pin IP67 415V
R 127.67 - R 186.28
-
32A 3 Pin Couplers (IP44 & IP67)
Onyx Industrial Coupler STOCK CODE AMPERAGE CONNECTION TYPE IP RATING VOLTAGE OS223 32A 3 Pin IP44 230V OS2231 32A 3 Pin IP67 230V
R 169.53 - R 220.81
-
32A 4 & 5 Pin Couplers (IP44 & IP67)
Onyx Industrial Couplers STOCK CODE AMPERAGE CONNECTION TYPE IP RATING VOLTAGE OS224 32A 4 Pin IP44 415V OS2241 32A 4 Pin IP67 415V OS2241-3 32A 4 Pin 3HR IP67 415V OS225 32A 5 Pin IP44 415V OS2251 32A 5 Pin IP67 415V
R 186.28 - R 272.09
-

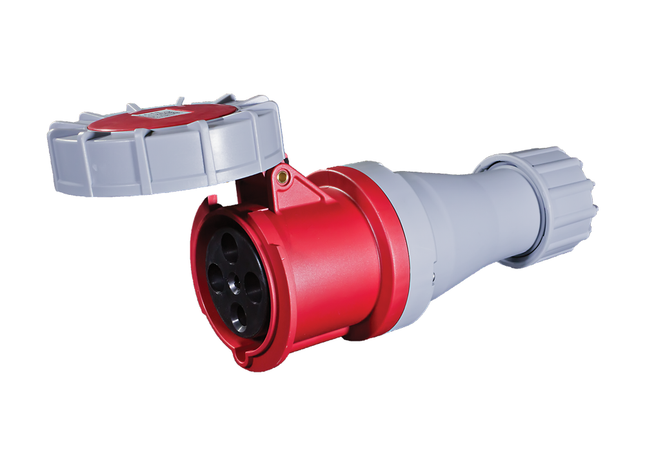

63A 3, 4 & 5 Pin Couplers (IP67)
Onyx Industrial Couplers STOCK CODE AMPERAGE CONNECTION TYPE IP RATING VOLTAGE OS2331 63A 3 Pin IP67 230V OS2341 63A 4 Pin IP67 415V OS2351 63A 5 Pin IP67 415V
R 620.57 - R 729.41
-

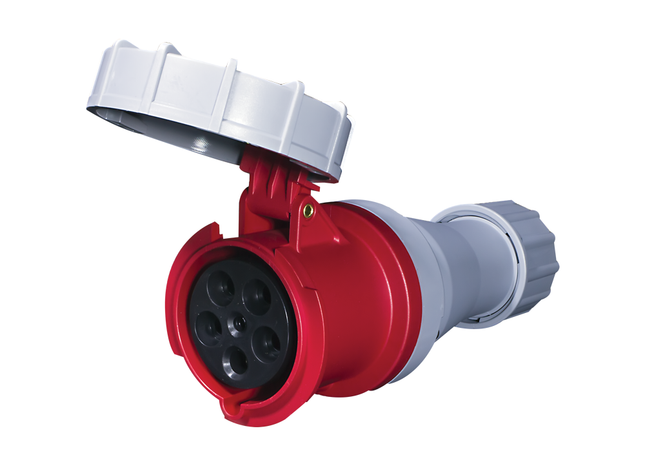

125A 3, 4 & 5 Pin Couplers (IP67)
Onyx Industrial Couplers STOCK CODE AMPERAGE CONNECTION TYPE IP RATING VOLTAGE OS2341 125A 3 Pin IP67 230V OS2441 125A 4 Pin IP67 415V OS2451 125A 5 Pin IP67 415V
R 1,527.89 - R 1,866.96
-

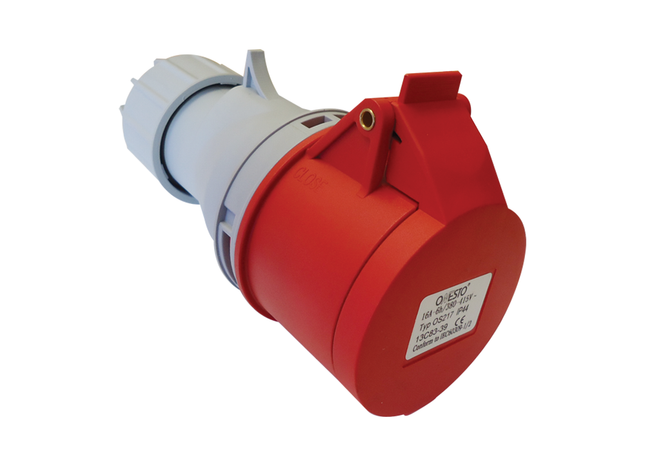

16A 7 Pin Coupler (IP44)
Onyx Industrial Coupler STOCK CODE AMPERAGE CONNECTION TYPE IP RATING VOLTAGE OS217 16A 7 Pin IP44 415V
R 297.21
-

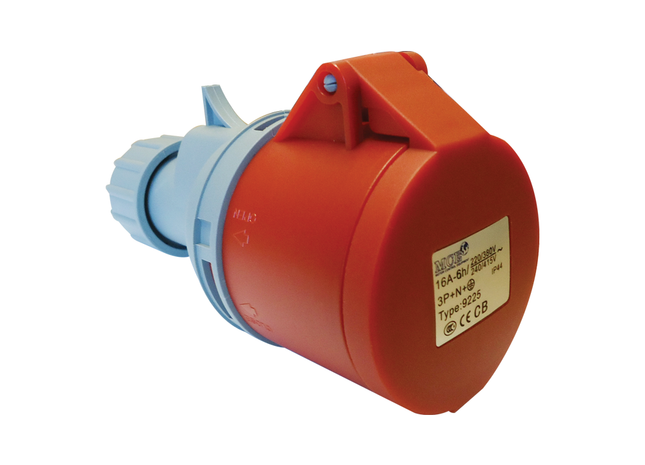

16A 3, 4 & 5 Pin Couplers (IP44)
CEE Industrial Couplers STOCK CODE AMPERAGE CONNECTION TYPE IP RATING VOLTAGE 9223 16A 3 Pin IP44 230V 9224 16A 4 Pin IP44 415V 9225 16A 5 Pin IP44 415V
R 59.65 - R 77.44
-

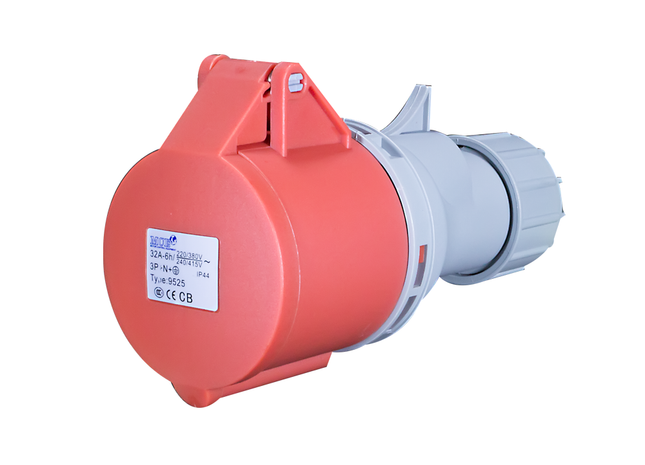

32A 3, 4 & 5 Pin Couplers (IP44)
32A IP44 Industrial Couplers are heavy-duty female connectors designed for safe and reliable power connections in industrial, commercial and outdoor electrical installations across South Africa. IP44-rated for protection against solid objects and water splashing, these CEE-standard couplers are the industry standard for temporary and permanent power connections on construction sites, factories, workshops, events and agricultural installations. Available in 3 configurations:- 32A 3-Pin (2P+E) — 230V single phase (Stock Code: 9523)- 32A 4-Pin (3P+E) — 415V three phase (Stock Code: 9524)- 32A 5-Pin (3P+N+E) — 415V three phase with neutral (Stock Code: 9525) Key Features:- 32A rated current- IP44 ingress protection — splash and dust resistant- CEE industrial standard connector- Suitable for single phase (230V) and three phase (415V) applications- Robust construction for industrial and outdoor environments- Compatible with matching 32A CEE plug tops and switched sockets Typical applications:- Construction sites and temporary power distribution- Factories and industrial workshops- Agricultural and farming installations- Events, stages and outdoor power setups- Generator and portable power connections Order online with fast nationwide delivery across South Africa. Contact us for contractor and bulk pricing. STOCK CODE AMPERAGE CONNECTION TYPE IP RATING VOLTAGE 9523 32A 3 Pin IP44 230V 9524 32A 4 Pin IP44 415V 9525 32A 5 Pin IP44 415V
R 90.00 - R 107.79
