Terminal Boxes
-

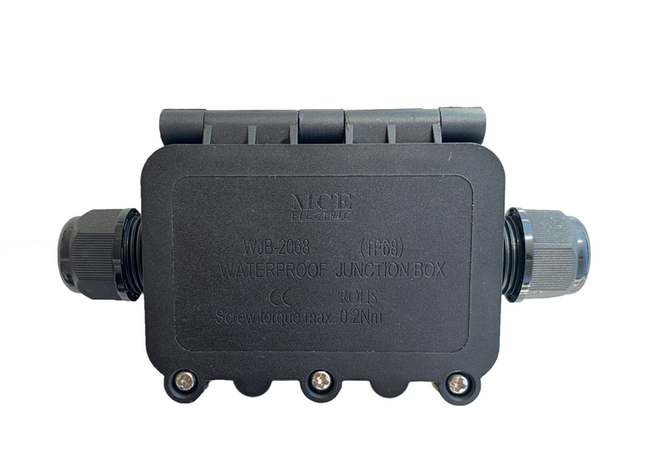

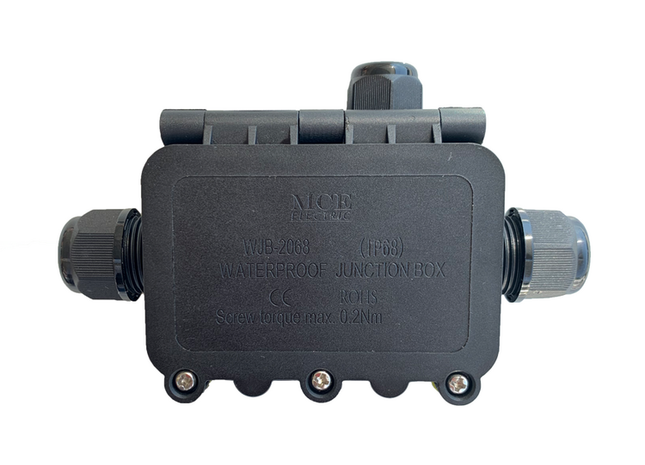

IP68 waterproof junction boxes
IP68 TERMINAL JUNCTION BOXES, SURFACE MOUNTING, COMPLETE WITH ACCESSORIES WJB-2068-2P - 2 POLE (2 x M20 IP68 GLANDS) WJB-2068-3P - 3 POLE (1 x M16 IP68 GLAND & 2 x M20 IP68 GLANDS) WJB-2068-4P - 4 POLE (2 x M16 IP68 GLANDS & 2 x M20 IP68 GLANDS) WJB-2068-5P - 5 POLE (3 x M16 IP68 GLANDS & 2 x M20 IP68 GLANDS) WJB-2068-5P - 5 POLE (4 x M16 IP68 GLANDS & 2 x M20 IP68 GLANDS) SPECIFICATIONS • Contacts: 2 to 6 • Voltage rating: 400V • Current rating: 32A • Wire gauge: <= 0.5mm2 - 4mm2 • Cable OD: Max. M16 <= 7mm2 - 10mm2 M20 <= 9mm2 - 12mm2 • Operating Rating: -40°C°C To + 105°C • Material: PA66 Nylon, Brass, Silicone • IP Rating: IP68 FLAME RETARDANT UL94-V2
R 101.66 - R 145.02
-

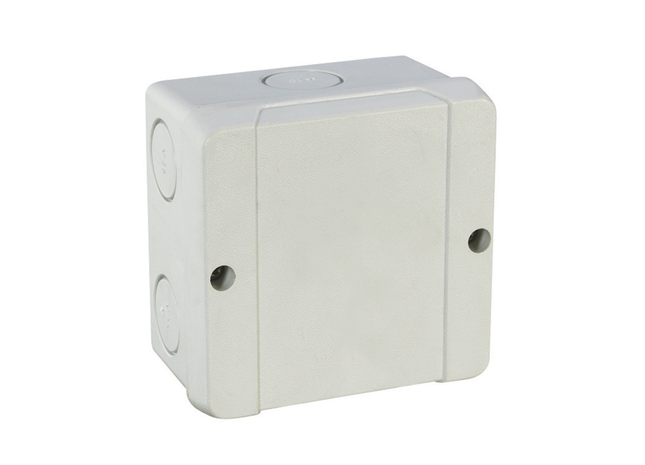

IP54 Terminal junction boxes
IP54 TERMINAL JUNCTION BOXES, SURFACE MOUNTING, COMPLETE WITH ACCESSORIES STOCK CODE DETAILS DIMENSION D9025Z 7 Entry Junction Box2,5mm² - 20A & 4mm ² - 25A. Conductor ø 6 - 13mm 88 x 88 x 53mm D9045Z 7 Entry Junction Box4mm² - & 6mm² - 32A. Conductor ø 9 - 17mm 98 x 98 x 61mm K9065Z 6 Entry Junction Box6mm² - 32A & 10mm² - 50A. Conductor ø 9 - 23mm 139 x 119 x 70mm K9105Z 10 Entry Junction Box10mm² - 50A & 16mm² - 65A. Conductor ø 9 - 23mm 167 x 125 x 82mm K9255Z 10 Entry Junction Box25mm² -85A & 35mm² - 100A. Conductor ø 17 - 30mm 200 x 160 x 98mm WEATHERPROOF GLANDS NOT INCLUDED
R 61.11 - R 411.42
-

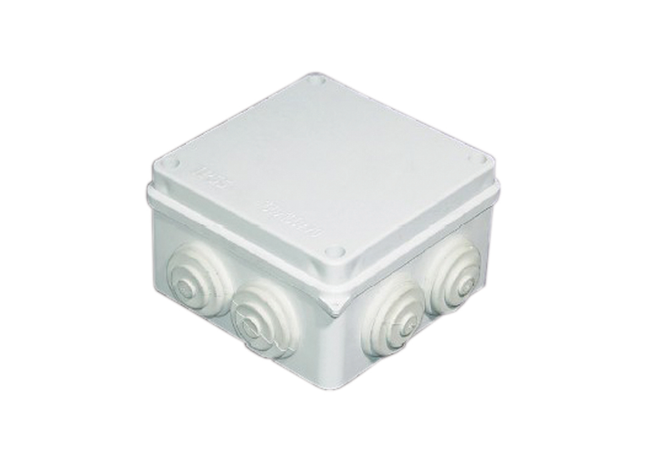

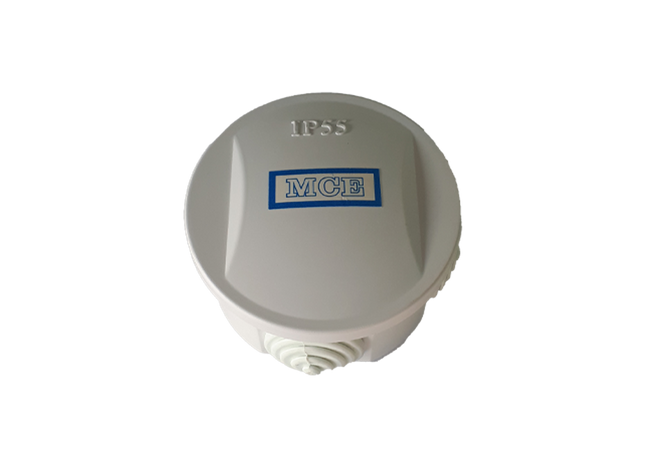

Stepped Gland Junction Boxes - No Terminals
Stepped Gland Junction Boxes - No Terminals STOCK CODE DETAILS DIMENSION SC50 Round stepped gland junction box ø 50 x 50mm SC80 Round stepped gland junction box ø 80 x 50mm SC885 Square stepped gland junction box 80 x 80 x 50mm SC117 Square stepped gland junction box 100 x 100 x 70mm SC15117 Stepped gland junction box 150 x 110 x 70mm SC15157 Square stepped gland junction box 150 x 150 x 70mm SC20158 Stepped gland junction box 200 x 155 x 80mm SC20107 Stepped gland junction box 200 x 100 x 70mm SC20208 Square stepped gland junction box 200 x 200 x 80mm SC25208 Stepped gland junction box 250 x 200 x 80mm SC30251 Stepped gland junction box 300 x 250 x 120mm SC40351 Stepped gland junction box 400 x 350 x 120mm
R 14.65 - R 230.23
-

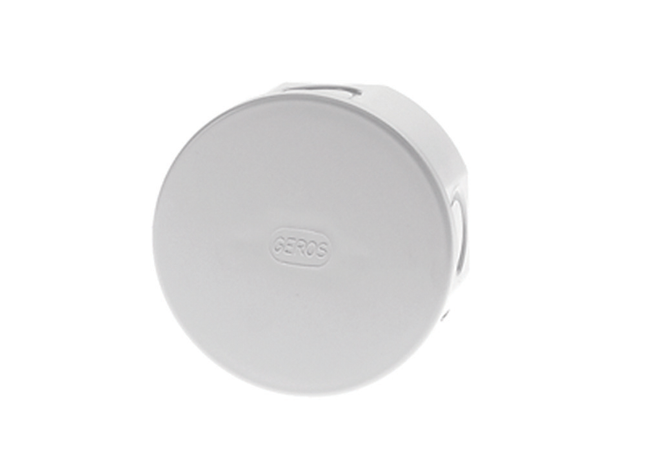

Junction Box
Round Junction Box with Grey Lid - IP44 STOCK CODE DIMENSION GR17000 Ø 83 x 45
R 24.07
