Cable Trays

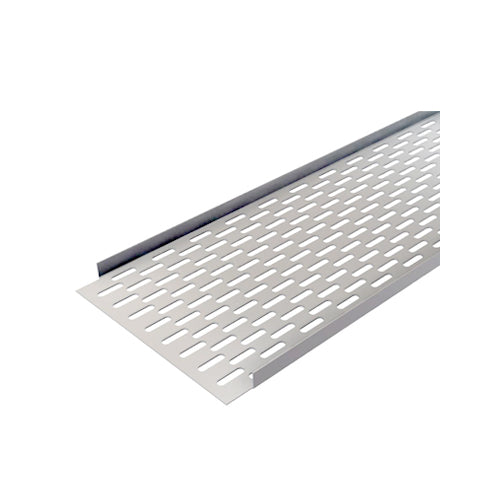

Light Duty Cable Trays (LDCT Series) are slotted steel cable management trays designed for the organised routing and support of electrical cables in commercial, industrial and residential installations across South Africa. Supplied in standard 3 metre lengths, these trays are available in 7 widths from 50mm up to 304mm, with slot sizes of 25 x 6.5mm for easy cable tie and fixing access. Trays are joined by overlapping ends and secured with gutter nuts and bolts for a secure, continuous cable management run. Ideal for use in:- Commercial office buildings and retail fit-outs- Industrial factories, warehouses and manufacturing plants- Data centres and server room cable management- Residential estate and apartment block electrical installations- Above-ceiling and underfloor cable routing- Any installation requiring neat, organised cable runs Available in 7 sizes (LDCT50S to LDCT304S):- LDCT50S — 50mm wide x 12mm high x 3m- LDCT76S — 76mm wide x 12mm high x 3m- LDCT101S — 101mm wide x 19mm high x 3m- LDCT152S — 152mm wide x 19mm high x 3m- LDCT203S — 203mm wide x 19mm high x 3m- LDCT228S — 228mm wide x 19mm high x 3m- LDCT304S — 304mm wide x 19mm high x 3m Slot size: 25 x 6.5mmJoining method: Overlapping ends, fixed with gutter nuts and bolts Priced per 3m length. Contact us for bulk and contractor pricing on larger quantities. Order online with fast nationwide delivery across South Africa —sales@mapleleafelectrical.co.za or 064 086 3515. Light Duty Cable Trays - Standard Length 3m STOCK CODE WIDTH (mm) HEIGHT (mm)  LDCT50S 50 12 LDCT76S 76 12 LDCT101S 101 19 LDCT152S 152 19 LDCT203S 203 19 LDCT228S 228 19 LDCT304S 304 19 SLOT SIZE: 25 x 6.5mm NOTE: Tray sliced by overlapping ends, fixed with gutter nuts and bolts

Read more less

Medium Duty Cable Trays (MDCT Series) are heavy-gauge slotted steel cable management trays designed for applications requiring greater load-bearing capacity and wider cable bundles than light duty trays can accommodate. Supplied in standard 3 metre lengths, these trays are available in 7 widths from 76mm up to 609mm, with a 38mm tray depth and slot size of 25 x 11mm — significantly deeper and stronger than the light duty range, making them suitable for industrial, commercial and heavy infrastructure electrical installations across South Africa. Trays are joined by overlapping ends and secured with gutter nuts and bolts for a continuous, secure cable management run. When to choose Medium Duty over Light Duty:- Heavier cable bundles and higher cable fill requirements- Industrial environments with vibration or mechanical stress- Wider cable runs requiring 228mm to 609mm tray widths- Installations requiring greater structural rigidity- Any application where cables need deeper containment (38mm vs 12mm) Ideal for use in:- Industrial factories, warehouses and manufacturing plants- Mining and heavy industry cable installations- Data centres and large commercial buildings- Infrastructure projects and substations- Above-ceiling and underfloor heavy cable routing- Any installation requiring robust, wide-span cable management Available in 7 sizes (MDCT76S to MDCT609S):- MDCT76S — 76mm wide x 38mm deep x 3m- MDCT114S — 114mm wide x 38mm deep x 3m- MDCT152S — 152mm wide x 38mm deep x 3m- MDCT228S — 228mm wide x 38mm deep x 3m- MDCT304S — 304mm wide x 38mm deep x 3m- MDCT457S — 457mm wide x 38mm deep x 3m- MDCT609S — 609mm wide x 38mm deep x 3m Slot size: 25 x 11mmJoining method: Overlapping ends, fixed with gutter nuts and boltsPriced per 3m length. Contact us for bulk and contractor pricing. Also available: Light Duty Cable Trays (50mm–304mm, 12mm deep) for lighter cable management applications. Order online with fast nationwide delivery across South Africa —sales@mapleleafelectrical.co.za or 064 086 3515. Medium Duty Cable Trays - Standard Length 3m STOCK CODE WIDTH (mm) HEIGHT (mm)  MDCT76S 76 38 MDCT114S 114 38 MDCT152S 152 38 MDCT228S 228 28 MDCT304S 304 38 MDCT457S 457 38 MDCT609S 609 38 SLOT SIZE: 25 x 11mm NOTE: Tray sliced by overlapping ends, fixed with gutter nuts and bolts

Read more less

Heavy Duty Cable Trays (HDCT Series) are thick-gauge slotted steel cable management trays engineered for the most demanding cable support applications in industrial, mining, petrochemical and heavy infrastructure electrical installations across South Africa. With a 76mm tray depth and heavy-gauge steel construction, these trays offer significantly greater load-bearing capacity and structural rigidity than light duty and medium duty trays — making them the correct choice where large cable bundles, long unsupported spans or harsh environmental conditions demand maximum strength and durability. Supplied in standard 3 metre lengths and available in widths from 76mm up to 609mm, with slot sizes designed for easy cable tie and fixing access. Trays are joined by overlapping ends and secured with gutter nuts and bolts for a continuous, secure cable management run. When to choose Heavy Duty over Medium Duty:•⁠  ⁠Very large cable bundles requiring 76mm tray depth•⁠  ⁠Long unsupported spans between cable tray brackets•⁠  ⁠Mining, petrochemical and heavy industrial environments•⁠  ⁠Installations subject to mechanical stress or vibration•⁠  ⁠Any application where maximum load capacity is critical•⁠  ⁠Widths from 457mm to 609mm carrying heavy power cables Ideal for use in:•⁠  ⁠Mining and minerals processing plants•⁠  ⁠Petrochemical and oil & gas installations•⁠  ⁠Heavy industrial factories and manufacturing plants•⁠  ⁠Power stations and substations•⁠  ⁠Large commercial and infrastructure projects•⁠  ⁠Data centres with high-density cable requirements•⁠  ⁠Any installation demanding maximum cable tray strength Cable Tray Range Comparison:•⁠  ⁠Light Duty (LDCT) — 50mm–304mm wide | 12mm deep | Light commercial use•⁠  ⁠Medium Duty (MDCT) — 76mm–609mm wide | 38mm deep | Industrial use•⁠  ⁠Heavy Duty (HDCT) — 76mm–609mm wide | 76mm deep | Mining & heavy industrial Slot size: 25 x 11mmJoining method: Overlapping ends, fixed with gutter nuts and boltsPriced per 3m length. Contact us for bulk and contractor pricing. Also available:→ Light Duty Cable Trays (50mm–304mm, 12mm deep)→ Medium Duty Cable Trays (76mm–609mm, 38mm deep) Order online with fast nationwide delivery across South Africa.Contact us for contractor and bulk pricing —sales@mapleleafelectrical.co.za or 064 086 3515. Heavy Duty Cable Trays - Standard Length 3m STOCK CODE WIDTH (mm) HEIGHT (mm)  HDCT76S 76 76 HDCT114S 114 76 HDCT152S 152 76 HDCT228S 228 76 HDCT304S 304 76 HDCT457S 457 76 HDCT609S 609 76 SLOT SIZE: 25 x 11mm NOTE: Tray sliced by overlapping ends, fixed with gutter nuts and bolts

Read more less
