Wire Mesh Cable Trays
-
Strut Africa Medium Duty Wire Mesh Cable Tray | 50mm–600mm Wide | 50mm Deep | 50x50mm Pitch
Medium Duty Wire Mesh Cable Trays (WMM Series) are open-weave galvanised steel cable management trays designed for the flexible, ventilated routing of electrical cables, data cables and instrumentation cables in commercial, industrial and infrastructure installations across South Africa. Unlike solid or slotted steel cable trays, wire mesh cable trays offer a unique combination of maximum ventilation, lightweight construction and exceptional flexibility — allowing cables to enter and exit the tray at any point along its length without cutting or drilling, making them particularly popular for data centres, office buildings, retail fit-outs and commercial installations where cable routing changes frequently. Supplied in standard 3 metre lengths with a 50 x 50mm wire mesh pitch and 50mm side height, the WMM series is available in 8 widths from 50mm up to 600mm to suit any cable volume or installation requirement. Wire Mesh Tray vs Solid Cable Tray — Which Do You Need?• Wire Mesh Tray — Open weave design. Maximum ventilation. Lightweight and flexible. Cables enter/exit anywhere. Best for data cables, commercial offices and frequent cable changes. Easier to install.• Solid Slotted Tray — Solid or slotted bottom. Better for heavier power cables requiring full structural support along their entire length. Better for industrial use. Ideal for use in:• Data centres and server rooms• Commercial office buildings and retail fit-outs• Shopping centres and hospitality installations• Residential estate and apartment block data/electrical runs• Above-ceiling data and communication cable routing• Any installation requiring flexible, accessible cable management Available in 8 sizes (WMM Series):• WMM50S — 50mm wide x 50mm deep x 3m• WMM100S — 100mm wide x 50mm deep x 3m• WMM150S — 150mm wide x 50mm deep x 3m• WMM200S — 200mm wide x 50mm deep x 3m• WMM300S — 300mm wide x 50mm deep x 3m• WMM400S — 400mm wide x 50mm deep x 3m• WMM500S — 500mm wide x 50mm deep x 3m• WMM600S — 600mm wide x 50mm deep x 3m Wire mesh pitch: 50 x 50mmPriced per 3m length. Contact us for bulk and contractor pricing. Also available in our Cable Management range:→ Light Duty Cable Trays — 50mm to 304mm wide, 12mm deep→ Medium Duty Cable Trays — 76mm to 609mm wide, 38mm deep→ Heavy Duty Cable Trays — 76mm to 609mm wide, 76mm deep→ Medium Duty Cable Ladder — 100mm to 500mm wide, 55mm deep→ Heavy Duty Cable Ladder — 100mm to 500mm wide, 76mm deep Order online with fast nationwide delivery across South Africa.Contact us for contractor and bulk pricing —sales@mapleleafelectrical.co.za or 064 086 3515. STOCK CODE WIDTH (mm) HEIGHT (mm) WMM50S 50 50 WMM100S 100 50 WMM150S 150 50 WMM200S 200 50 WMM300S 300 50 WMM400S 400 50 WMM500S 500 50 WMM600S 600 50 WIRE MESH TRAYS WITH A PITCH OF 50 X 50MM
R 241.80 - R 697.10
-
Strut Africa Heavy Duty Wire Mesh Cable Tray | 50mm–600mm Wide | 75mm Deep
Heavy Duty Wire Mesh Cable Trays (WHMM Series) are thick-gauge galvanised steel open-weave cable management trays engineered for demanding cable support applications in industrial, mining and heavy commercial electrical installations across South Africa. Combining the flexibility and ventilation benefits of wire mesh construction with the structural strength of heavy-gauge steel, heavy duty wire mesh trays are ideal where large cable volumes, heavy cable loads or harsh environments demand more than a standard medium duty wire mesh tray can provide. Unlike solid or slotted steel cable trays, wire mesh cable trays allow cables to enter and exit the tray at any point along their length without cutting or drilling — making installation faster and future cable additions simpler, even in demanding industrial environments. Supplied in standard 3 metre lengths with a 50 x 50mm wire mesh pitch and 75mm side height, available in 8 widths from 50mm up to 600mm to suit any cable volume or installation requirement. When to choose Heavy Duty over Medium Duty Wire Mesh:• Heavier cable bundles requiring greater tray depth• Industrial and mining environments with larger power cables• Installations requiring maximum structural rigidity• Long unsupported spans between cable tray brackets• Harsh environments subject to mechanical stress or vibration Ideal for use in:• Mining and minerals processing plants• Industrial factories and manufacturing plants• Petrochemical and oil & gas installations• Power stations and substations• Large commercial buildings with heavy cable requirements• Data centres with high-density cable installations• Any installation requiring wire mesh flexibility with heavy duty structural strength Available in 8 sizes (WHMM Series):• WHMM50S — 50mm wide x 75mm deep x 3m• WHMM100S — 100mm wide x 75mm deep x 3m• WHMM150S — 150mm wide x 75mm deep x 3m• WHMM200S — 200mm wide x 75mm deep x 3m• WHMM300S — 300mm wide x 75mm deep x 3m• WHMM400S — 400mm wide x 75mm deep x 3m• WHMM500S — 500mm wide x 75mm deep x 3m• WHMM600S — 600mm wide x 75mm deep x 3m Priced per 3m length. Contact us for bulk and contractor pricing. Also available in our Cable Management range:→ Medium Duty Wire Mesh Cable Tray — 50mm to 600mm, 50mm deep→ Light Duty Cable Trays — 50mm to 304mm, 12mm deep→ Medium Duty Cable Trays — 76mm to 609mm, 38mm deep→ Heavy Duty Cable Trays — 76mm to 609mm, 76mm deep→ Medium Duty Cable Ladder — 100mm to 500mm, 55mm deep→ Heavy Duty Cable Ladder — 100mm to 500mm, 76mm deep Order online with fast nationwide delivery across South Africa.Contact us for contractor and bulk pricing —sales@mapleleafelectrical.co.za or 064 086 3515. STOCK CODE WIDTH (mm) HEIGHT (mm) WMHD100S 100 75 WMHD150S 150 75 WMHD200S 200 75 WMHD300S 300 75 WMHD400S 400 75 WMHD500S 500 75 WMHD600S 600 75 WMHD800S 800 75 WMHD1000S 1000 75
R 476.77 - R 1,661.82
-
Strut Africa Medium Duty Wire Mesh Horizontal Bend | 90° Corner | 50mm–600mm
Medium Duty Wire Mesh Horizontal Bends (WMM Series) are 90° corner accessories designed for use with the WMM Series medium duty wire mesh cable tray system — allowing cable tray runs to change direction horizontally at 90° without cutting, bending or modifying straight tray lengths. An essential accessory for any wire mesh cable tray installation where cable runs need to navigate corners and obstacles, the horizontal bend maintains the open-weave wire mesh construction throughout the corner — preserving the ventilation, cable accessibility and flexible routing benefits of the WMM system at every direction change. Manufactured to match the WMM Series straight tray dimensions exactly — 50mm tray height with a 50x50mm wire mesh pitch — available in 8 widths from 50mm up to 600mm to suit any installation requirement. Typical Applications:• Data centre and server room cable tray corners• Commercial office above-ceiling cable management• Retail and hospitality cable tray installations• Any installation where cable tray runs change direction horizontally at 90° Compatible With:• Medium Duty Wire Mesh Cable Tray (WMM Series) — straight lengths• Medium Duty Wire Mesh 4-Way Cross Pieces (WMM Series) Available in 8 sizes:• WMM50H — 50mm wide x 50mm deep• WMM100H — 100mm wide x 50mm deep• WMM150H — 150mm wide x 50mm deep• WMM200H — 200mm wide x 50mm deep• WMM300H — 300mm wide x 50mm deep• WMM400H — 400mm wide x 50mm deep• WMM500H — 500mm wide x 50mm deep• WMM600H — 600mm wide x 50mm deep Priced per piece. Contact us for bulk and contractor pricing. Also available in our Wire Mesh Cable Tray range:→ Medium Duty Wire Mesh Cable Tray — straight lengths, 50mm–600mm→ Medium Duty Wire Mesh 4-Way Cross Piece — junction pieces, 50mm–600mm→ Heavy Duty Wire Mesh Horizontal Bend — 90° corners, 100mm–1000mm, 75mm deep→ Heavy Duty Wire Mesh Cable Tray — straight lengths, 100mm–1000mm Order online with fast nationwide delivery across South Africa.Contact us for contractor and bulk pricing —sales@mapleleafelectrical.co.za or 064 086 3515. STOCK CODE WIDTH (mm) HEIGHT (mm) WMM50H 50 50 WMM100H 100 50 WMM150H 150 50 WMM200H 200 50 WMM300H 300 50 WMM400H 400 50 WMM500H 500 50 WMM600H 600 50
R 109.87 - R 298.82
-
Strut Africa Heavy Duty Wire Mesh Horizontal Bend | 90° Corner | 100mm–1000mm
Heavy Duty Wire Mesh Horizontal Bends (WMHD Series) are heavy-gauge galvanised steel 90° corner accessories designed for use with the WMHD Series heavy duty wire mesh cable tray system — allowing cable tray runs to change direction horizontally at 90° in industrial, mining and heavy commercial electrical installations across South Africa. Built to match the full structural strength of the heavy duty wire mesh tray range, these horizontal bends maintain the open-weave wire mesh construction throughout every corner — preserving the maximum ventilation, cable accessibility and flexible routing benefits of the WMHD system at every direction change, even in the most demanding environments. Manufactured to match the WMHD Series straight tray dimensions exactly — 75mm tray height with a 50x50mm wire mesh pitch — available in 9 widths from 100mm up to 1000mm to suit any installation requirement. Typical Applications:• Mining and minerals processing plant cable tray corners• Industrial factory and manufacturing plant installations• Petrochemical and oil & gas cable tray direction changes• Power station and substation cable management systems• Data centre high-density cable tray installations• Any heavy industrial installation where cable runs change direction horizontally at 90° Compatible With:• Heavy Duty Wire Mesh Cable Tray (WMHD Series) — straight lengths• Heavy Duty Wire Mesh 4-Way Cross Pieces (WMHD Series) Available in 9 sizes:• WMHD100H — 100mm wide x 75mm deep• WMHD150H — 150mm wide x 75mm deep• WMHD200H — 200mm wide x 75mm deep• WMHD300H — 300mm wide x 75mm deep• WMHD400H — 400mm wide x 75mm deep• WMHD500H — 500mm wide x 75mm deep• WMHD600H — 600mm wide x 75mm deep• WMHD800H — 800mm wide x 75mm deep• WMHD1000H — 1000mm wide x 75mm deep Priced per piece. Contact us for bulk and contractor pricing. Also available in our Wire Mesh Cable Tray range:→ Heavy Duty Wire Mesh Cable Tray — straight lengths, 100mm–1000mm→ Heavy Duty Wire Mesh 4-Way Cross Piece — junction pieces, 100mm–1000mm→ Medium Duty Wire Mesh Horizontal Bend — 90° corners, 50mm–600mm, 50mm deep→ Medium Duty Wire Mesh Cable Tray — straight lengths, 50mm–600mm Order online with fast nationwide delivery across South Africa.Contact us for contractor and bulk pricing —sales@mapleleafelectrical.co.za or 064 086 3515. STOCK CODE WIDTH (mm) HEIGHT (mm) WMHD100H 100 75 WMHD150H 150 75 WMHD200H 200 75 WMHD300H 300 75 WMHD400H 400 75 WMHD500H 500 75 WMHD600H 600 75 WMHD800H 800 75 WMHD1000H 1000 75
R 248.53 - R 746.80
-

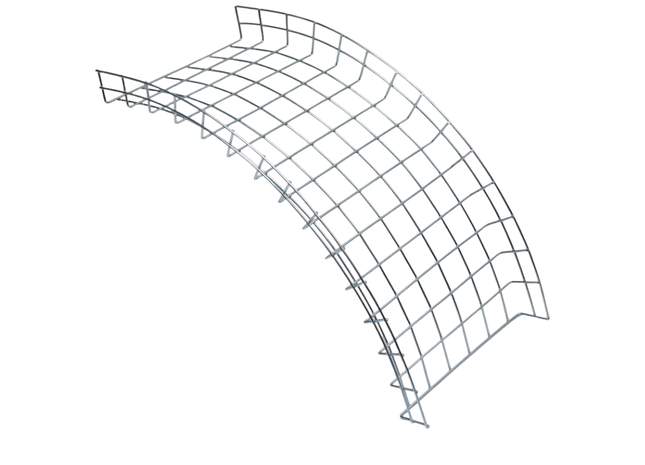

Strut Africa Medium Duty Wire Mesh External Bend
STOCK CODE WIDTH (mm) HEIGHT (mm) WMM50E 50 50 WMM100E 100 50 WMM150E 150 50 WMM200E 200 50 WMM300E 300 50 WMM400E 400 50 WMM500E 500 50 WMM600E 600 50
R 109.87 - R 298.82
-
Strut Africa Heavy Duty Wire Mesh External Bend
STOCK CODE WIDTH (mm) HEIGHT (mm) WMHD100E 100 75 WMHD150E 150 75 WMHD200E 200 75 WMHD300E 300 75 WMHD400E 400 75 WMHD500E 500 75 WMHD600E 600 75 WMHD800E 800 75 WMHD1000E 1000 75
R 248.53 - R 746.80
-

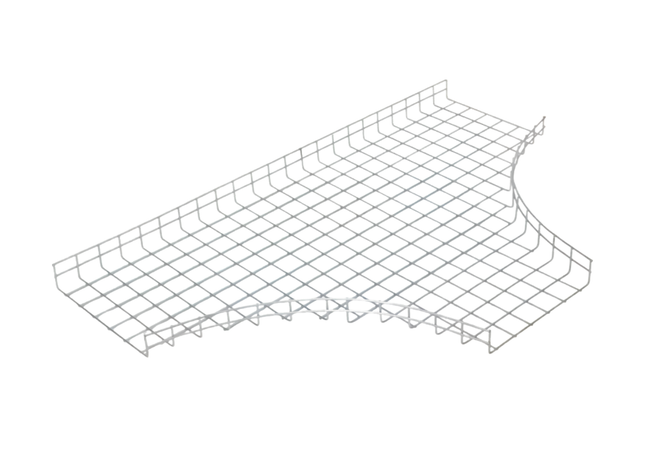

Strut Africa Medium Duty Wire Mesh Tee
STOCK CODE WIDTH (mm) HEIGHT (mm) WMM50T 50 50 WMM100T 100 50 WMM150T 150 50 WMM200T 200 50 WMM300T 300 50 WMM400T 400 50 WMM500T 500 50 WMM600T 600 50
R 234.33 - R 798.66
-
Strut Africa Heavy Duty Wire Mesh Tee
STOCK CODE WIDTH (mm) HEIGHT (mm) WMHD100T 100 75 WMHD150T 150 75 WMHD200T 200 75 WMHD300T 300 75 WMHD400T 400 75 WMHD500T 500 75 WMHD600T 600 75 WMHD800T 800 75 WMHD1000T 1000 75
R 485.98 - R 2,207.33
-
Strut Africa Medium Duty Wire Mesh Internal Bend
STOCK CODE WIDTH (mm) HEIGHT (mm) WMM50I 50 50 WMM100I 100 50 WMM150I 150 50 WMM200I 200 50 WMM300I 300 50 WMM400I 400 50 WMM500I 500 50 WMM600I 600 50
R 109.87 - R 298.82
-

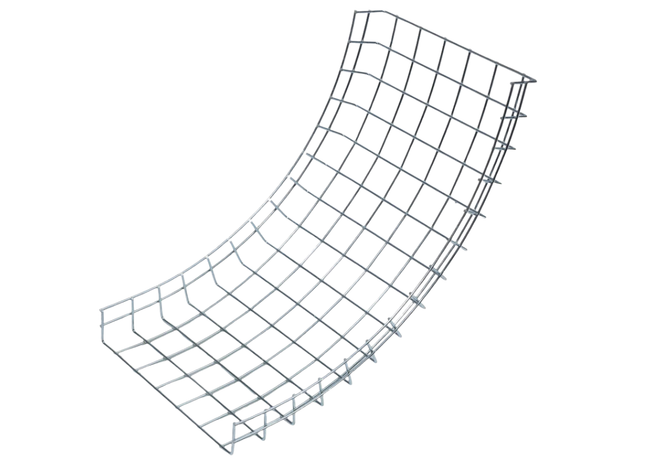

Strut Africa Heavy Duty Wire Mesh Internal Bend
STOCK CODE WIDTH (mm) HEIGHT (mm) WMHD100I 100 75 WMHD150I 150 75 WMHD200I 200 75 WMHD300I 300 75 WMHD400I 400 75 WMHD500I 500 75 WMHD600i 600 75 WMHD800I 800 75 WMHD1000I 1000 75
R 248.53 - R 746.80
-
Strut Africa Medium Duty Wire Mesh 4-Way Cross Piece | 50mm–600mm | 50mm Deep
Medium Duty Wire Mesh 4-Way Cross Pieces (WMM Series) are junction accessories designed for use with the WMM Series medium duty wire mesh cable tray system — allowing cable tray runs to branch in four directions from a single cross junction point for neat, professional cable distribution in any direction. An essential accessory for any wire mesh cable tray installation where cable runs intersect at 90°, the 4-way cross piece eliminates the need for cutting or modifying straight tray sections at junction points — saving installation time and maintaining a clean, professional finish throughout the cable management system. Manufactured to match the WMM Series straight tray dimensions exactly — 50mm tray height with a 50x50mm wire mesh pitch — available in 8 widths from 50mm up to 600mm to suit any installation requirement. Typical Applications:• Data centre and server room cable distribution points• Commercial office above-ceiling cable management• Retail and hospitality cable tray installations• Industrial cable management systems using WMM Series trays• Any installation where cable runs branch in 4 directions Compatible With:• Medium Duty Wire Mesh Cable Tray (WMM Series) — straight lengths• Medium Duty Wire Mesh Horizontal Bends (WMM Series) Available in 8 sizes:• WMM504W — 50mm wide x 50mm deep• WMM1004W — 100mm wide x 50mm deep• WMM1504W — 150mm wide x 50mm deep• WMM2004W — 200mm wide x 50mm deep• WMM3004W — 300mm wide x 50mm deep• WMM4004W — 400mm wide x 50mm deep• WMM5004W — 500mm wide x 50mm deep• WMM6004W — 600mm wide x 50mm deep Priced per piece. Contact us for bulk and contractor pricing. Also available in our Wire Mesh Cable Tray range:→ Medium Duty Wire Mesh Cable Tray — straight lengths, 50mm–600mm→ Medium Duty Wire Mesh Horizontal Bend — 90° corners, 50mm–600mm→ Heavy Duty Wire Mesh 4-Way Cross Piece — 100mm–1000mm, 75mm deep→ Heavy Duty Wire Mesh Cable Tray — straight lengths, 100mm–1000mm Order online with fast nationwide delivery across South Africa.Contact us for contractor and bulk pricing —sales@mapleleafelectrical.co.za or 064 086 3515. STOCK CODE WIDTH (mm) HEIGHT (mm) WMM504W 50 50 WMM1004W 100 50 WMM1504W 150 50 WMM2004W 200 50 WMM3004W 300 50 WMM4004W 400 50 WMM5004W 500 50 WMM6004W 600 50
R 313.03 - R 935.65
-
Strut Africa Heavy Duty Wire Mesh 4-Way Cross Piece | 100mm–1000mm | 75mm Deep
Heavy Duty Wire Mesh 4-Way Cross Pieces (WMHD Series) are heavy-gauge galvanised steel junction accessories designed for use with the WMHD Series heavy duty wire mesh cable tray system — allowing cable tray runs to branch in four directions from a single cross junction point in industrial, mining and heavy commercial installations. Built to match the structural strength of the heavy duty wire mesh tray range, these 4-way cross pieces are the correct junction accessory for demanding environments where medium duty accessories are insufficient — providing the same open-weave ventilation and cable accessibility benefits of the WMHD system at every junction point throughout the installation. Manufactured to match the WMHD Series straight tray dimensions exactly — 75mm tray height with a 50x50mm wire mesh pitch — available in 9 widths from 100mm up to 1000mm to suit any installation requirement. Typical Applications:• Mining and minerals processing plant cable distribution points• Industrial factory and manufacturing plant cable management• Petrochemical and oil & gas cable tray installations• Power station and substation cable distribution• Data centre high-density cable management systems• Any heavy industrial installation where cable runs branch in 4 directions Compatible With:• Heavy Duty Wire Mesh Cable Tray (WMHD Series) — straight lengths• Heavy Duty Wire Mesh Horizontal Bends (WMHD Series) Available in 9 sizes:• WMHD1004W — 100mm wide x 75mm deep• WMHD1504W — 150mm wide x 75mm deep• WMHD2004W — 200mm wide x 75mm deep• WMHD3004W — 300mm wide x 75mm deep• WMHD4004W — 400mm wide x 75mm deep• WMHD5004W — 500mm wide x 75mm deep• WMHD6004W — 600mm wide x 75mm deep• WMHD8004W — 800mm wide x 75mm deep• WMHD10004W — 1000mm wide x 75mm deep Priced per piece. Contact us for bulk and contractor pricing. Also available in our Wire Mesh Cable Tray range:→ Heavy Duty Wire Mesh Cable Tray — straight lengths, 100mm–1000mm→ Heavy Duty Wire Mesh Horizontal Bend — 90° corners, 100mm–1000mm→ Medium Duty Wire Mesh 4-Way Cross Piece — 50mm–600mm, 50mm deep→ Medium Duty Wire Mesh Cable Tray — straight lengths, 50mm–600mm Order online with fast nationwide delivery across South Africa.Contact us for contractor and bulk pricing —sales@mapleleafelectrical.co.za or 064 086 3515. STOCK CODE WIDTH (mm) HEIGHT (mm) WMHD1004W 100 75 WMHD1504W 150 75 WMHD2004W 200 75 WMHD3004W 300 75 WMHD4004W 400 75 WMHD5004W 500 75 WMHD6004W 600 75 WMHD8004W 800 75 WMHD10004W 1000 75
R 643.74 - R 2,471.86
-

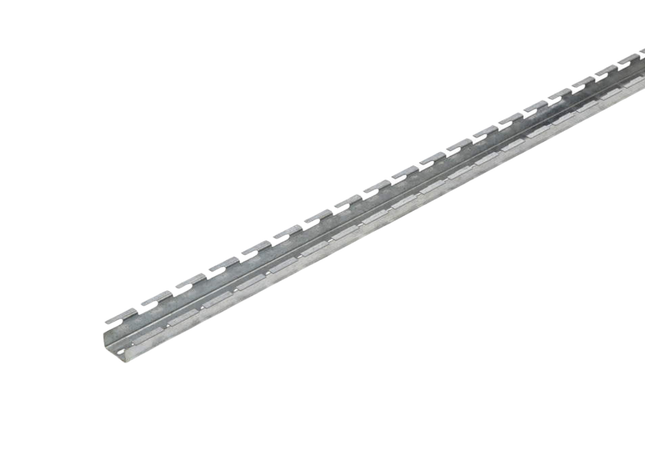

Strut Africa Clip-On Support Channel
Horizontal or vertical installation No saddles required Bend over tabs to secure 1200mm standard length Finish - pre-galvanised SKU: WMCOS
R 87.91
