Plug In Timing Devices
-

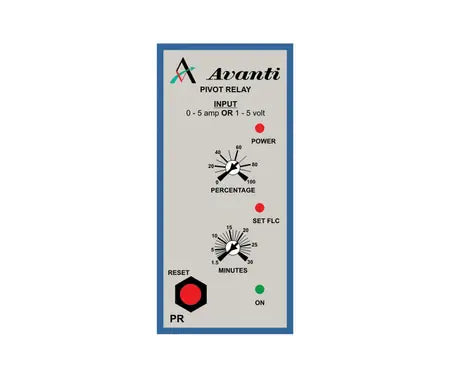

Pivot Relay
MODEL A - PR PRODUCT Pivot Relay DESCRIPTION OF OPERATION On application of power the relay energises. If the pivot draws less than the pre-set current setting, the relay will open after the time set on the over-ride timer. On shut-down the unit can be reset with the button provided. This unit is used to switch off the pump preventing over-watering shouldthe pivot stand in one position. The “PR” can operate on a 1-5 Volt or 1-5Amp sensor. The pins 5,6 + 7 are used to select either the voltage or current sensing. VOLTAGE 30VAD/DC 110V 230V, 400V AC
R 1,253.41
-
Liquid Level Relay

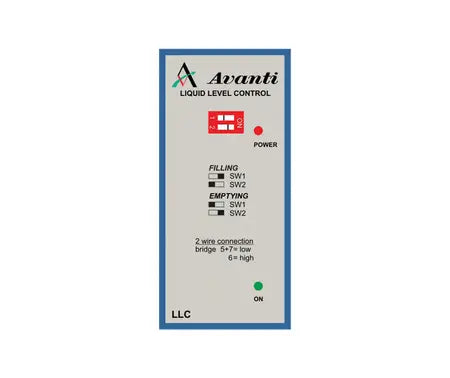

MODEL A - LLC PRODUCT Liquid Level Control “Filling & Emptying” DIP Switch Selectable DESCRIPTION OF OPERATION Used in conjunction with 3 conductive probes connected to terminals 5 (high), 6 (middle/low) and 7 (bottom/ common). Filling: When liquid drops below the middle probe, the relay energises. The relay remains energised until the level reaches the high level probe and then de-energises. Emptying: When the liquid rises above the high probe, the relay energises. The relay de-energises when the liquid falls below the middle probe. Sensitivity - 50Ώ Use “AEL” Aquaman hanging probes. VOLTAGE 230V, 400V AC
R 789.36
-
Pump Distance Control Unit

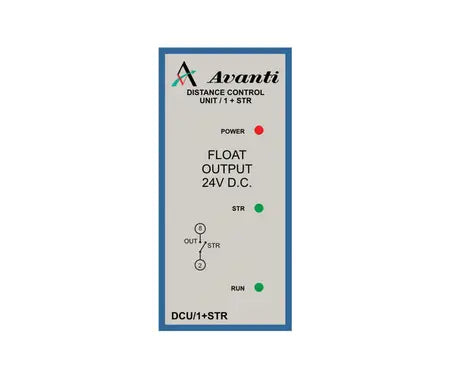

MODEL A-DCU PRODUCT Distance Control Unit DESCRIPTION OF OPERATION To control water levels in dams and reservoirs over long distances. Float Switch - 2 Wire control: When the float contact is closed between terminals 5 + 7, the relay is energised - Open to de-energise. 2 Float Switch - 3 Wire control: Stop float - normally closed contact connected to terminals 6 + 7. Start Float - normally opens across terminals 5 + 6. Closing 5 + 6 energises the relay and remains energised until stop float opens contact between 6 + 7. Voltage on float terminals = 24V DC. Distance: Up to 4km long using 1.5mm copper wire cable. VOLTAGE 230V, 400V AC
R 1,026.17
-
Pump Protection Relay

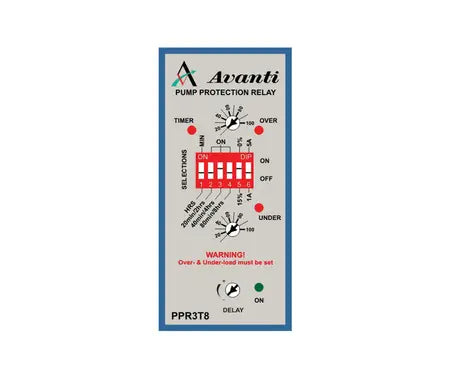

MODEL A-PPR - 1T8 - 23 PRODUCT Pump Protection Relay with phase Failure Protection and Underload Restart Timer Function - 230V DESCRIPTION OF OPERATION The PPR is designed for use on motors which require sensitive overload and underload protection and is particularly suitable for offering good protection on borehole and pump set motors. The PPR offers phase failure protection which is voltage or current dependent. On power up all 3 phases must be present and connected in the following manner. L1 is used for the PPR ON/ OFF control energising the unit on terminal 2. L2 connects to terminal 8. L3 connects to terminal 10. On single phase units, terminal 10 is connected to Neutral. During running the phase failure protection is dependent on the current transformer and if the PPR is set correctly, it will respond extremely fast. Both overload and underload have Set/Trip point LEDs with a common adjustable 0-10 second trip delay timer. There is fixed start-up delay of 5 seconds. A 50/5 CT, with a option of 3 connections (turns through CT), and 1 & 5 amp DIP switch selection provides various settings for motors 0.37kW to 7.5kW. For larger motors any size ring CT with a 5 amp secondary can b be used. The PPR is fitted with a underload re-start timer controlled by 4 DIP switches offering 6 time settings from 20 minutes to 8 hours (for borehole recovery). If the installation is fitted with a discharge valve and ammeter, the over and under setting combinations are numerous with loads very easy to simulate. VOLTAGE 230V AC
R 1,766.49
-
Delay On Timer
MODEL A - DOT TIME RANGES 0,3 - 6 seconds 3 - 60 seconds 0,3 - 6 minutes 3 - 60 minutes 0,3 - 6 hours 3 - 60 hours FUNCTION Delay - On Delay - On PLUS 2 Instant DPDT Contractors Interval Timer - Delay - Off with Power On Equal - Repeating Timer DESCRIPTION OF OPERATION When the power is applied the relay remains de-energised. After the pre-set time, the relay energises. Remove power to reset. Operation as per “DOT” timer, but on power up, two DPDT contacts switch immediately. Remove power to reset. When power is applied the relay energises. After the pre-set time, the relay de-energises. Remove power to reset. When power is applied the relay will switch ON and OFF continuously. The pre-set time is the same for both cycles. This cycling continues until power is removed. VOLTAGE 12V, 24V AC/DC 110V, 230V, 400V AC
R 674.54
-
Aquaman Electrode

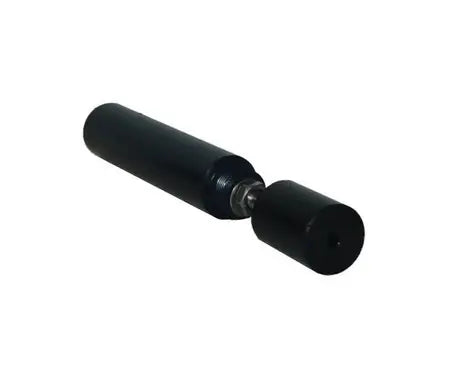

MODEL A - AEL PRODUCT Aquaman Electrode DESCRIPTION OF OPERATION Installation Instructions: 1) Strip PVC wire 25mm long 2) Feed cover/cap onto wire. Large threaded opening facing stripped end. 3) Connect copper wire through stud hole, between nut and washer. Do not wind around stud and ensure copper wire tip does not extend past edge of the washer. 4) Cover connection and exposed copper with compound. Ensure compound extends in the conical shape 25mm up the wire. 5) Screw on cap. Use extruded excess compound to seal wire inlet (Sealing compound supplied with probe).
R 171.03
-

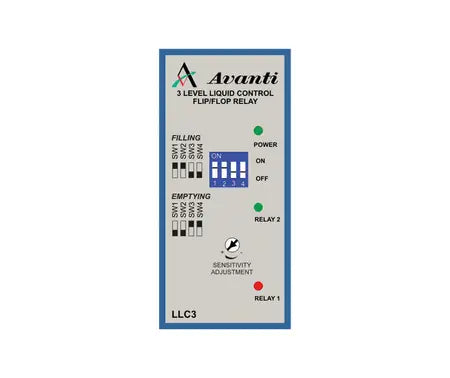

3 Level Liquid Level Relay
MODEL A - LLC3 PRODUCT 3 Level liquid Level Control “Filling & Emptying” with duty cycling DIP Switch Selectable DESCRIPTION OF OPERATION Used for control of water levels in tanks and sumps over short distances. The LLC3 controls 2 pump relays operated at different levels for “Duty” and “Standby” operation. The unit automatically alternates the pump relays between duty and standby using a built-in flip- flop action. There are 4 DIP switches available to select emptying or fillingFilling: Sw 1 + 2 - ON (up position); Sw 3 + 4 - OFF (down position) Emptying: Sw 1 + 2 - OFF(down position); Sw 3 + 4 - ON (up position) Avanti AEL probes: connected to the terminals:5 - “High;” 6 - “Middle;” 7 - “Low;” 8 - “Common” Filling: If the level is below probe 7 - “Low” both relays will energise and when the level reaches probe 5 - “High” both relays will de-energise. When the level drops below probe 6 - “Middle” relay 1 will energise and de-energise when the level reaches probe 5 - “High.” The next on cycle with probe 6 - “Middle” out of the water, relay 2 will energise (alternating). If the level continues to fall and goes below the probe 7 - “Low,” both pumps will energise and only de-energise when probe 5 - “High” is reached (all probes in the water). Emptying: When a rising level reaches probe 6 - “Middle,” relay 2 energises and de-energises when probe 7 - “Low” is reached. On the next rising level to probe 6 - “Middle” - relay 1 will energise (alternating). If the level continues to rise and probe 5 - “High” is reached, both relays will be energised (Duty & Standby) and when the level reaches probe 7 - “Low” both relays will de-energise. VOLTAGE 230V, 400V AC
R 1,101.52
-
Thermistor Relay

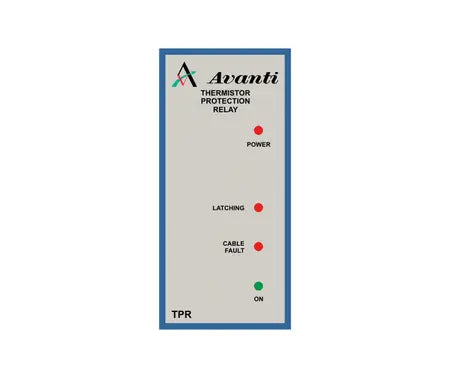

MODEL A - TPR PRODUCT Thermistor Protection Relay DESCRIPTION OF OPERATION Interfacing with PTC sensors as per DIN44081 (Thermistors) embedded in the motor windings, the TPR offers excellent motor protection. The LED’s indicate trip conditions for motor overheat, cable fault (short or open circuit) as well as the relays latch condition. Latching is enabled by bridging terminals 8 + 9. Open circuit voltage <=2,5V. Short circuit current= 1ma (Max). Maximum cold resistance of 1 to 6 sensors connected - 1500Ώ Triggering threshold 3100Ώ ± 10% Recovery threshold 1650Ώ ± 10% VOLTAGE 100V, 230V, 400V AC
R 911.35
-
Flip Flop Relay + Memory
MODEL A - FFRM PRODUCT Flip-Flop Relay with Memory DESCRIPTION OF OPERATION With power on terminals 2 + 10 a closure or pulse across terminals 5 + 7 will cause the relay to energise. A second pulse on terminals 5 + 7 will reset the relay to its normal state. After loss and re-power on terminals 2 + 10, the status of the relay, at that time, will not alter. Only after another closure or pulse on terminals 5 + 7 will the relay once again alter its state (MEMORY). VOLTAGE 10V, 30V AC/DC 10V, 230V, 400V AC
R 1,026.17
-
Flip-Flop Relay Pulse Control

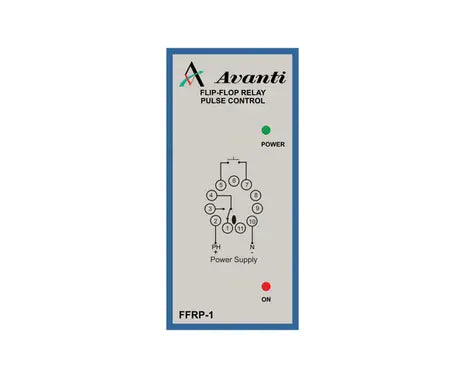

MODEL A - FFRP - 1 PRODUCT Flip - Flop Relay Pulse Controlled Single Pole DESCRIPTION OF OPERATION With power on terminals 2 + 10 and pulse on terminals 5 + 7 , the relay energises. A second pulse will de- energise the relay and it returns to its normal state. On loss of power on terminals 2 + 10; the relay, if energised, will de-energise and return to its original OFF state (NO MEMORY). VOLTAGE 10V, 30V AC/DC 10V, 230V, 400V AC
R 911.35
-

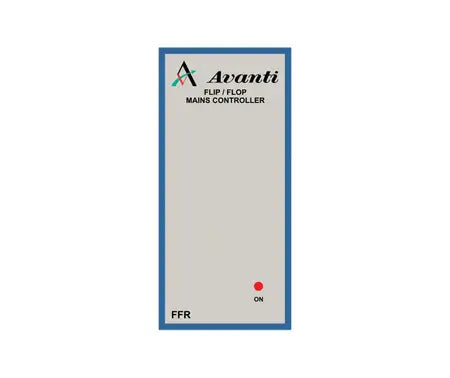

Mains Controlled Flip-Flop Relay
MODEL A-FFR PRODUCT Mains Controlled Flip-Flop Relay DESCRIPTION OF OPERATION Used for alternating two pumps for duty and stand- by operation. Applying power for 30 seconds or longer and then removing the power will cause the relay to alter its state. The relay will remain in this new state until the power is re-applied and once again removed when it will then return to the initial position. VOLTAGE 10V, 30V AC/DC 10V, 230V, 400V AC
R 1,454.34
-

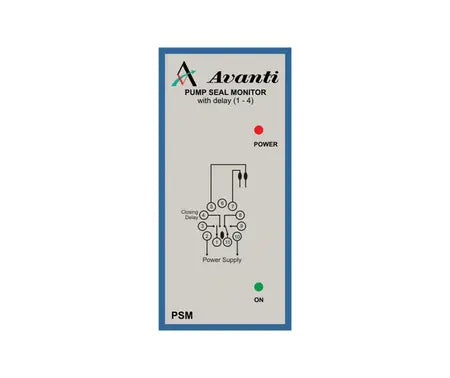

Pump Seal Monitor
MODEL A-PSM PRODUCT Pump Seal Monitor DESCRIPTION OF OPERATION Designed for use on submersible pump motors incorporating a built-in oil bath. The relay energises on application of power if water enters the bath through a faulty pump seal, the relay de- energises. VOLTAGE 230V, 400V AC
R 1,044.11
-
2 Pump Distance Control Unit

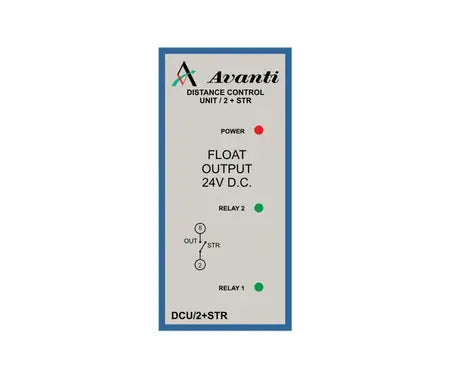

MODEL A-DCU / 2 PRODUCT 2 Pump Distance Control Unit DESCRIPTION OF OPERATION To control water levels in sumps, dams, tanks, etc. Operation is the same as the normal DCU but this unit can control 2 pumps operating at different levels. 3 Float switch (24V DC) - 4 Wire control: Stop float - normally closed contact connected to terminals 6 + 7. First start float - normally open connected to terminals 5 + 6. Second start float - normally open connected to terminals 4 + 6. Closing 5 + 6 (1st start float) will energise relay No. 1 and closing 4 + 6 (2nd start float) will energise relay No.2. Both start relays will remain energised until the stop float opens between terminals 6 + 7. This system is used for “Duty Pump” and “Stand- by Pump” applications. Where only one pump with an alarm is required, relay No.1 is used for the pump and relay No. 2 for the alarm. Where 2 pumps and alarm are required, a normal DCU can be used for the alarm operation. If this system is used, a seperate float must be used dedicated to this DCU. The interconnection of the two 24 Volt float outputs of the DCU/2 and DCU must be avoided at all times. VOLTAGE 230V, 400V AC
R 1,447.16
-
3Phase Pump Protection Relay
MODEL A-PPR - 3T8 - 40 PRODUCT Pump Protection Relay with phase Failure Protection and Underload Restart Timer Function - 230V DESCRIPTION OF OPERATION The PPR is designed for use on motors which require sensitive overload and underload protection and is particularly suitable for offering good protection on borehole and pump set motors. The PPR offers phase failure protection which is voltage or current dependent. On power up all 3 phases must be present and connected in the following manner. L1 is used for the PPR ON/ OFF control energising the unit on terminal 2. L2 connects to terminal 8. L3 connects to terminal 10. On single phase units, terminal 10 is connected to Neutral. During running the phase failure protection is dependent on the current transformer and if the PPR is set correctly, it will respond extremely fast. Both overload and underload have Set/Trip point LEDs with a common adjustable 0-10 second trip delay timer. There is fixed start-up delay of 5 seconds. A 50/5 CT, with a option of 3 connections (turns through CT), and 1 & 5 amp DIP switch selection provides various settings for motors 0.37kW to 7.5kW. For larger motors any size ring CT with a 5 amp secondary can b be used. The PPR is fitted with a underload re-start timer controlled by 4 DIP switches offering 6 time settings from 20 minutes to 8 hours (for borehole recovery). If the installation is fitted with a discharge valve and ammeter, the over and under setting combinations are numerous with loads very easy to simulate. VOLTAGE 400V AC
R 1,766.49
-
Frequency Monitor

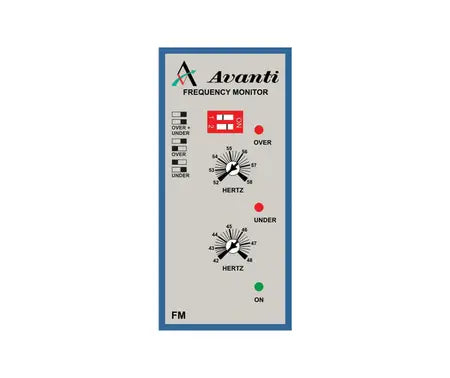

MODEL A-FM PRODUCT Frequency Monitor 42-58Hz Over, Under & Window Switch selectable DESCRIPTION OF OPERATION When power is applied with terminal 6 + 7 linked the relay energises immediately ignoring frequency conditions for ±10 seconds. Without link 6 + 7, the relay will only energise when the frequency is within the pre-set limits. The unit can be used for over or under conditions, as well as over and under window sensing limits. LED indication is offered for both over and under frequency faults. The relay de-energises if there is deviation from these set limits. The Hysteresis is set to 0,5Hz to prevent relay chatter during small deviations in frequency. VOLTAGE 230V, 400V AC
R 961.58
-
Electronic Overload Relay

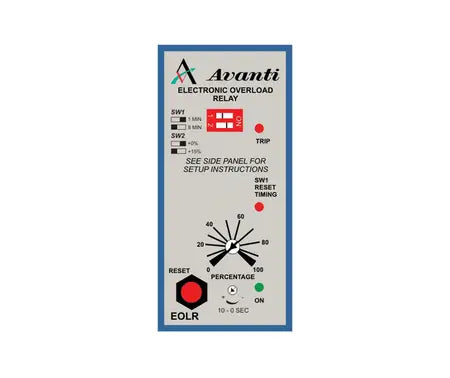

MODEL A-EOLR PRODUCT Electronic Overload Relay with Phase Failure Protection DESCRIPTION OF OPERATION Interfacing with 2 standard 5 amp current transformer units, the “EOLR” is designed for overload protection of motors. A start-up delay of 10 seconds is only initiated once load is monitored by the current transformers. A 15% above set point switch, together with a trip response timer of 0-10 seconds, makes the unit easy to set up. After trip condition, a timer prevents a rest function allowing the motor to cool down. This reset time switch selectable for either 1 or 8 minutes. The unit has a reset button as well as 2 terminals for remote reset, which must be linked should local resetting on the unit be required. There are 3 LED’s indicating “Relay-On,” “Trip” and “Reset Timing” VOLTAGE 100V, 230V, 400V AC
R 1,539.25
-
Current Window Comparitor

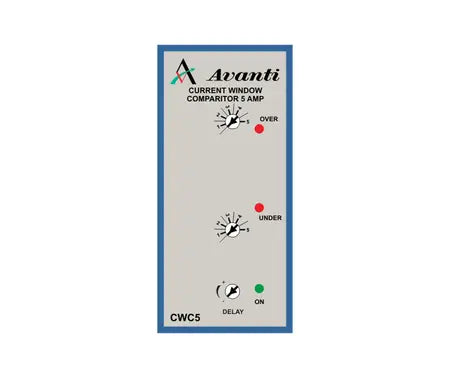

MODEL A-CWC PRODUCT Current Window Comparitor DESCRIPTION OF OPERATION The unit interfaces with 5 Amp secondary C.T’s. When power is applied the relay energises immediately, ignoring load conditions for 10 seconds. After the start- up delay, the relay will remain energised whilst the current is maintained between the pre-set over and under load limits. If the load rises or falls beyond the set limits the relay de-energises. A LED indicates if an over or under load condition has occurred. “Hysteresis” is set at 2%. A latch facility is available between terminals 8 + 9. Adjustable response delay 1 - 10 sec on request. VOLTAGE 100V, 230V, 400V AC
R 1,262.98
-
Current Monitor

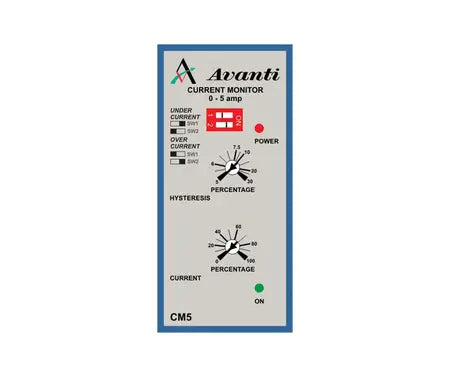

MODEL A-CM PRODUCT Current Monitor Over and Under Switch Selectable DESCRIPTION OF OPERATION The unit interfaces with 5 Amp secondary CT’s. When power is applied the relay energises immediately, ignoring load conditions for 10 seconds. The relay will de-energise when the load is over or under the pre-set value, depending on the switch selection. The difference between the trip and recovery level “Hysteresis” is adjustable between 5 and 30%. A latch facility is available between terminals 8 + 9. VOLTAGE 100V, 230V, 400V AC
R 1,120.65
-
Maple Leaf Electrical Phase Failure Phase Sequence Relay

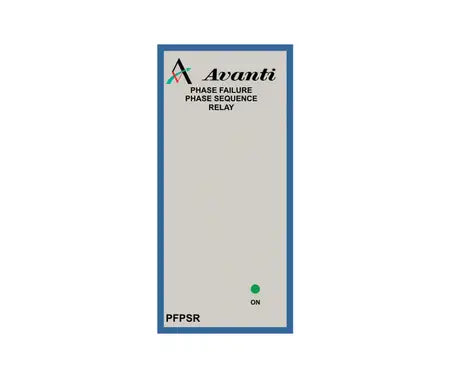

MODEL A-PFPSR PRODUCT Phase Failure Phase Sequence Relay DESCRIPTION OF OPERATION When power is applied the relay energises after approx. 1 second. The unit only operate if all 3 phases are present and in the correct sequence. The unit is also sensitive to excessive phase imbalance. The relay LED will illuminate when phases are in the correct sequence. If not, swap any 2 phases connected to terminals 5, 6 + 7 to obtain the correct phase sequence, which will then be confirmed by the illumination of the LED. VOLTAGE 230V AC 400V AC
R 778.60
-
Voltage Window Comparitor 3P

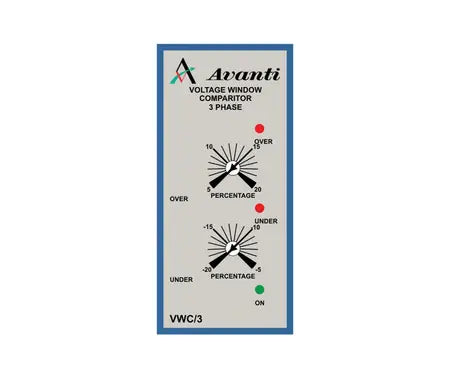

MODEL A-VWC / 3 PRODUCT Voltage Window Comparitor “Three Phase” DESCRIPTION OF OPERATION The unit derives its power from the monitored three phase supply. The relay is energised when the voltage is maintained between the over and under voltage set points. If the voltage rises above the over voltage set point, the relay de-energises. LED indication is provided for both conditions. The relay energises when the voltage recovers to within the 2% hysteresis band. A latch facility is between terminal 8 + 9. Latching is disabled for approx. 10 seconds at start-up. Note: For Motor Control this unit is NOT a Phase Failure Relay VOLTAGE 230V AC 400V AC
R 1,200.78
-

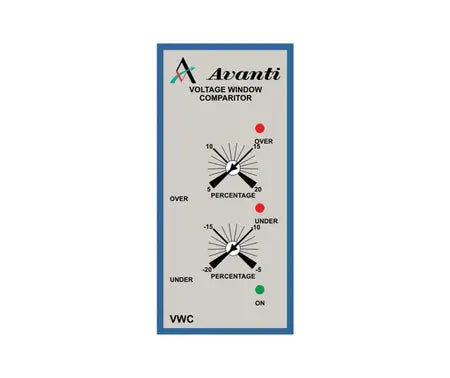

1PHASE Voltage Window Comparitor
MODEL A-VWC PRODUCT Voltage Window Comparitor “Single Phase” DESCRIPTION OF OPERATION The “VWC” monitors its own supply and responds to both over and under voltage. The relay is energised when the voltage remains between the over and under voltage pre- set thresholds. If the voltage rises above the over voltage set point or falls below the under set point the relay de- energises. LED indication is provided for both conditions. The relay energises when the voltage recovers to within the 2% hysteresis band. A latch facility is between terminals 8 + 9. Latching is disabled for approx. 10 seconds at start-up. VOLTAGE 12V, 24V AC 110V, 230V, 400V AC
R 1,162.51
-
Voltage Monitor

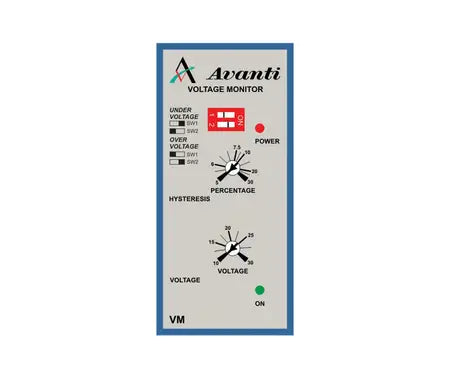

MODEL A-VM PRODUCT Voltage Monitor Over and Under Switch Selectable DESCRIPTION OF OPERATION The Unit monitors a separate supply connected to terminals 5 + 7. On power-up the relay energises, providing the monitored voltage on pins 5 + 7 is within the set limit, the relay will remain de- energised. Under voltage monitoring is selectable by SW1 and over voltage monitoring is selectable by SW2. The difference between the trip and recovery level “Hysteresis” is adjustable between 5 and 30%. A latch facility VOLTAGE 12V, 24, DC
R 1,082.38
-
One Shot Timer

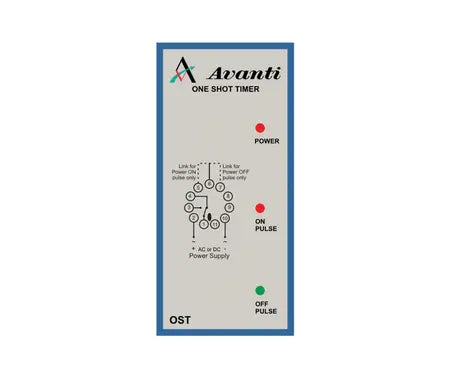

MODEL A-OST FUNCTION ONE SHOT TIMER DESCRIPTION OF OPERATION On power up with the terminals 5 + 6 linked, the relay will energise for a set period of 0,5 seconds (ON pulse). On power up with terminals 6 + 7 linked, the relay will not energise. Only after power is removed will the relay energise for 0,5 seconds (OFF pulse). A pulse for Power-ON and Power- OFF is possible by leaving terminals 5, 6 + 7 all disconnected (no links fitted). VOLTAGE 12V, 24V AC/DC 110V, 239V, 400V AC
R 706.84
-
Three Start Attempt Relay

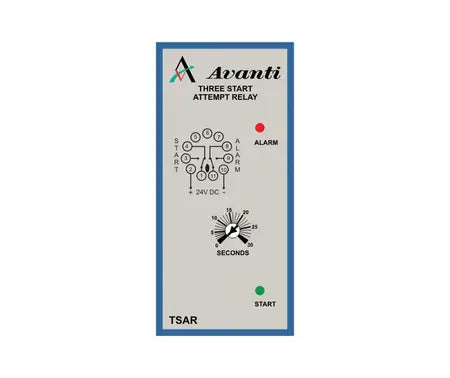

MODEL A-TSAR TIME RANGE 0 - 30 Seconds Other times on request FUNCTION Three Start Attempt Relay DESCRIPTION OF OPERATION To start generating sets up to maximum of 3 attempts. On power up the relay energises for the pre-set time. With a successful start the power must be removed. On failure to start the relay de-energises for the same pre-set time. The second and the third attempt will be made in the same manner. If failure persists after 3 attempts an alarm relay is energised. VOLTAGE 12V, 24, DC
R 902.98
