Plug In Timing Devices
-
Multi Range Remote Pot Timer
MODEL A-MRRPT TIME RANGE 10 MINUTES - 3 HOURS 40 MINUTES - 12 HOURS 20 MINUTES - 6 HOURS 80 MINUTES - 24 HOURS FUNCTION Multi-Range Timer with “Delay-On” or “Interval” function. For use with or without a remote POT. DESCRIPTION OF OPERATION Multi-Range Timer with “Delay-On” or “Interval” function. For use with or without a remote POT. Used mainly as an automatic STOP for irrigation pump starters. The remote POT, with pulse timing light and reset button, is fitted to a starter door providing time setting without opening starter. The “interval” timing function is selected for this operation. The unit is fitted with a Power, Pulse timing, Relay On and 4 Elapsed Time percentage lights. A Fine-Time Tuning setting knob is also available based on, the faster or slower the pulse, the shorter or longer the set time becomes. An optional external reset button can be fitted. If pushed, the timer is reset back to the present time. The timer can also be used together with a “FMA” flush mount assembly. This dispenses with Remote POT, and makes the percentage and flashing lights visible to the user. All settings are therefore done on the timer without any remote required. VOLTAGE 230V, 400V AC
R 1,315.60
-

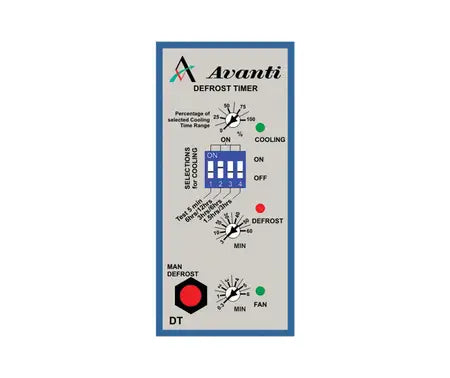

Defrost Timer
MODEL A-DT TIME RANGE Cooling 3 - 6 Hrs 6 - 12 Hrs Defrost 3 - 60 mins Fan 0,3 - 6 mins FUNCTION DEFROST TIMER DESCRIPTION OF OPERATION The unit has two cooling ranges which are selectable: 3-6 hours, and 6-12 hours. On power up, with terminals 5+6 linked, the timer starts the cooling cycle. After a 0,3 - 6 Minute pause, the fan operation starts. The cooling duration is set for a time :3-12 hours. After the set cooling time, the defrost cycle starts, which can be set for a duration of 3-60 minutes. During this cycle the fan control is also switched off, after the defrost cycle has elapsed, the cooling cycle restarts, but without the fan operation. The fan will restart after the set period of 0,3 to 6 minutes. If the link between pins 5 + 6 is disconnected, the unit will remain in the cooling/fan mode. If reconnected the defrost cycle will once again be operational. Three LED’s indicate the status of either cooling, fan or defrost. VOLTAGE 12V, 24V, AC/DC 110V, 230V, 400V AC
R 1,091.95
-
Interval Reset Timer
MODEL (Pulse Reset) A-IRT (Hold Reset) TIME RANGES 0,3 - 6 SECONDS 3 - 60 SECONDS 0,3 - 6 MINUTES 3 - 60 MINUTES 0,3 - 6 HOURS 3- 60 HOURS FUNCTION Interval Timer with Pulse Rest. A contact closes momentarily between pins 6 + 7 (eg: N/O Button) Interval Timer with Hold Reset. A contact closes and holds between pins 5 + 7 DESCRIPTION OF OPERATION Pulse Reset: The relay remains de-energised on power up until a reset occurs. When the pulse contact is closed the relay energises for the set time period then switches OFF irrespective of the length of the pulse. A string of pulses that are shorter than the set time period will reset the timer and the relay will remain energised until the last pulse occurs when the timing cycle will time-out and the relay will de- energise until the next reset pulse occurs. Hold Reset: The relay remains de-energised on power up until a reset occurs. When the reset contact closes the relay energises. When the reset contact opens the relay de-energises after the pre-set time. The relay stays de-energised until another reset occurs. If the hold contact is closed before the time period has elapsed the time cycle is cancelled and the relay will remain energised. VOLTAGE 12V 24V AC/AD 115V, 230V, 400V AC
R 1,007.03
-

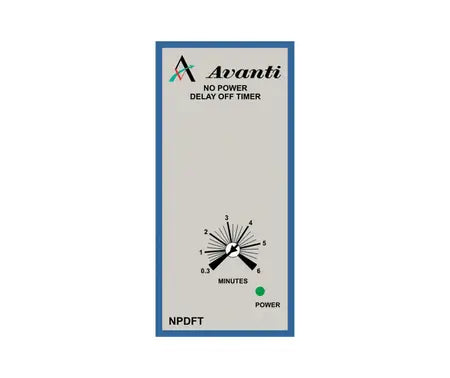

No Power Delay Off Timer
MODEL A - NPDFT TIME RANGES 0.3 - 6 SECONDS 3 - 60 SECONDS 0.3 - 6 MINUTES FUNCTION No power Delay-Off timer. DESCRIPTION OF OPERATION When power is applied the relay will switch ON. When the power is removed the relay remains ON until the pre-set time has been elapsed. Note: The timer must be energised for 50% of the preset time. VOLTAGE 12V 24V AC/DC 100V, 230V, 400V AC
R 958.00
-
Equal Repeating Timer
MODEL A - MTURT TIME RANGES Selectable 15 & 60 Seconds 8 & 64 Minutes FUNCTION Unequal - Repeating Timer with ON or OFF first. Link pins 6 + & for ON first. DESCRIPTION OF OPERATION When power is applied the relay will remain de-energised for the 1st pre-set time period, then switch OFF. This cycling continues until power is removed ( No link on 6 + 7). Each adjusting pot has 2 DIP switches, which can be configured to offer 4 time ranges each. Eg: Pot 1 = 15 sec Pot 2 = 64 min Extended time ranges available on order. VOLTAGE 12V 24V AC/DC 100V, 230V, 400V AC
R 1,008.23
-

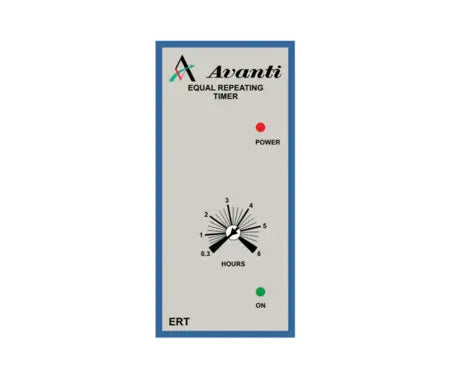

Equal Repeating Timer
MODEL A - ERT TIME RANGES 0,3 - 6 seconds 3 - 60 seconds 0,3 - 6 minutes 3 - 60 minutes 0,3 - 6 hours 3 - 60 hours FUNCTION Delay - On Delay - On PLUS 2 Instant DPDT Contractors Interval Timer - Delay - Off with Power On Equal - Repeating Timer DESCRIPTION OF OPERATION When the power is applied the relay remains de-energised. After the pre-set time, the relay energises. Remove power to reset. Operation as per “DOT” timer, but on power up, two DPDT contacts switch immediately. Remove power to reset. When power is applied the relay energises. After the pre-set time, the relay de-energises. Remove power to reset. When power is applied the relay will switch ON and OFF continuously. The pre-set time is the same for both cycles. This cycling continues until power is removed. VOLTAGE 12V, 24V AC/DC 110V, 230V, 400V AC
R 702.05
-

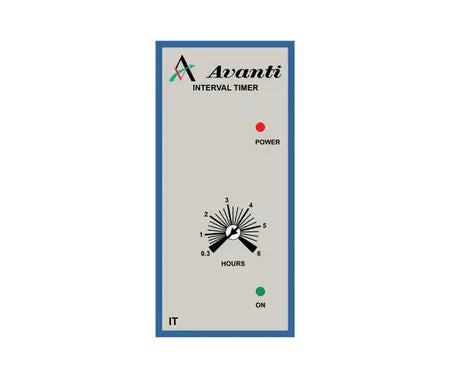

Interval Timer
MODEL A - IT TIME RANGES 0,3 - 6 seconds 3 - 60 seconds 0,3 - 6 minutes 3 - 60 minutes 0,3 - 6 hours 3 - 60 hours FUNCTION Delay - On Delay - On PLUS 2 Instant DPDT Contractors Interval Timer - Delay - Off with Power On Equal - Repeating Timer DESCRIPTION OF OPERATION When the power is applied the relay remains de-energised. After the pre-set time, the relay energises. Remove power to reset. Operation as per “DOT” timer, but on power up, two DPDT contacts switch immediately. Remove power to reset. When power is applied the relay energises. After the pre-set time, the relay de-energises. Remove power to reset. When power is applied the relay will switch ON and OFF continuously. The pre-set time is the same for both cycles. This cycling continues until power is removed. VOLTAGE 12V, 24V AC/DC 110V, 230V, 400V AC
R 693.68
-

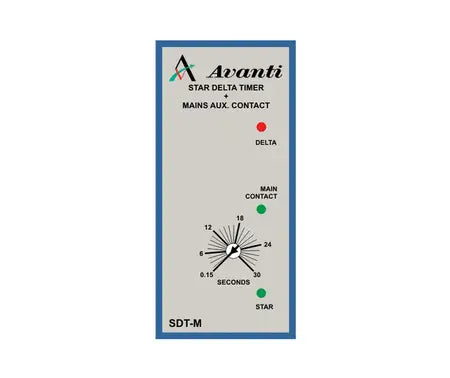

Star Delta Timer+Mains Control
MODEL A- SDT-M TIME RANGES 0 - 30 seconds. Other times on request. DESCRIPTION OF OPERATION Operation as per the normal SDT, but with the extra feature of 2 separate instantaneous change-over contacts. These contacts operate 40mS after the star contact closes. A green LED confirms the operation of these contacts. This feature offers the option of the “Star contactor” closing first followed by the “main contactor.” The second spare set of contacts can be used as a starter holding or interlocking contact. This may dispense with contacts on the star & main contactor, etc. VOLTAGE 12V, 24V AC/DC, 110V, 230V 400V AC
R 954.41
-

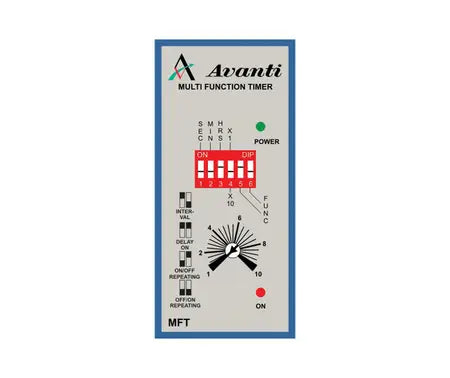

Multi Function Timer
MODEL A- MFT - Multi-range with Multi-Functions Time Ranges (Switch Selectable) 0,1 - 1 second. 0 - 10 seconds 0,1 - 1 minute. 0 - 10 minutes 0,1 - 1 hour. 0 - 10 hours Functions Delay - On Interval Equal Repeating FUNCTION Delay-On Interval Equal Repeating ON/OFF Equal Repeating OFF/ON DESCRIPTION OF OPERATION When power is applied the relay remains de-energised. After the pre-set time, the relay energises. Remove the power to reset. When power is applied the relay energises. After the pre-set time, the relay de-energises. Remove power to reset. When power is applied the relay switch ON and OFF continuously. The pre-set time is the same for both cycles. Remove the power to reset. When power is applied the relay will remain OFF, then switch ON and OFF continuously. The pre-set time is the same for both cycles. Remove power to reset.
R 968.76
-
Star Delta Timer
MODEL A-SDT 0 - 30 seconds Other Times on request FUNCTION Star-Delta Timer DESCRIPTION OF OPERATION When the power is applied a neutral contact closes between 1 + 4 for a “Star” contactor connection. After a pre-set time this contact opens and pauses in the (open) position. After 25mS the contact closes between 1 + 3 for a “Delta” connection. This contact remains in this closed position until power is removed VOLTAGE 12V, 24V AC/DC 110V, 230V, 400V AC
R 789.36
