MICROIDEA
MONITORING DEVICES
OVER/UNDER VOLTAGE RELAYS
LIQUID LEVEL RELAYS
• DIN RAIL.
• RoHS compliant.
• Material: Self extinguishing VO
Monitoring Relays
-

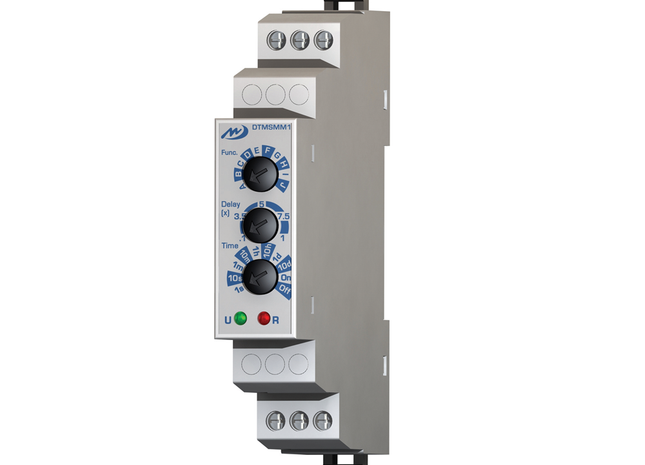

Multi-Function Voltage Din Timer
- Compact Size - 1 Module - Out 1 Contact SPDT- Time range 0,1s-10 days - 10 Function Selectable Universal Supply- Din Rail EN50.022 POWER SUPPLY:AC: 24V-240 Hz: 47-63 DC: 24V-110Max Consumption: 8,5VA Time Range: 0,1s-10 days Min S Impulse: 25ms OUTPUT RELAY:Contact: SPDTCurrent: 8AVoltage: 250VAC Temperature: Work:-10/+50 ̊C Electrical Strength: 4kV Protection Degree: IP40 Relative Humidity:95 RH% Weight: 65g Dimensions:98 x 17,5 x 64mm
R 485.88
-

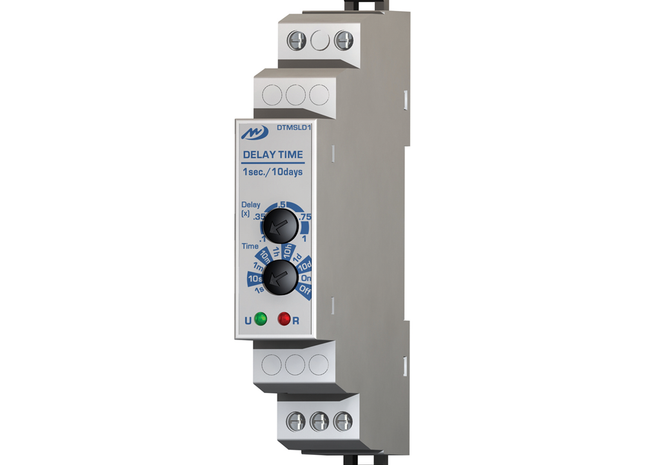

Timer (On Delay) 0.1s-10d Multi Volt Din Timer
- Compact Size - 1 Module - Out 1 Contact SPDT- Time range 0,1s-10 days - Energise after Delay Universal Supply- Din Rail EN50.022 POWER SUPPLY:AC: 24V-240 Hz: 47-63 DC: 24V-110Max Consumption: 8,5VA Time Range: 0,1s-10 days OUTPUT RELAY:Contact: SPDTCurrent: 8AVoltage: 250VAC Temperature: Work:-10/+50 ̊C Electrical Strength: 4kV Protection Degree: IP40 Relative Humidity:95 RH% Weight: 60g Dimensions: 98 x 17,5 x 64mm
R 463.45
-
Star Delta Timer 24VAC/DC, 115VAC
- Compact Size - 1 Module - Out 2 Contact SPDT- Time range: ST: 6-60 sec TR: 20-300 ms- Energise after delay - Universal Supply- Din Rail EN50.022 POWER SUPPLY:AC: 24V-115 Hz: 47-63 AC/DC: 24VMax Consumption: 3,9VA Time Range: ST: 6-60 sec TR:20-300ms OUTPUT RELAY (x2): Contact: SPDTCurrent: 8AVoltage: 250VAC Temperature: Work:-10/+50 ̊C Electrical Strength: 4kV Protection Degree: IP40 Relative Humidity: 95 RH% Weight: 65g Dimensions: 98 x 17,5 x 64mm
R 710.13
-
Under/Over Voltage Relay Phase Failure Phase Sequence
Compact Size 1 Module, Out 1 Contact SPDT, Adj Under: 7595% Vn, Adj Over: 105125% Vn, Time range 0,210 sec, Deenergise after delay, Din Rail EN50.022 POWER SUPPLY: AC: 3 x 400 Hz: 47-63 Max Consumption: 15VA OUTPUT RELAY: Contact: SPDT Current: 8A Voltage: 250VAC Temperature: Work:-10/+50 ̊C Electrical Strength: 4kV Protection Degree: IP40 Relative Humidity: 95 RH% Weight: 65g Dimensions: 98 x 17,5 x 64mm MVTGBD1S
R 967.27
-
Under/Over Voltage Relay Phase Failure Phase Sequence +N
Compact Size 1 Module, Out 1 Contact SPDT, Adj Under: 7595% Vn, Adj Over: 105125% Vn, Time range 0,210 sec, Deenergise after delay, N Loss, Din Rail EN50.022 POWER SUPPLY: AC: 3 x 400 +N Hz: 47-63 Max Consumption: 15VA OUTPUT RELAY: Contact: SPDT Current: 8A Voltage: 250VAC Temperature: Work:-10/+50 ̊C Electrical Strength: 4kV Protection Degree: IP40 Relative Humidity: 95 RH% Weight: 65g Dimensions: 98 x 17,5 x 64mm MVTGBD1N
R 967.27
-
Under/Over Voltage Relay 1 Phase 230VAC
Compact Size 1 Module, Out 1 Contact SPDT, Adj Under: 7595% Vn, Adj Over: 105125% Vn, Time range 0,210 sec, Deenergise after delay, Din Rail EN50.022 POWER SUPPLY: AC: 230V Hz: 47-63 Max Consumption: 15VA OUTPUT RELAY: Contact: SPDT Current: 8A Voltage: 250VAC Temperature: Work:-10/+50 ̊C Electrical Strength: 4kV Protection Degree: IP40 Relative Humidity: 95 RH% Weight: 60g Dimensions: 98 x 17,5 x 64mm MVMFBD1
R 861.12
-
Under/Over Voltage Relay 3 Phase 415VAC
Compact Size 1 Module, Out 1 Contact SPDT, Adj Under: 7595% Vn, Adj Over: 105125% Vn, Time range 0,210 sec, Deenergise after delay, Din Rail EN50.022 POWER SUPPLY: AC: 3 x 400V Hz: 47-63 Max Consumption: 3,9VA OUTPUT RELAY: Contact: SPDT Current: 8A Voltage: 250VAC Temperature: Work:-10/+50 ̊C Electrical Strength: 4kV Protection Degree: IP40 Relative Humidity: 95 RH% Weight: 60g Dimensions: 98 x 17,5 x 64mm MVTGBD1
R 913.45
-
Liquid Level Control Relay 230VAC
Out 1 Contact SPDT, For all conductive liquid, Automatic resetting, Adj. Sens. 2,5K to 100K, Din Rail EN50.022 POWER SUPPLY: AC: 230 Hz: 47-63 Max Consumption: 6,5VA Max Cable length: 100m Isolation Input Probe 3kV OUTPUT RELAY: Contact: SPDT Current: 8A Voltage: 250VAC Temperature: Work:-10/+50 ̊C Electrical Strength: 4kV Protection Degree: IP40 Relative Humidity: 95 RH% Weight: 120g Dimensions: 98 x 36 x 64mm LRMFII1
R 699.66
-
Liquid Level Control Relay 415VAC
Out 1 Contact SPDT, For all conductive liquid, Automatic resetting, Adj. Sens. 2,5K to 100K, Din Rail EN50.022 POWER SUPPLY: AC: 415 Hz: 47-63 Max Consumption: 6,5VA Max Cable length: 100m Isolation Input Probe 3kV OUTPUT RELAY: Contact: SPDT Current: 8A Voltage: 250VAC Temperature: Work:-10/+50 ̊C Electrical Strength: 4kV Protection Degree: IP40 Relative Humidity: 95 RH% Weight: 120g Dimensions: 98 x 36 x 64mm LRMGII1
R 699.66
-
Star Delta Timer 24VAC/DC 230VAC
- Compact Size - 1 Module - Out 2 Contact SPDT- Time range: ST: 6-60 sec TR: 20-300 ms- Energise after delay - Universal Supply- Din Rail EN50.022 POWER SUPPLY:AC: 24V-240 Hz: 47-63 AC/DC: 24VMax Consumption: 3,9VA Time Range: ST: 6-60 sec TR: 20-300ms OUTPUT RELAY (x2): Contact: SPDTCurrent: 8AVoltage: 250VAC Temperature: Work:-10/+50 ̊C Electrical Strength: 4kV Protection Degree: IP40 Relative Humidity: 95 RH% Weight: 65g Dimensions: 98 x 17,5 x 64mm
R 710.13
