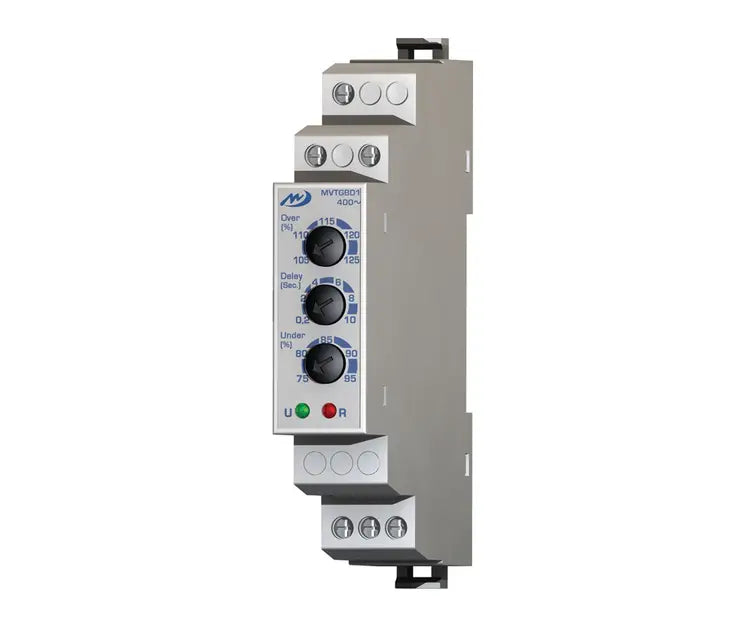

Under/Over Voltage Relay 1 Phase 230VAC

Description

Compact Size 1 Module, Out 1 Contact SPDT, Adj Under: 7595% Vn, Adj Over: 105125% Vn, Time range 0,210 sec, Deenergise after delay, Din Rail EN50.022

POWER SUPPLY:
AC: 230V Hz: 47-63 Max Consumption: 15VA

OUTPUT RELAY:

Contact: SPDT Current: 8A Voltage: 250VAC

Temperature: Work:-10/+50 ̊C

Electrical Strength: 4kV

Protection Degree: IP40

Relative Humidity: 95 RH% Weight: 60g

Dimensions: 98 x 17,5 x 64mm

MVMFBD1

Read more

Under/Over Voltage Relay 1 Phase 230VAC

Product form

Compact Size 1 Module, Out 1 Contact SPDT, Adj Under: 7595% Vn, Adj Over: 105125% Vn, Time range 0,210 sec,...

Free pickup in our shop(s)
Split your purchase with interest-free payments from R 143.52/m

Make your first payment today, then monthly over 2–6 months.

R 861.12 Incl. VAT

    We accept

    Visa Mastercard Apple Pay Google Pay Capitec Pay

    • Guaranteed secure & safe checkout.

      <p>Guaranteed <b>secure & safe</b> checkout.</p>
    • If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, Please contact us via email - sales@mapleleafelectrical.co.za or call-064 086 3515

    Description

    Compact Size 1 Module, Out 1 Contact SPDT, Adj Under: 7595% Vn, Adj Over: 105125% Vn, Time range 0,210 sec, Deenergise after delay, Din Rail EN50.022

    POWER SUPPLY:
    AC:     230V Hz: 47-63 Max Consumption: 15VA

    OUTPUT RELAY:

    Contact: SPDT Current: 8A Voltage: 250VAC

    Temperature: Work:-10/+50 ̊C

    Electrical Strength: 4kV

    Protection Degree: IP40

    Relative Humidity: 95 RH% Weight: 60g

    Dimensions: 98 x 17,5 x 64mm

    MVMFBD1

    Read more
