• Terminal Material: Polymide 6.6 Self extinguishing
• DIN rail mounting
• Transparent cover for viewing terminations
• EN60947-7-1 - Ipk 20kA - Ui500V (AC)
Distribution Blocks
-

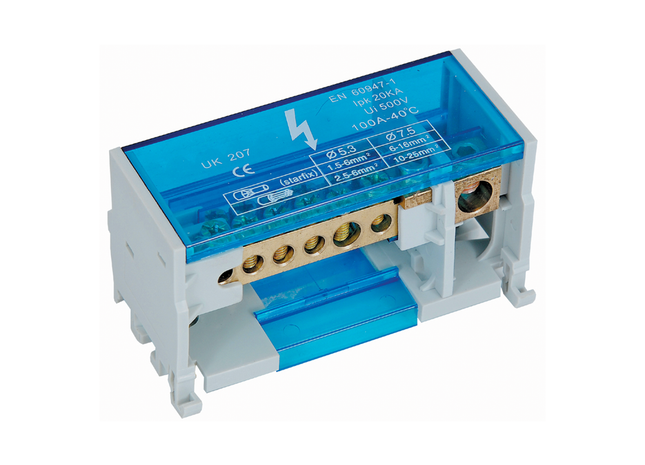

100A 2P Distribution Block - Din Rail Mount
FJ207 100A, 2 Pole, AC OnlyTerminals per pole: 1 x 25mm2; 3 x 16mm2 3 x 6mm2Dimensions L x D x W: 64 x 50 x 45mm
R 78.10
-

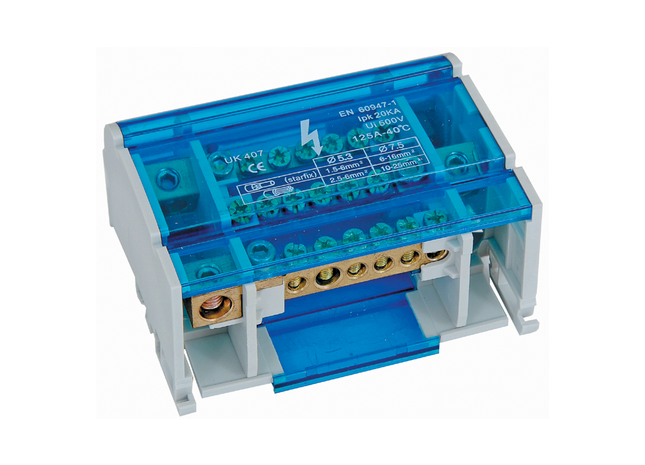

125A 4P Distribution Block - Din Rail Mount
FJ407 125A, 4 Pole, AC/DCTerminals per pole: 1 x 25mm2; 1 x 16mm2; 5 x 6mm2 Dimensions L x D x W: 64 x 50 x 85mm
R 150.70
-

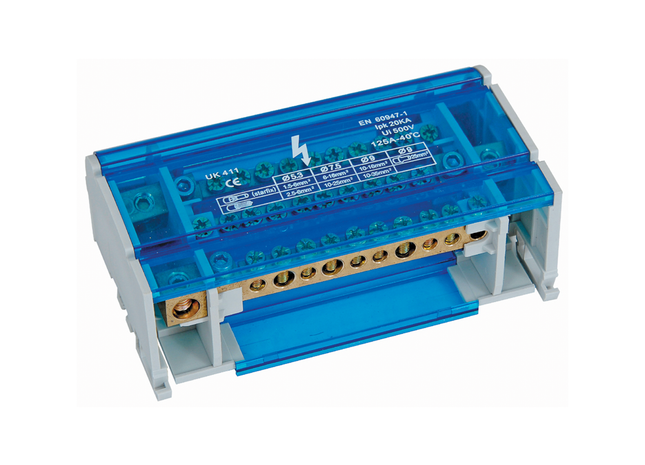

125A 4P Distribution Block - Din Rail Mount
FJ411 125A, 4 Pole, AC/DCTerminals per pole: 2 x 25mm2; 2 x 16mm2 7 x 6mm2Dimensions L x D x W: 100 x 50 x 85mm
R 209.30
-

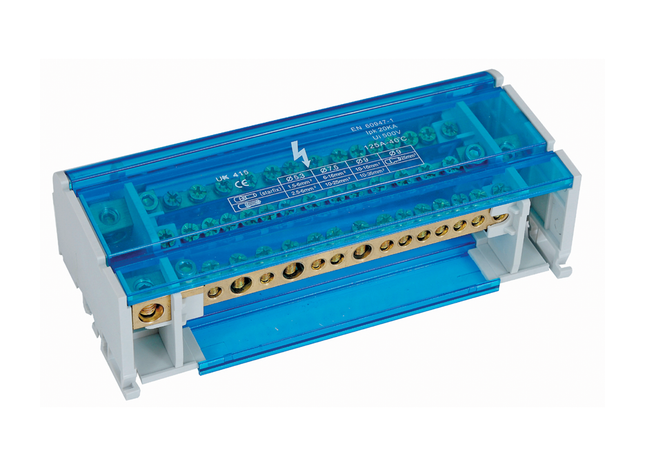

125A 4P Distribution Block - Din Rail Mount
FJ415 125A, 4 Pole, AC/DC Terminals per pole: 2 x 25mm2; 2 x 16mm2 11 x 6mm2Dimensions L x D x W: 129 x 50 x 85mm
R 267.90
-

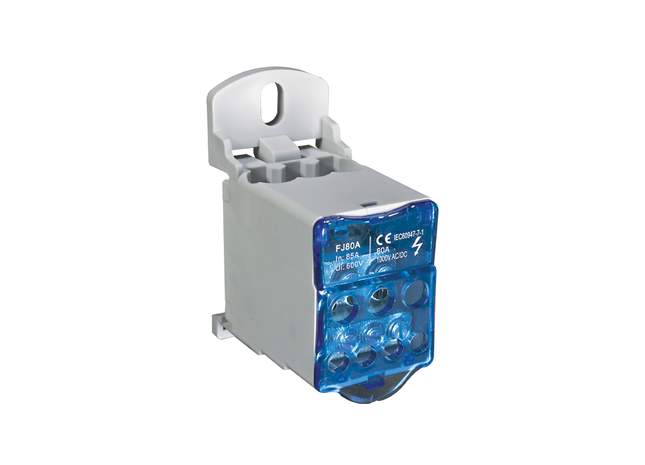

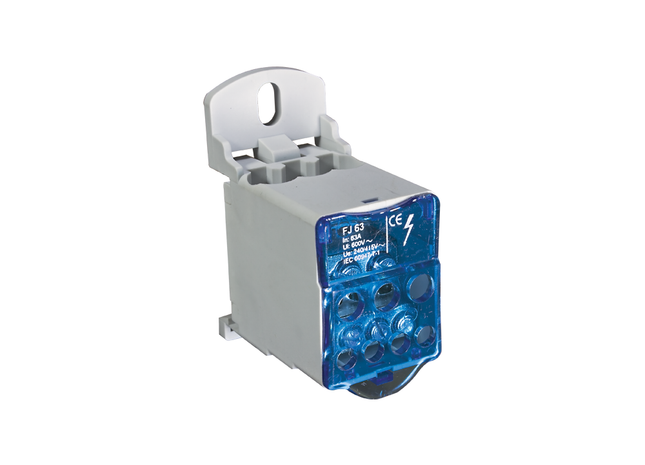

Multi Pole Distribution Block - Din Rail Or Bolt Down Mount
STOCK CODE AMP RATING INPUT (mm²) OUTPUT (mm²) DIMENSION (LxHxW) FJ63 63A 1 x 16mm ² 2 x 16mm² 3 x 6mm² 69 x46 x 30mm FJ80 80A 1 x 16mm ² 2 x 16mm² 3 x 6mm² 69 x 46 x 30mm FJ100 100A 1 x 35mm² 1 x 16mm² 6 x 16mm² 77 x 46 x 29mm FJ125 125A 1 x 35mm² 1 x 16mm² 6 x 16mm² 77 x 46 x 29mm FJ160 160A 1 x 70mm² 1 x 16mm² 6 x 16mm² 69 x 46 x 30mm FJ250 250A 1 x 120mm² 4 x 10mm² 5 x 16mm² 2 x 35mm² 96 x 50 x 49mm FJ300 300A 1 x 120mm² 4 x 10mm² 5 x 16mm² 2 x 35mm² 96 x 50 x 49mm FJ400 400A 1 x 120mm² 4 x 10mm² 5 x 16mm² 2 x 35mm² 96 x 50 x 49mm
R 92.09 - R 467.64
