Pump Controllers

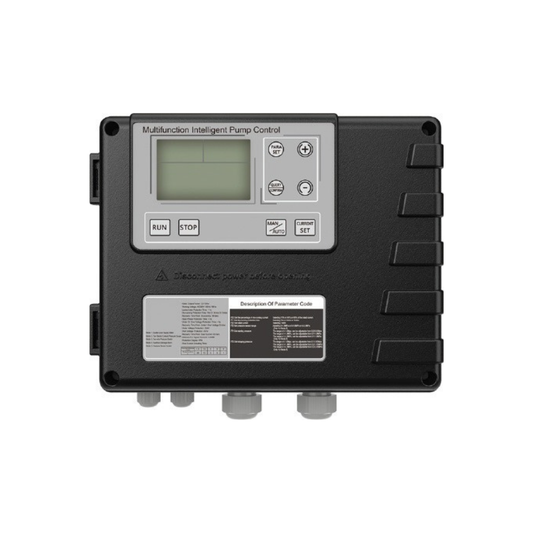

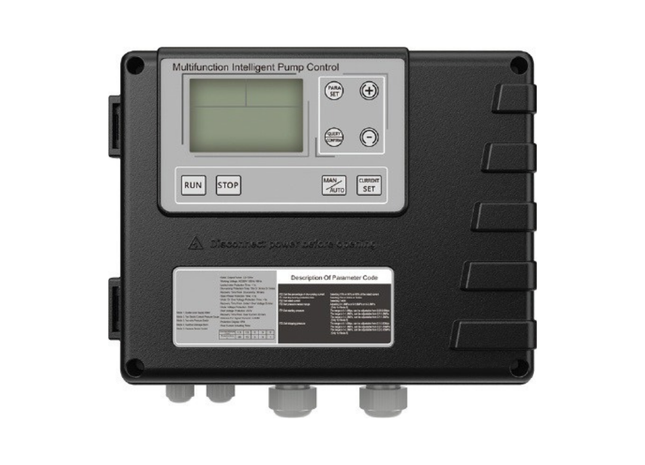

The HS-1P-LDP Single Phase Single Pump Controller is a feature-rich LCD pump control box designed for the automatic level, pressure control and protection of single-phase submersible borehole pumps, surface pumps and pipeline pumps across South African residential, agricultural and commercial water supply installations. Rated for pumps from 0.37kW up to 3kW on 220VAC single phase, the HS-1P-LDP offers 5 flexible working modes to suit any installation requirement — from float switch level control to pressure sensor control, liquid level sensor, mechanical pressure switch or electrical contact pressure gauge — making it one of the most versatile single-phase pump controllers available online in South Africa. The built-in LCD screen displays live voltage and current values, fault information and alarm status — giving the operator complete visibility of the pump system without requiring additional instrumentation. Combined with adjustable dry-run protection (sensor-free), under/over voltage protection, overcurrent protection, short circuit protection and a built-in MCB and start capacitor, the HS-1P-LDP provides comprehensive pump protection in a single compact enclosure. Why South African pump installers and plumbers choose the HS-1P-LDP:- 5 working modes — adapts to any pump installation type- Sensor-free dry-run protection — protects pump without   needing a separate dry-run sensor- Adjustable dry-run current threshold (70%, 80%, 85%) —   fine-tuned protection for different pump types- Adjustable dry-run protection time (10 sec, 3 min, 5 min)- LCD display — live voltage, current, fault and alarm data- Built-in MCB, contactor and start capacitor — all in one box- Auto/Manual control with one-key switching- IP54 rated — suitable for outdoor pump house installations- Suitable for motor cable runs up to 200 metres- 220VAC single phase — standard South African power supply ⚠️ Compatibility Note:The HS-1P-LDP is compatible with single-phase surface pumps, borehole pumps and pipeline pumps from 0.37kW to 3kW. It is NOT suitable for use with submersible sewage pumps. SKU: HS-1P-LDP   Power: 0.37 - 3kW Input Voltage: 220V Frequency : 50-60Hz Protection Rating: IP54 It is applicable for automatic level, pressure control and protection of single-phase submersible borehole pump and pipeline pump etc. started directly from 0.37-3KW 1Phase; Auto Manual control; Five working modes: with pressure sensor; with float switch; with liquid level sensor; with mechanical pressure switch and with electrical contact pressure gauge, and is suitable for various working conditions; Under/Over voltage protection; Over current protection; Short circuit protection; Built-in start capacitor is available. Built-in MCB; Current one key set automatic or manually: Dry-running protects acting time adjustable (10 seconds, 3mins, 5mins),suitable for various pump and working conditions; Dry-running current value adjustable (70%,80%,85% of rated current); HS-1P-LDP built-in AC contactor, suitable for submersible pump with 2.2-3KW and motor line within 200 meters: Dry-running protection with sensor free; LCD screen displays voltage, current value: LCD displays fault information and alarm; It can be configured according to user’s requirements. WILL WORK WITH ALL MCE PUMPS, EXCEPT SUBMERSIBLE PUMPS SKU: HS-1P-LDP

Read more less

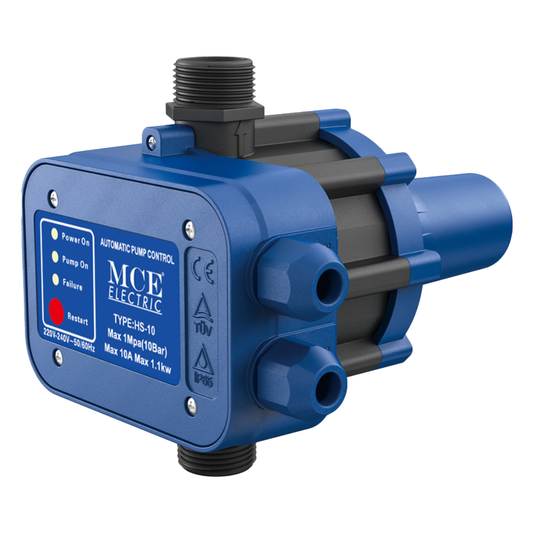

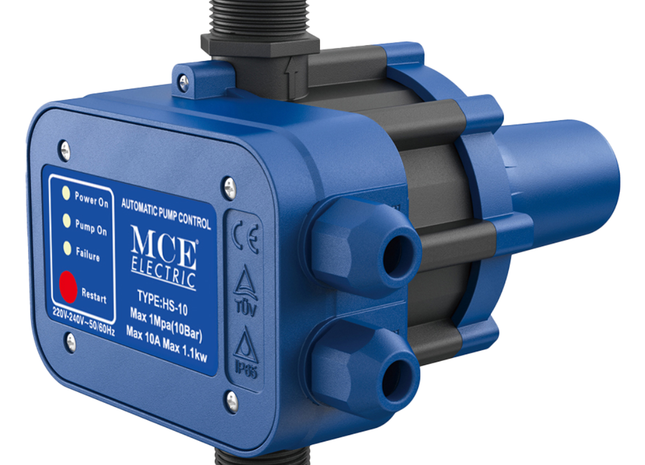

Hydrostat,  Input Voltage: 220-240V Starting Pressure: 1.5 Bar Frequency: 50-60Hz Max Working Pressure: 10 Bar Max Current: 10A Max Temperature Rating: 60°C Protection Rating: IP65 Connections: 1”  HS-10

Read more less

  10A 220V Auto Pump Controller 1.5 Bar + Gauge. Hydrostat, Input Voltage: 220-240V Starting Pressure: 1.5 Bar Frequency: 50-60Hz Max Working Pressure: 10 Bar Max Current: 10A Max Temperature rating: 60°C Protection Rating: IP65 Connections: 1” HS-13

Read more less

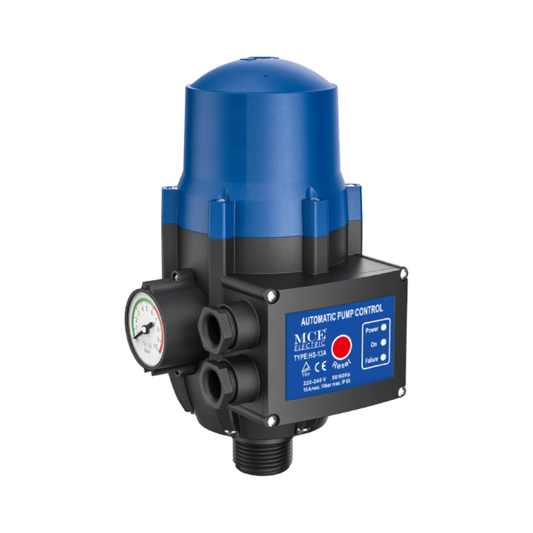

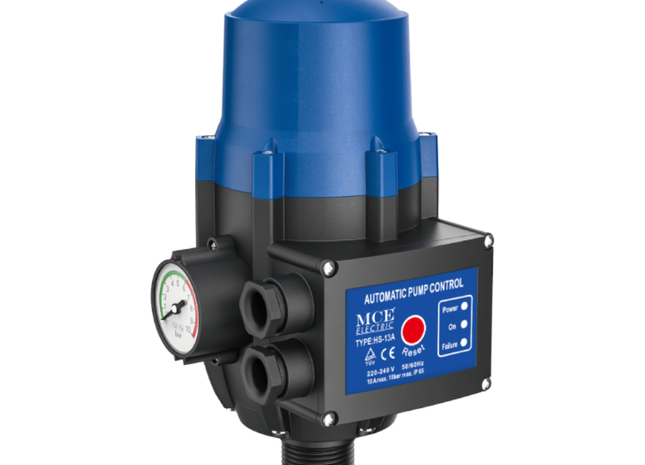

10A 220V Auto Pump Controller Adj. 1.5 – 3 Bar + Gauge. Hydrostat, Input Voltage: 220-240V Starting Pressure: 1.5-3 Bar Frequency: 50-60Hz Max Working Pressure: 10 Bar Max Current: 10A Max Temperature Rating: 60°C Protection Rating: IP65 Connections: 1”4 HS-13A

Read more less
