CABLE LADDERS

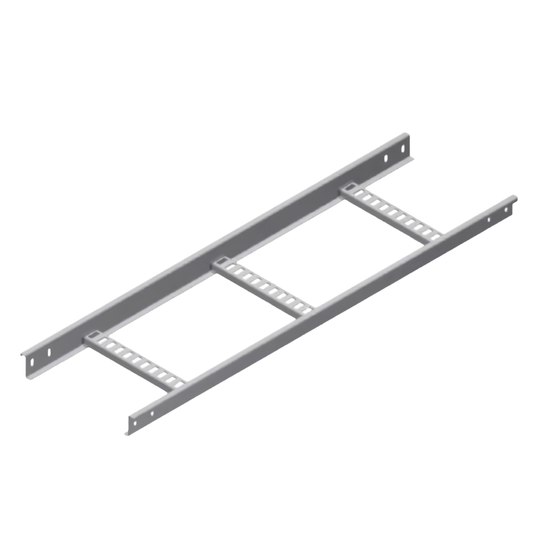

Medium Duty Cable Ladders (CL55 Series) are heavy-gauge steel cable support systems designed for the organised routing of heavy power cables, control cables and instrumentation cables in industrial, mining and commercial electrical installations across South Africa. Unlike cable trays — which have a solid or slotted bottom — cable ladders have an open rung design that provides maximum ventilation around cables, allowing them to run cooler and carry higher current loads than the same cable in a fully enclosed tray. This makes cable ladders the preferred choice for large power cable installations where heat dissipation is critical. Supplied in standard 3 metre lengths with a 55mm side rail height, the CL55 series is available in 6 widths from 100mm up to 500mm — suitable for everything from small control cable runs to large multi-cable power distribution installations. Cable Ladder vs Cable Tray — Which Do You Need?- Cable Ladder — Open rung design. Best for large power cables   requiring maximum ventilation and higher current ratings.   Preferred for industrial and mining installations.- Cable Tray — Solid or slotted bottom. Best for smaller cables,   data cables and installations requiring full cable support along   their entire length. Ideal for use in:- Mining and minerals processing plants- Industrial factories and manufacturing plants- Power stations and substations- Petrochemical and oil & gas installations- Large commercial buildings with heavy cable requirements- Any installation requiring open-air cable support for large   power conductors Available in 6 sizes (CL55 Series):- CL55100 — 100mm wide x 55mm high x 3m- CL55150 — 150mm wide x 55mm high x 3m- CL55200 — 200mm wide x 55mm high x 3m- CL55300 — 300mm wide x 55mm high x 3m- CL55400 — 400mm wide x 55mm high x 3m- CL55500 — 500mm wide x 55mm high x 3m Joining method: Standard cable ladder couplers and boltsPriced per 3m length. Contact us for bulk and contractor pricing. Also available in our Cable Management range:→ Light Duty Cable Trays (50mm–304mm, 12mm deep)→ Medium Duty Cable Trays (76mm–609mm, 38mm deep)→ Heavy Duty Cable Trays (76mm–609mm, 76mm deep) Order online with fast nationwide delivery across South Africa.Contact us for contractor and bulk pricing —sales@mapleleafelectrical.co.za or 064 086 3515. STOCK CODE WIDTH (mm)  HEIGHT (mm) CL55100 100 55 CL55150 150 55 CL55200 200 55 CL55300 300 55 CL55400 400 55 CL55500 500 55

Read more less

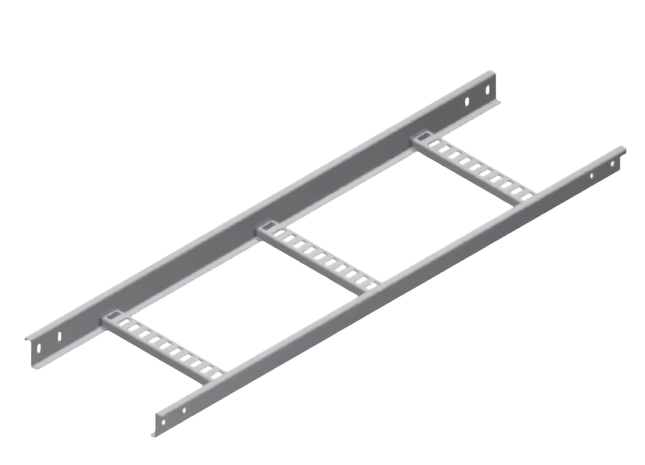

Heavy Duty Cable Ladders are thick-gauge steel open-rung cable support systems engineered for the most demanding cable management applications in mining, petrochemical, power generation and heavy industrial electrical installations across South Africa. With a deeper rail height and heavier gauge steel construction than the medium duty range, heavy duty cable ladders offer maximum load-bearing capacity and structural rigidity — designed for large power cable bundles, long unsupported spans and harsh environments where standard cable ladders are insufficient. Like all cable ladders, the open rung design provides maximum ventilation around cables — allowing them to run cooler and carry higher current loads than cables routed in enclosed cable trays. This makes heavy duty cable ladders the preferred choice for large power cable installations in demanding South African industrial and mining environments. Supplied in standard 3 metre lengths, available in widths from 100mm up to 500mm to suit any cable volume or installation requirement. When to choose Heavy Duty over Medium Duty Cable Ladder:- Very large or heavy power cable bundles- Long unsupported spans between cable ladder brackets- Mining, petrochemical and power generation environments- Installations subject to mechanical stress or vibration- Any application demanding maximum structural strength and   load-bearing capacity Ideal for use in:- Mining and minerals processing plants- Petrochemical and oil & gas installations- Power stations and high-voltage substations- Heavy industrial factories and manufacturing plants- Large infrastructure and civil engineering projects- Any installation requiring maximum cable ladder strength Cable Ladder Range Comparison:- Medium Duty Cable Ladder — 55mm rail height | 100mm–500mm wide- Heavy Duty Cable Ladder — [X]mm rail height | 100mm–500mm wide Cable Ladder vs Cable Tray — Which Do You Need?- Cable Ladder — Open rung design. Best for large power cables   requiring maximum ventilation and higher current ratings.- Cable Tray — Solid or slotted bottom. Best for smaller cables   and installations requiring full cable support. Priced per 3m length. Contact us for bulk and contractor pricing. Also available in our Cable Management range:→ Medium Duty Cable Ladder (55mm rail height)→ Light Duty Cable Trays (50mm–304mm, 12mm deep)→ Medium Duty Cable Trays (76mm–609mm, 38mm deep)→ Heavy Duty Cable Trays (76mm–609mm, 76mm deep) Order online with fast nationwide delivery across South Africa.Contact us for contractor and bulk pricing —sales@mapleleafelectrical.co.za or 064 086 3515. STOCK CODE WIDTH (mm)  HEIGHT (mm) CL76100 100 76 CL76150 150 76 CL76200 200 76 CL76300 300 76 CL76400 400 76 CL76500 500 76 CL76600 600 76 CL76800 800 76

Read more less
