Contactors

AC Mini Magnetic Contactors - 1NO or 1NC Auxiliary - 6A-16A - 3 Pole STOCK CODE CURRENT RATING  (AC3) CURRENT RATING  (AC1) 400V kW 400V HP AUXILIARY CONTACT DIMENSIONS H x W x D UKC1-6M-1A 6A 12A 2,2 3 1 NO 55x44x44mm UKC1-6M-1B 6A 12A 2,2 3 1 NC 55x44x44mm UKC1-9M-1A 9A 16A 4 5,5 1 NO 55x45x50mm UKC1-9M-1B 9A 16A 4 5,5 1 NC 55x45x50mm UKC1-12M-1A 12A 20A 5,5 7,5 1 NO 55x45x50mm UKC1-12M-1B 12A 20A 5,5 7,5 1 NC 55x45x50mm UKC1-16M-1A 16A 20A 7,5 10 1 NO 55x45x50mm UKC1-16M-1B 16A 20A 7,5 10 1 NC 55x45x50mm

Read more less

AC Magnetic Contactors - 1NO or 1NC Auxiliary - 9A-18A - 3 Pole STOCK CODE CURRENT RATING  (AC3) CURRENT RATING  (AC1) 400V kW 400V HP AUXILIARY CONTACT DIMENSIONS H x W x D MCE-D0910- 9A 20A 4 5,5 1 NO 74x45x80mm MCE-D0901- 9A 20A 4 5,5 1 NC 74x45x80mm MCE-D1210- 12A 25A 5,5 7,5 1 NO 74x45x80mm MCE-D1201- 12A 25A 5,5 7,5 1 NC 74x45x80mm MCE-D1810- 18A 32A 7,5 10 1 NO 74x45x80mm MCE-D1801- 18A 32A 7,5 10 1 NC 74x45x80mm Available Coil Voltages AC ONLY. *Please Specify: A=12V, B=24V, E=48V, F=110V, M=230V, Q=415V or T=525V. (AC ONLY)

Read more less

AC Magnetic Contactors - 1NO or 1NC Auxiliary - 3 Pole STOCK CODE CURRENT RATING  (AC3) CURRENT RATING  (AC1) 400V kW 400V HP AUXILIARY CONTACT DIMENSIONS H x W x D MCE-D2510- 25A 40A 11 15 1 NO 85x56x93mm MCE-D2501- 25A 40A 11 15 1 NC 85x56x93mm MCE-D3210- 32A 50A 15 20 1 NO 85x56x93mm MCE-D3201- 32A 50A 15 20 1 NC 85x56x93mm MCE-D3810- 38A 50A 15 20 1 NO 85x56x93mm MCE-D3801- 38A 50A 15 20 1 NC 85x56x93mm Available Coil Voltages AC ONLY. *Please Specify: A=12V, B=24V, E=48V, F=110V, M=230V, Q=415V or T=525V. (AC ONLY)

Read more less

AC Magnetic Contactors - 1NO & 1NC Auxiliary - 40A-95A - 3 Pole STOCK CODE CURRENT RATING  (AC3) CURRENT RATING  (AC1) 400V kW 400V HP AUXILIARY CONTACT DIMENSIONS H x W x D MCE-D4011- 40A 60A 18,5 25 1 + 1 125x75x114mm MCE-D5011- 50A 80A 22 30 1 + 1 125x75x114mm MCE-D6511- 65A 80A 30 40 1 + 1 125x75x114mm MCE-D8011- 80A 125A 37 50 1 + 1 125x75x123mm MCE-D9511- 95A 125A 45 60 1 + 1 125x75x123mm Available Coil Voltages AC ONLY. *Please Specify: A=12V, B=24V, E=48V, F=110V, M=230V, Q=415V or T=525V. (AC ONLY)

Read more less

AC Magnetic Contactors - 3 Pole STOCK CODE CURRENT RATING  (AC3) CURRENT RATING  (AC1) 400V kW 400V HP DIMENSIONS H x W x D MCE-F115 115A 200A 55 75 162x164x165mm MCE-F150 150A 250A 75 100 162x164x165mm MCE-F185 185A 275A 90 125 174x169x176mm MCE-F225 225A 300A 110 150 174x169x176mm MCE-F265 265A 350A 132 180 203x202x207mm MCE-F330 330A 400A 160 220 206x206x213mm MCE-F400 400A 500A 220 300 206x206x213mm MCE-F500 500A 700A 275 400 238x233x226mm MCE-F630 630A 1000A 375 500 300x310x250mm Available Coil Voltages AC ONLY. *Please Specify:A=12V, B=24V, E=48V, F=110V, M=230V, Q=415V or T=525V. (AC ONLY)

Read more less

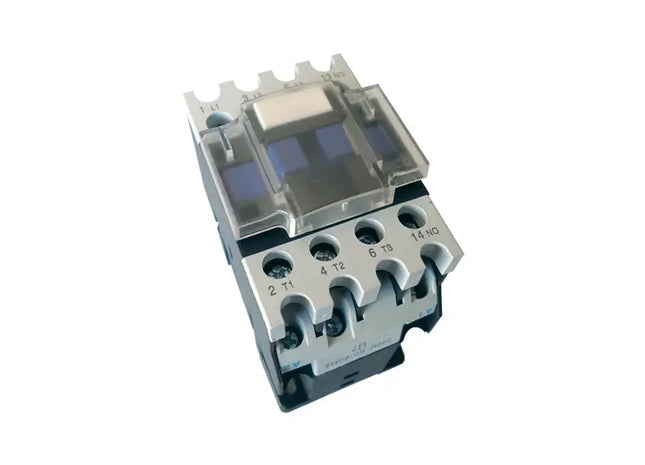

AC Magnetic Contactor - 12A - 4 Pole STOCK CODE CURRENT RATING  (AC3) CURRENT RATING  (AC1) 400V kW 400V HP AUXILIARY CONTACT DIMENSIONS H x W x D MCE-D12004 12A 25A 5,5 7,5 4 NO 74x45x80mm MCE-D12008 12A 25A 5,5 7,5 2NO+2 NC 74x45x80mm Available Coil Voltages AC ONLY. *Please Specify: A=12V, B=24V, E=48V, F=110V, M=230V, Q=415V or T=525V. (AC ONLY)

Read more less

AC Magnetic Contactor - 25A - 4 Pole STOCK CODE CURRENT RATING  (AC3) CURRENT RATING  (AC1) 400V kW 400V HP AUXILIARY CONTACT DIMENSIONS H x W x D MCE-D25004 25A 40A 11 15 4 NO 85x56x93mm MCE-D25008 25A 40A 11 15 2NO+2 NC 85x56x93mm Available Coil Voltages AC ONLY. *Please Specify: A=12V, B=24V, E=48V, F=110V, M=230V, Q=415V or T=525V. (AC ONLY)

Read more less

AC Magnetic Contactor - 40A - 4 Pole STOCK CODE CURRENT RATING  (AC3) CURRENT RATING  (AC1) 400V kW 400V HP AUXILIARY CONTACT DIMENSIONS H x W x D MCE-D40004 40A 60A 18,5 25 4 NO 125x80x114mm MCE-D40008 40A 60A 18,5 25 2NO+2 NC 125x80x125mm Available Coil Voltages AC ONLY. *Please Specify: A=12V, B=24V, E=48V, F=110V, M=230V, Q=415V or T=525V. (AC ONLY)

Read more less

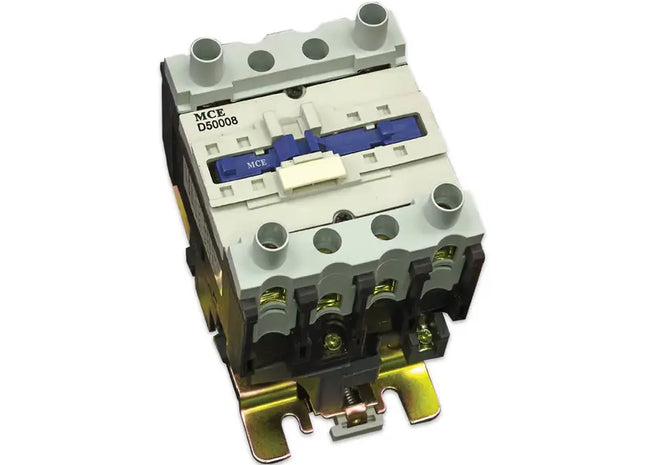

AC Magnetic Contactor - 50A - 4 Pole STOCK CODE CURRENT RATING  (AC3) CURRENT RATING  (AC1) 400V kW 400V HP AUXILIARY CONTACT DIMENSIONS H x W x D MCE-D50004 50A 80A 22 30 4 NO 125x85x114mm MCE-D50008 50A 80A 22 30 2NO+2 NC 125x85x125mm Available Coil Voltages AC ONLY. *Please Specify: A=12V, B=24V, E=48V, F=110V, M=230V, Q=415V or T=525V. (AC ONLY)

Read more less

AC Magnetic Contactor - 65A - 4 Pole STOCK CODE CURRENT RATING  (AC3) CURRENT RATING  (AC1) 400V kW 400V HP AUXILIARY CONTACT DIMENSIONS H x W x D MCE-D65004 65A 80A 30 40 4 NO 125x85x114mm MCE-D65008 65A 80A 30 40 2NO+2 NC 125x85x128mm Available Coil Voltages AC ONLY. *Please Specify: A=12V, B=24V, E=48V, F=110V, M=230V, Q=415V or T=525V. (AC ONLY)

Read more less

AC Magnetic Contactor - 80A - 4 Pole STOCK CODE CURRENT RATING  (AC3) CURRENT RATING  (AC1) 400V kW 400V HP AUXILIARY CONTACT DIMENSIONS H x W x D MCE-D80004 80A 125A 37 50 4 NO 125x95x120mm MCE-D80008 80A 125A 37 50 2NO+2 NC 125x95x135mm Available Coil Voltages AC ONLY. *Please Specify: A=12V, B=24V, E=48V, F=110V, M=230V, Q=415V or T=525V. (AC ONLY)

Read more less

AC Magnetic Contactor - 95A - 4 Pole STOCK CODE CURRENT RATING  (AC3) CURRENT RATING  (AC1) 400V kW 400V HP AUXILIARY CONTACT DIMENSIONS H x W x D MCE-D95004 95A 125A 45 60 4 NO 125x95x120mm MCE-D95008 95A 125A 45 60 2NO+2 NC 125x95x135mm Available Coil Voltages AC ONLY. *Please Specify: A=12V, B=24V, E=48V, F=110V, M=230V, Q=415V or T=525V. (AC ONLY)

Read more less

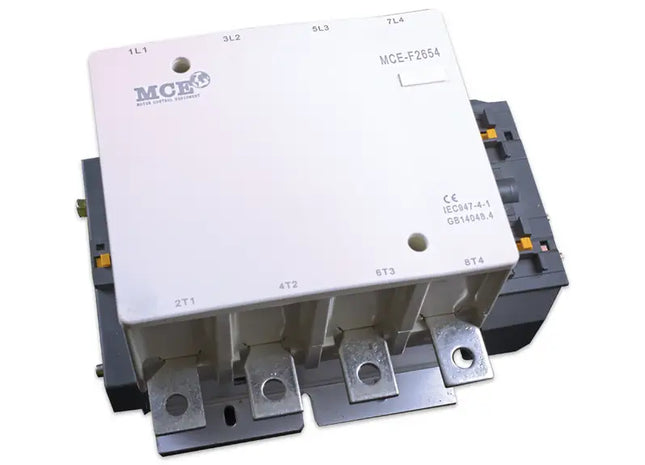

AC Magnetic Contactors - 4 Pole STOCK CODE CURRENT RATING  (AC3) CURRENT RATING  (AC1) 400V kW 400V HP MAIN  CONTACT DIMENSIONS H x W x D MCE-F115-4 115A 200A 55 75 4NO 162x200x170mm MCE-F150-4 150A 250A 75 100 4NO 170x200x170mm MCE-F185-4 185A 275A 90 125 4NO 175x210x185mm MCE-F225-4 225A 300A 110 150 4NO 200x210x185mm MCE-F265-4 265A 350A 132 180 4NO 205x245x215mm MCE-F330-4 330A 400A 160 220 4NO 210x260x220mm MCE-F400-4 400A 500A 220 300 4NO 210x260x220mm MCE-F500-4 500A 700A 275 400 4NO 240x280x230mm MCE-F630-4 630A 1000A 375 500 4NO 300x380x250mm Available Coil Voltages AC ONLY. *Please Specify:A=12V, B=24V, E=48V, F=110V, M=230V, Q=415V or T=525V. (AC ONLY)
