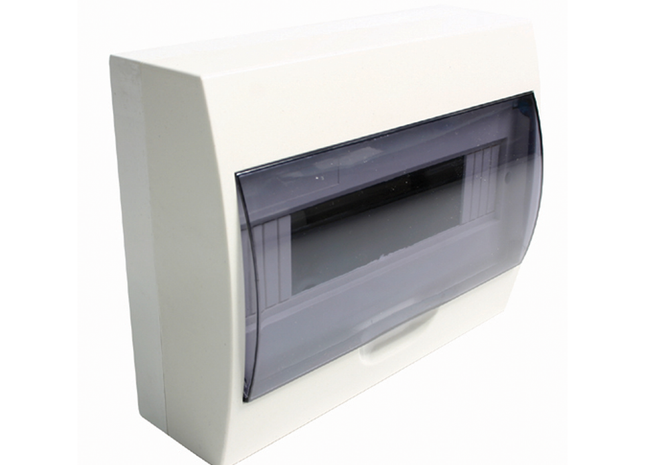

Plastic Surface Mounting Distribution Board - IP41  White with Grey Lid All complete with Earth/Neutral Bar STOCK CODE DIMENSION DETAILS DISTRIBUTION QUANTITY  DB-2W-P-S 140(L) x 90(W) x 85(D) 2 Module 1 x 2 Way DB-4W-P-S 210(L) x 112(W) x 85(D) 4 Module 1 x 4 Way DB-6W-P-S 210(L) x 148(W) x 85(D) 6 Module 1 x 6 Way DB-8W-P-S 210(L) x 184(W) x 85(D) 8 Module 1 x 8 Way DB-10W-P-S 210(L) x 222(W) x 85(D) 10 Module 1 x 10 Way DB-12W-P-S 210(L) x 256(W) x 85(D) 12 Module 1 x 12 Way DB-15W-P-S 310(L) x 200(W) x 85(D) 15 Module 1 x 15 Way DB-18W-P-S 222(L) x 364(W) x 85(D) 18 Module 1 x 18 Way DB-24W-P-S 325(L) x 270(W) x 85(D) 24 Module 2 x 12 Way DB-36W-P-S 473(L) x 305(W) x 95(D) 36 Module 3 x 12 Way DB-45W-P-S 473(L) x 326(W) x 95(D) 45 Module 3 x 15 Way

Read more less

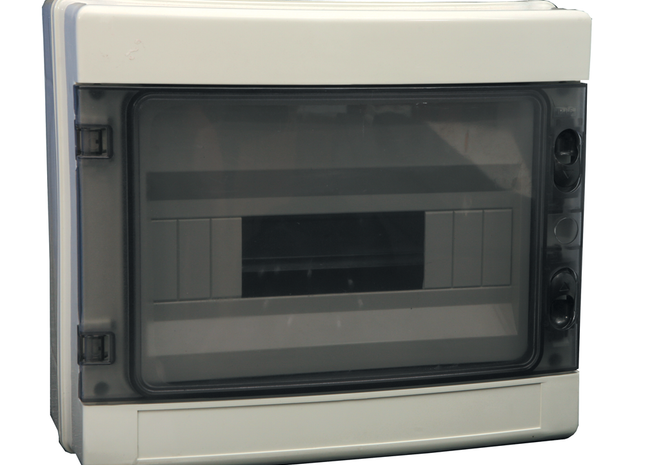

Plastic Surface Mounting Distribution Board All complete with Earth/Neutral Bar STOCK CODE DIMENSIONS DISTRIBUTION QUANTITY  DB-4W-P-S65 210(L) x 140(W) x 100(D) 4 Module 1 x 4 Way DB-8W-P-S65 210(L) x 215(W) x 100(D) 8 Module 1 x 8 Way DB-12W-P-S65 260(L) x 300(W) x 140(D) 12 Module 1 x 12 Way DB-18W-P-S65 285(L) x 410(W) x 140(D) 18 Module 1 x 18 Way DB-24W-P-S65 300(L) x 415(W) x 140(D) 24 Module 2 x 12 Way

Read more less

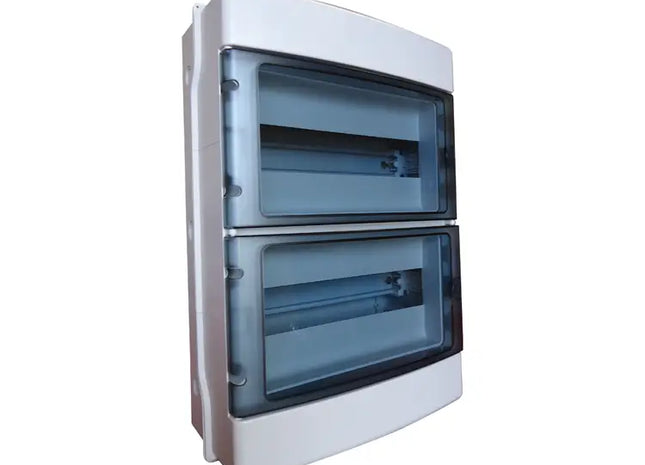

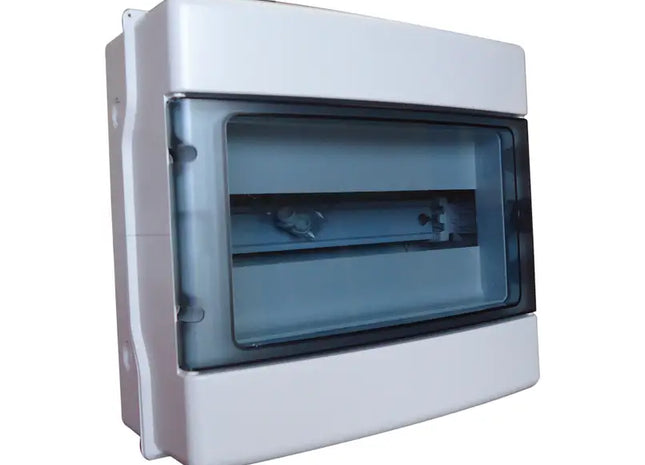

Onesto Plastic Surface Mounting Distribution Board – IP65 Select your board using the module capacity and enclosure dimensions below. These WDB specifications have been checked against MCE Electric’s Onesto product listing and catalogue. Board and module selection Onesto WDB selection guide. Dimensions in mm, in the supplier’s L × W × D order. Stock code Module capacity Listed ways Dimensions (L × W × D) Mounting / IP rating WDB-4 4 modules 4 way 215 × 145 × 110 mm Surface / IP65 WDB-6 6 modules 6 way 215 × 180 × 110 mm Surface / IP65 WDB-9 9 modules 9 way 235 × 215 × 110 mm Surface / IP65 WDB-13 13 modules 13 way 305 × 285 × 140 mm Surface / IP65 WDB-26 26 modules 26 way 445 × 285 × 140 mm Surface / IP65 WDB-39 39 modules 39 way 605 × 285 × 140 mm Surface / IP65 WDB-52 52 modules 52 way 760 × 285 × 140 mm Surface / IP65 Compatibility checks before ordering Module capacity is a space-planning guide, not confirmation that a particular breaker fits. Ask your electrician to total the space required by the actual devices, including the incoming/main switch and protection devices, and allow for any planned expansion. Selection check What is verified / what to confirm Board capacity and size The seven WDB module capacities and dimensions above are supplier-listed specifications. Match the stock code to the size selected when ordering. Breaker compatibility The cited WDB specifications do not confirm individual breaker models, rail profile, module pitch or device clearance. Confirm the exact breaker make/model, mounting arrangement, width and depth before ordering. Do not assume universal compatibility. Incoming / main switch Have your electrician confirm the required switch, pole count, occupied space and cable clearance for your installation. The cited WDB specifications do not confirm an included main switch or its rating. Voltage and current ratings No assembly voltage or current rating is confirmed by the cited WDB specifications. Module count and IP65 are not electrical ratings; confirm suitability for your supply and selected devices before purchase. Mounting and cable entries Surface mounting is supplier-confirmed. Fixing centres, cable-entry/knockout sizes and cutout details are not confirmed by the cited specifications. Obtain the appropriate drawing before drilling or preparing cable entries; do not use enclosure dimensions as a cutout template. Need a compatibility check? Contact us before ordering with the WDB stock code, breaker make/model, device quantities and dimensions, supply details and installation requirements so we can request the relevant technical confirmation. Specification sources: MCE Electric Onesto WDB product specifications and MCE Electric catalogue.

Read more less

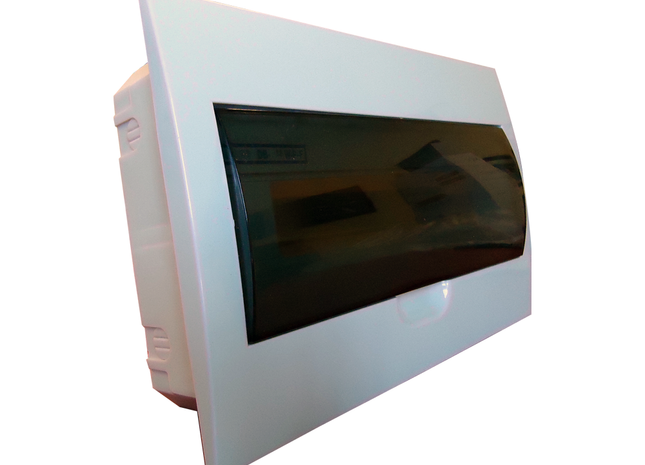

Plastic Wall Tray Flush Mounting Distribution Board - IP41 STOCK CODE DIMENSION DISTRIBUTION QUANTITY  DB-6W-P-F 200(L) x 150(W) x 66(D) 6 Module 1 x 6 Way DB-8W-P-F 200(L) x 184(W) x 66(D) 8 Module 1 x 8 Way DB-10W-P-F 200(L) x 222(W) x 66(D) 10 Module 1 x 10 Way DB-12W-P-F 200(L) x 256(W) x 66(D) 12 Module 1 x 12 Way DB-15W-P-F 200(L) x 310(W) x 66(D) 15 Module 1 x 15 Way DB-18W-P-F 220(L) x 365(W) x 76(D) 18 module 1 x 18 Way DB-24W-P-F 340(L) x 365(W) x 76(D) 24 Module 2 x 12 Way DB-36W-P-F 440(L) x 255(W) x 76(D) 36 Module 3 x 12 Way DB-45W-P-F 440(L) x 255(W) x 76(D) 45 Module 3 x 15 Way

Read more less

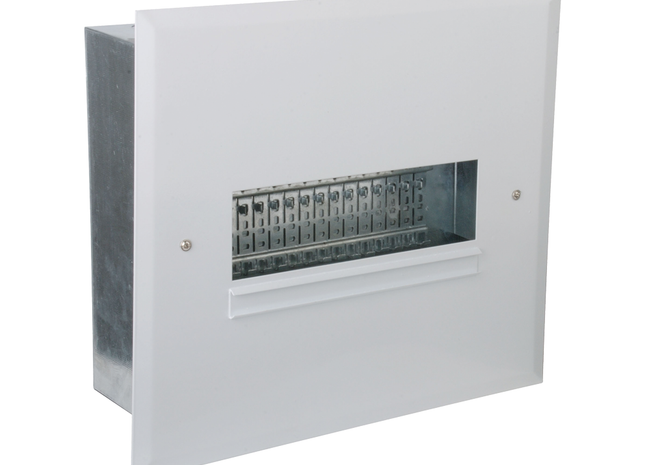

White Flush Mount Distribution Boards for Mini Rail - Complete With Earth and Neutral Bar STOCK CODE DISTRIBUTION QUANTITY  SCU4F 4 WAY SCU6F 6 WAY SCU8F 8 WAY SCU10F 10 WAY SCU12F 12 WAY SCU16F 16 WAY SCU18F 18 WAY SCU20F 20 WAY

Read more less

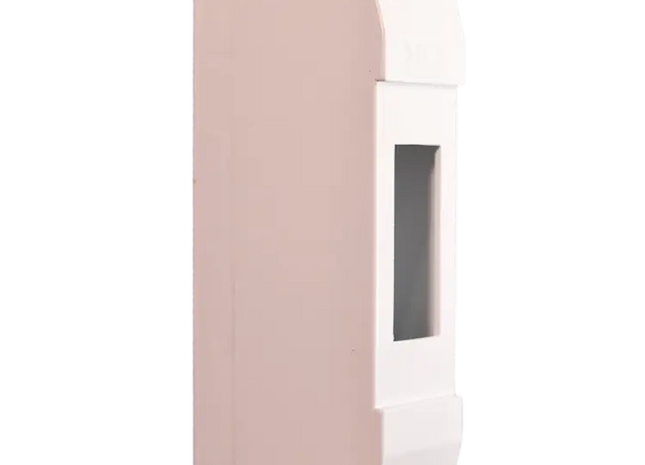

IP41 Plastic DB Board Shrouds are protective covers designed to shield live busbars, terminals and connections inside distribution boards, switchgear panels and control gear enclosures — providing protection against accidental finger contact in accordance with IP41 ingress protection standards. Used by electricians and panel builders throughout South Africa, these shrouds are an essential safety component when assembling or upgrading DB boards, ensuring compliance with South African wiring regulations and SANS 10142 safety requirements. Available in 5 sizes to suit 1 to 8 module configurations:- SM-1W — 1 way plastic shroud (1 module)- SM-2W — 2 way plastic shroud (2 modules)- SM-4W — 4 way plastic shroud (4 modules)- SM-6W — 6 way plastic shroud (6 modules)- SM-8W — 8 way plastic shroud (8 modules) Key Features:- IP41 rated — protection against solid objects and vertical dripping water- Plastic construction — lightweight, durable and non-conductive- Modular design — fits standard DIN rail distribution board layouts- Available in 5 sizes for flexible panel building configurations- Essential for SANS 10142 compliant DB board installations Typical Applications:- Distribution board (DB board) assembly and upgrades- Switchgear and control panel building- Busbar and terminal protection in industrial enclosures- Residential, commercial and industrial electrical installations Order online with fast nationwide delivery across South Africa.Contact us for contractor and bulk pricing —sales@mapleleafelectrical.co.za or 064 086 3515. SM-1W - 1 way plastic shroud - 1 modules (1 x 1 way) SM-2W - 2 way plastic shroud - 2 modules (1 x 2 way) SM-4W - 4 way plastic shroud - 4 modules (1 x 4 way) SM-6W - 6 way plastic shroud - 6 modules (1 x 6 way) SM-8W - 8 way plastic shroud - 8 modules (1 x 8 way)

Read more less

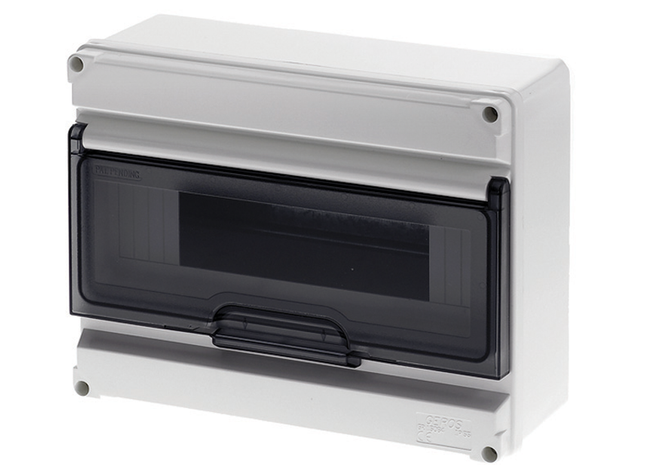

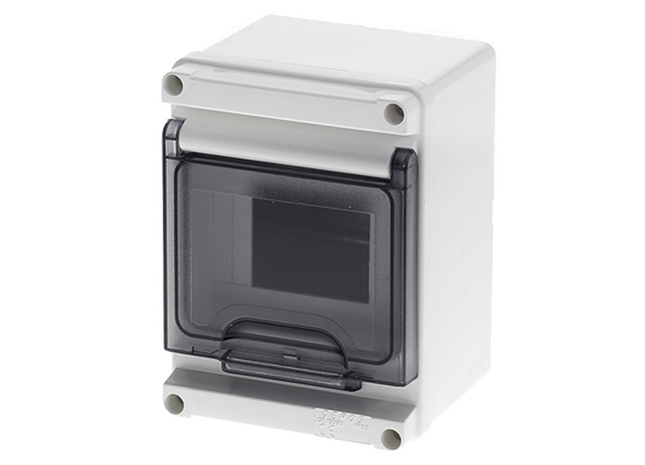

White Surface Distribution Board with Smoky Door - IP65  STOCK CODE DIMENSION DISTRIBUTION QUANTITY  GR15060 112(W) x 154(L) x 75(D) 4-5 Module 4/5 Way GR15062 170(W) x 170(L) x 75(D) 6-8 Module 6/8 Way GR15064 240(W) x 202(L) x 75(D) 12 Module 1 x 12 Way GR15066 240(W) x 331(L) x 80(D) 24 Module 2 x 12 Way Earth and Neutral Bars sold separately • Superb Italian design and quality • Conforms to EN60670-24:2005• Glow wire test: 650 ̊ EN 60335-1:94 + IEC695-2-1 • Min / Max Temperature: - 5 ̊C and + 60 ̊C • Shock resistance: IK07 • Halogen Free product • DIN Rail

Read more less

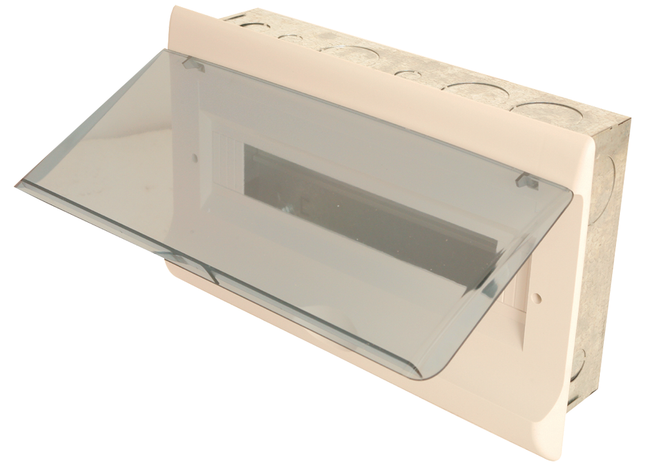

IP41, Schenker Adjustable Flush Mounting Distribution Boards - with Earth/Neutral bars. STOCK CODE DIMENSION DISTRIBUTION QUANTITY  SDB1-20W-A-F 310(L) x 190(W) x 70(H) SMC1 (19mm CB’s) = 10 Modules (10 Way) SM13 (13mm CB’s) = 20 Modules (20 Way) SDB1-24W-A-F 360(L) x 220(W) x 80(H) SMC1 (19mm CB’s) = 12 Modules (12 Way) SM13 (13mm CB’s) = 24 Modules (24 Way)

Read more less

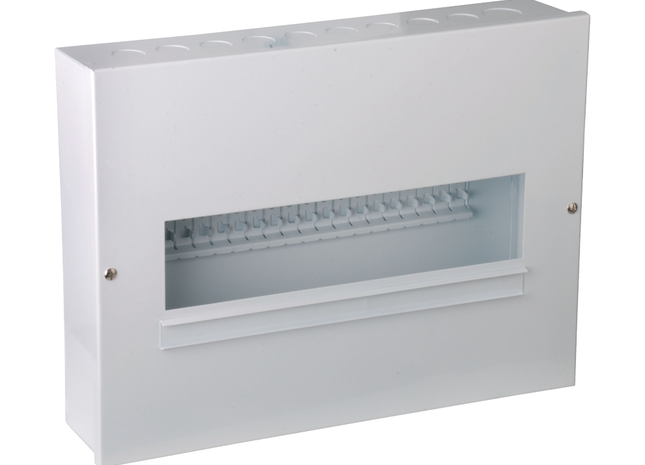

White Surface Mount Distribution Boards for Mini Rail (13mm) Complete with Earth & Neutral Bars STOCK CODE DISTRIBUTION QUANTITY  SCU4S 4 WAY SCU6S 6 WAY SCU8S 8 WAY SCU10S 10 WAY SCU12S 12 WAY SCU16S 16 WAY SCU18S 18 WAY SCU20S 20 WAY

Read more less

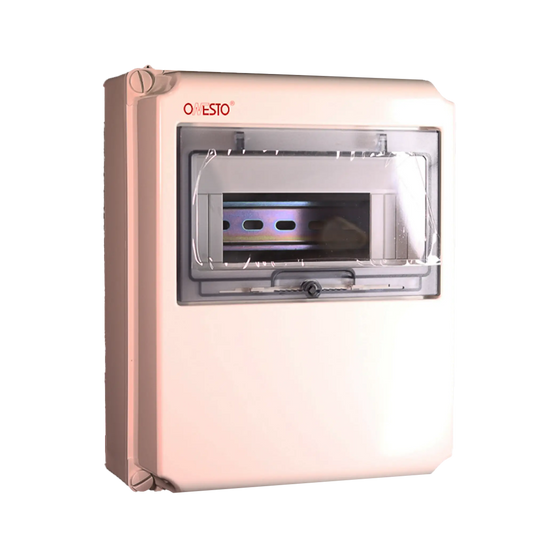

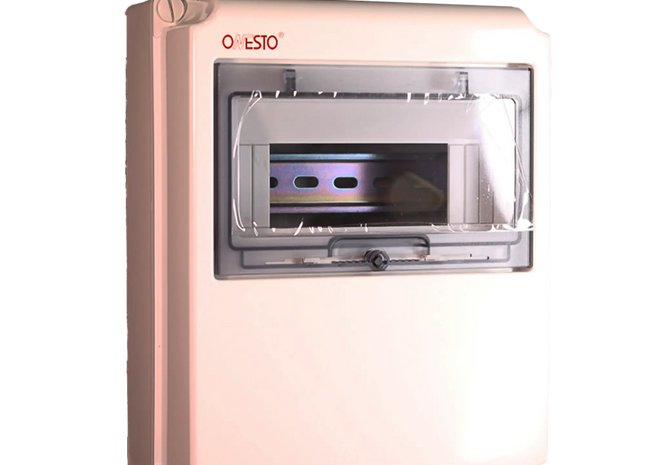

PDB-9W - 9 way IP65 empty swimming pool board

Read more less

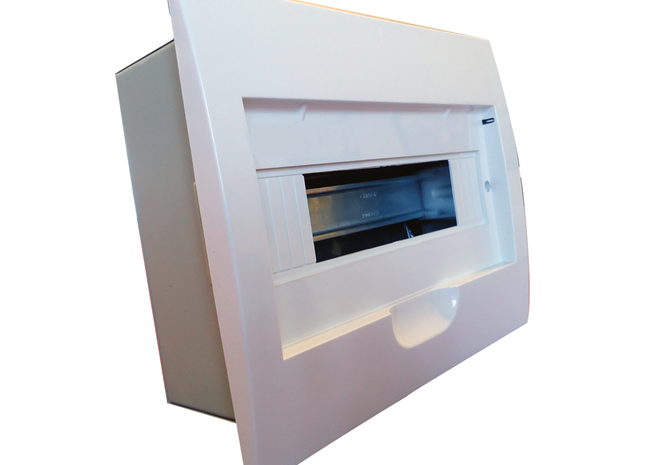

White IP41 Plastic Cover Steel Flush Distribution Boards with Wall Trays  STOCK CODE DIMENSION DISTRIBUTION QUANTITY  DB-12W-S-F 250(L) x 185(W) x 85(D) 12 Module 1 x 12 Way DB -15W-S-F 305(L) x 185(W) x 85(D) 15 Module 1 x 15 Way DB-18W-S-F 360(L) x 215(W) x 85(D) 18 Module 1 x 18 Way DB-24W-S-F 340(L) x 300(W) x 85(D) 24 Module 2 x 12 Way DB-36W-S-F 482(L) x 300(W) x 85(D) 36 Module 3 x 12 Way STEEL WALL TRAY COMPLETE WITH STEEL MESH

Read more less

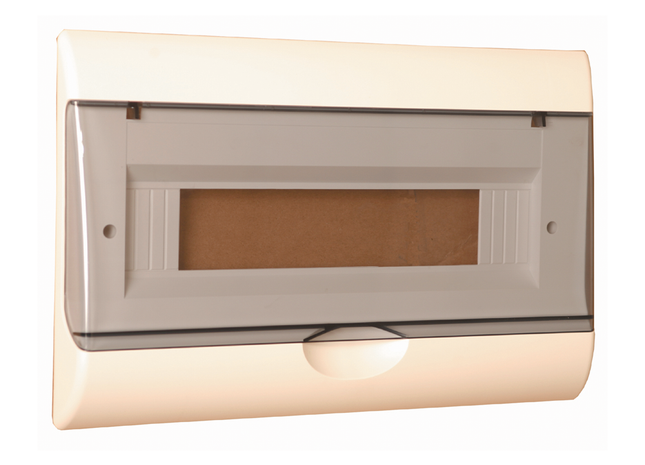

Adjustable Flush Mounting Distribution Boards (galvanised tray) - IP41  STOCK CODE DIMENSION DISTRIBUTION QUANTITY  DB1-12W-A-F 185(L) x 250(W) x 70(D) 12 Module 1 x 12 Way DB1-15W-A-F 190(L) x 310(W) x 70(D) 15 Module 1 x 15 Way DB1-18W-A-F 220(L) x 360(W) x 80(D) 18 Module 1 x 18 Way
