Onesto Plastic Surface Mounting Distribution Board - IP65

Description

Onesto Plastic Surface Mounting Distribution Board – IP65

Select your board using the module capacity and enclosure dimensions below. These WDB specifications have been checked against MCE Electric’s Onesto product listing and catalogue.

Board and module selection

Onesto WDB selection guide. Dimensions in mm, in the supplier’s L × W × D order.
Stock code Module capacity Listed ways Dimensions (L × W × D) Mounting / IP rating

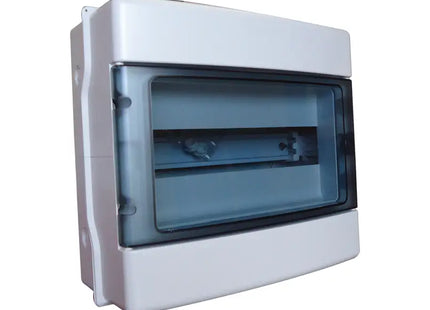

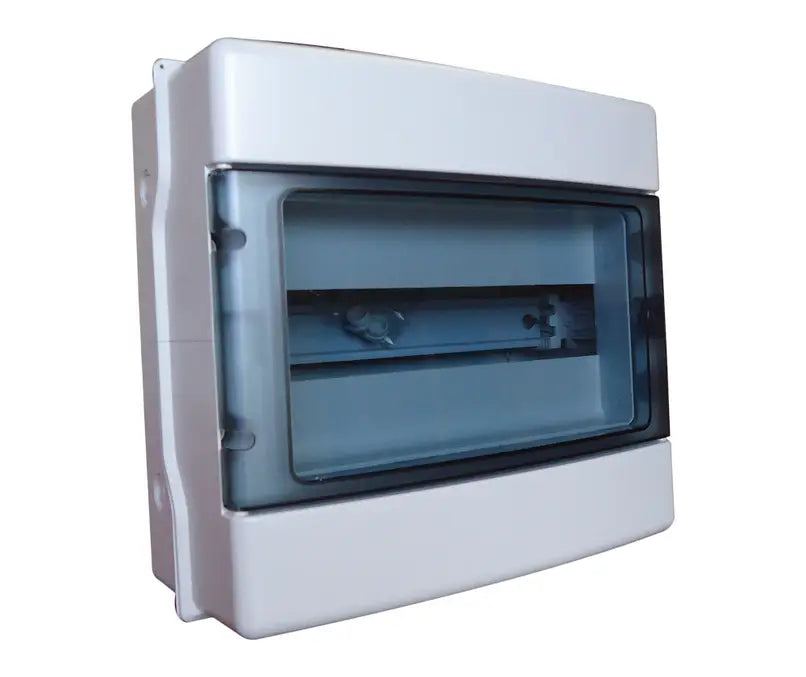

WDB-4 4 modules 4 way 215 × 145 × 110 mm Surface / IP65
WDB-6 6 modules 6 way 215 × 180 × 110 mm Surface / IP65
WDB-9 9 modules 9 way 235 × 215 × 110 mm Surface / IP65
WDB-13 13 modules 13 way 305 × 285 × 140 mm Surface / IP65

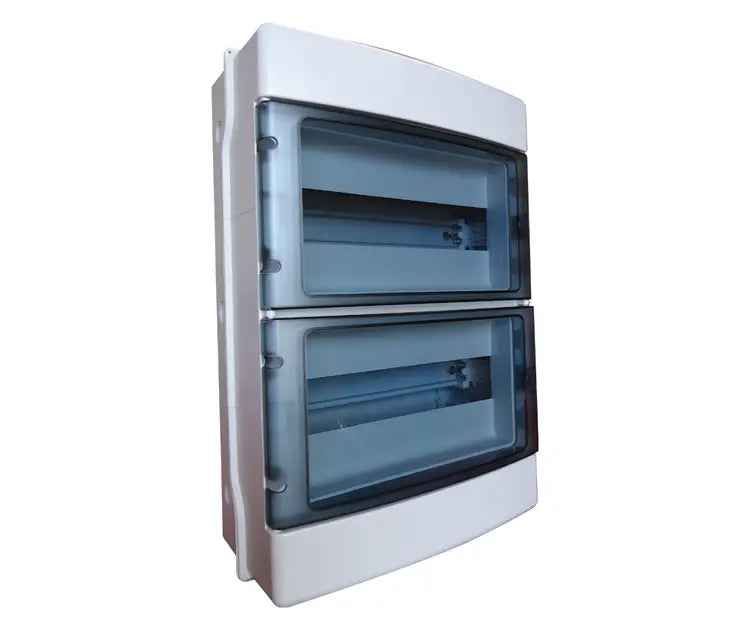

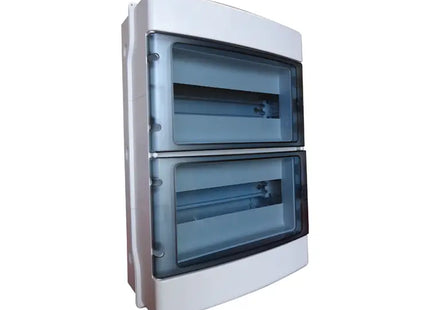

WDB-26 26 modules 26 way 445 × 285 × 140 mm Surface / IP65

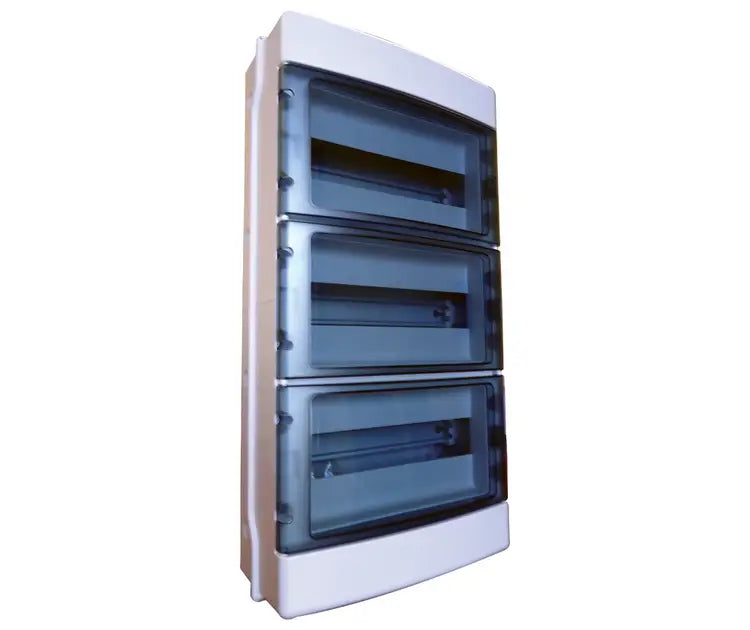

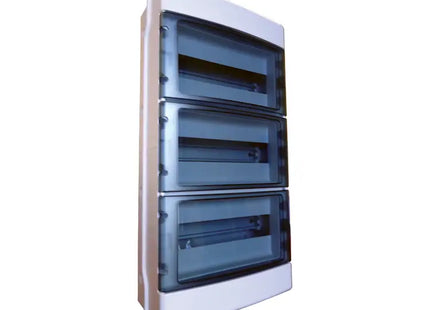

WDB-39 39 modules 39 way 605 × 285 × 140 mm Surface / IP65

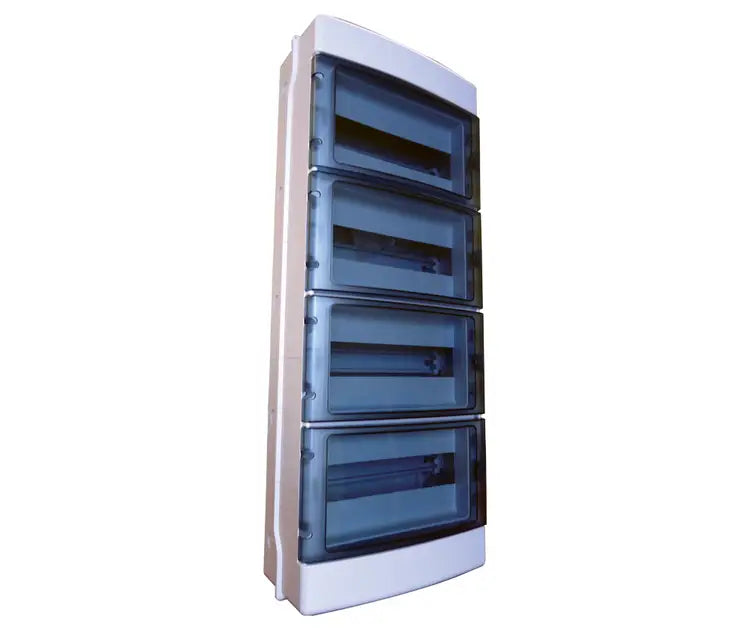

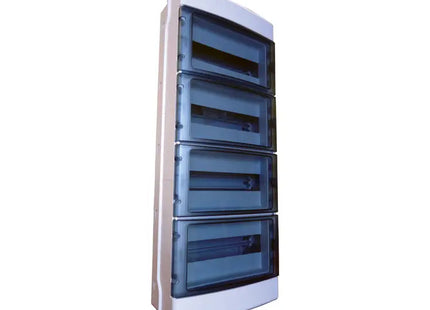

WDB-52 52 modules 52 way 760 × 285 × 140 mm Surface / IP65

Compatibility checks before ordering

Module capacity is a space-planning guide, not confirmation that a particular breaker fits. Ask your electrician to total the space required by the actual devices, including the incoming/main switch and protection devices, and allow for any planned expansion.

Selection check What is verified / what to confirm
Board capacity and size The seven WDB module capacities and dimensions above are supplier-listed specifications. Match the stock code to the size selected when ordering.
Breaker compatibility The cited WDB specifications do not confirm individual breaker models, rail profile, module pitch or device clearance. Confirm the exact breaker make/model, mounting arrangement, width and depth before ordering. Do not assume universal compatibility.
Incoming / main switch Have your electrician confirm the required switch, pole count, occupied space and cable clearance for your installation. The cited WDB specifications do not confirm an included main switch or its rating.
Voltage and current ratings No assembly voltage or current rating is confirmed by the cited WDB specifications. Module count and IP65 are not electrical ratings; confirm suitability for your supply and selected devices before purchase.
Mounting and cable entries Surface mounting is supplier-confirmed. Fixing centres, cable-entry/knockout sizes and cutout details are not confirmed by the cited specifications. Obtain the appropriate drawing before drilling or preparing cable entries; do not use enclosure dimensions as a cutout template.

Need a compatibility check? Contact us before ordering with the WDB stock code, breaker make/model, device quantities and dimensions, supply details and installation requirements so we can request the relevant technical confirmation.

Specification sources: MCE Electric Onesto WDB product specifications and MCE Electric catalogue.
