Busbars

Allbro 5 Hole Battery Busbar Box External Dimensions (mm): 160H x 160W x 95D Bolt size: M8 No. of termination points: 5 Copper busbar size: 10H x 160W x 30D IP Rating: IP68 The Battery Busbar Box range ticks all the boxes for electrical installations. It’s completely waterproof with an IP68 rating and strong enough to handle all kinds of weather. The box is non-conductive and flame-retardant, which makes it ideal for solar where the risk of DC arcs increases. GRP (Glass Reinforced Polyester) material is rust-free with a 25+ year UV life for long term performance. Max rating 600A (calculated at 2A/mm2) M8 holes drilled and taped 24mm apart Included in the box: M8 12mm stainless steel bolts M8 stainless steel spring washers M8 stainless steel flat washer 1 x Drilling template SKU: 060-687

Read more less

Allbro 10-Hole Battery Busbar Box External Dimensions (mm): 160H x 260W x 95D Bolt size: M8 No. of termination points: 10 Copper busbar size: 10H x 260W x 30D IP Rating: IP68 The Battery Busbar Box range ticks all the boxes for electrical installations. It’s completely waterproof with an IP68 rating and strong enough to handle all kinds of weather. The box is non-conductive and flame-retardant, which makes it ideal for solar where the risk of DC arcs increases. GRP (Glass Reinforced Polyester) material is rust-free with a 25+ year UV life for long term performance. Max rating 600A (calculated at 2A/mm2) M8 holes drilled and taped 24mm apart Included in the box: M8 12mm stainless steel bolts M8 stainless steel spring washers M8 stainless steel flat washer 1 x Drilling template SKU: 060-552

Read more less

Allbro 15-Hole Battery Busbar Box External Dimensions (mm): 160H x 360W x 95D Bolt size: M8 No. of termination points: 15 Copper busbar size: 10H x 360W x 30D IP Rating: IP68 The Battery Busbar Box range ticks all the boxes for electrical installations. It’s completely waterproof with an IP68 rating and strong enough to handle all kinds of weather. The box is non-conductive and flame-retardant, which makes it ideal for solar where the risk of DC arcs increases. GRP (Glass Reinforced Polyester) material is rust-free with a 25+ year UV life for long term performance. Max rating 600A (calculated at 2A/mm2) M8 holes drilled and taped 24mm apart Included in the box: M8 12mm stainless steel bolts M8 stainless steel spring washers M8 stainless steel flat washer 1 x Drilling template SKU: 060-553

Read more less

Allbro 23-Hole Battery Busbar Box External Dimensions (mm): 160H x 560W x 95D Bolt size: M8 No. of termination points: 23 Copper busbar size: 10H x 560W x 30D IP Rating: IP68 The Battery Busbar Box range ticks all the boxes for electrical installations. It’s completely waterproof with an IP68 rating and strong enough to handle all kinds of weather. The box is non-conductive and flame-retardant, which makes it ideal for solar where the risk of DC arcs increases. GRP (Glass Reinforced Polyester) material is rust-free with a 25+ year UV life for long term performance. Max rating 600A (calculated at 2A/mm2) M8 holes drilled and taped 24mm apart Included in the box: M8 12mm stainless steel bolts M8 stainless steel spring washers M8 stainless steel flat washer 1 x Drilling template SKU: 060-554

Read more less

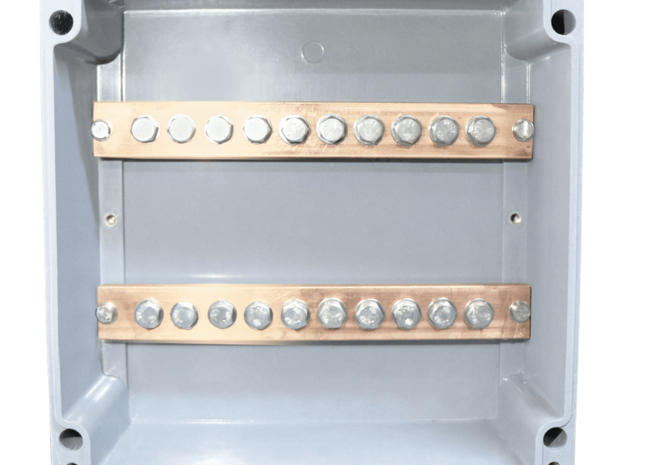

Allbro 2 x 10-Hole Battery Busbar Box External Dimensions (mm): 250H x 260W x 95D Bolt size: M8 No. of termination points: 20 Copper busbar size: 10H x 260W x 30D IP Rating: IP68 The Battery Busbar Box range ticks all the boxes for electrical installations. It’s completely waterproof with an IP68 rating and strong enough to handle all kinds of weather. The box is non-conductive and flame-retardant, which makes it ideal for solar where the risk of DC arcs increases. GRP (Glass Reinforced Polyester) material is rust-free with a 25+ year UV life for long term performance. Max rating 600A (calculated at 2A/mm2) M8 holes drilled and taped 24mm apart Included in the box: M8 12mm stainless steel bolts M8 stainless steel spring washers M8 stainless steel flat washer 1 x Drilling template SKU: 060-658

Read more less

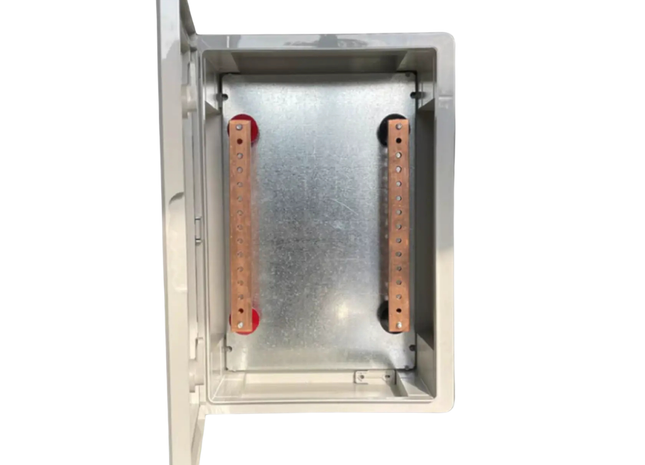

MCE Busbar Enclosure IP65 IP Rating: IP65 Dimensions: 400 x 300 x 170mm Busbar Size: 30 x 5mm Amperage: 300A SKU: BB-300

Read more less

MCE Busbar Enclosure IP65 IP Rating: IP65 Dimensions: 400 x 300 x 170mm Busbar Size: 30 x 10mm Amperage: 600A SKU: BB-600

Read more less
