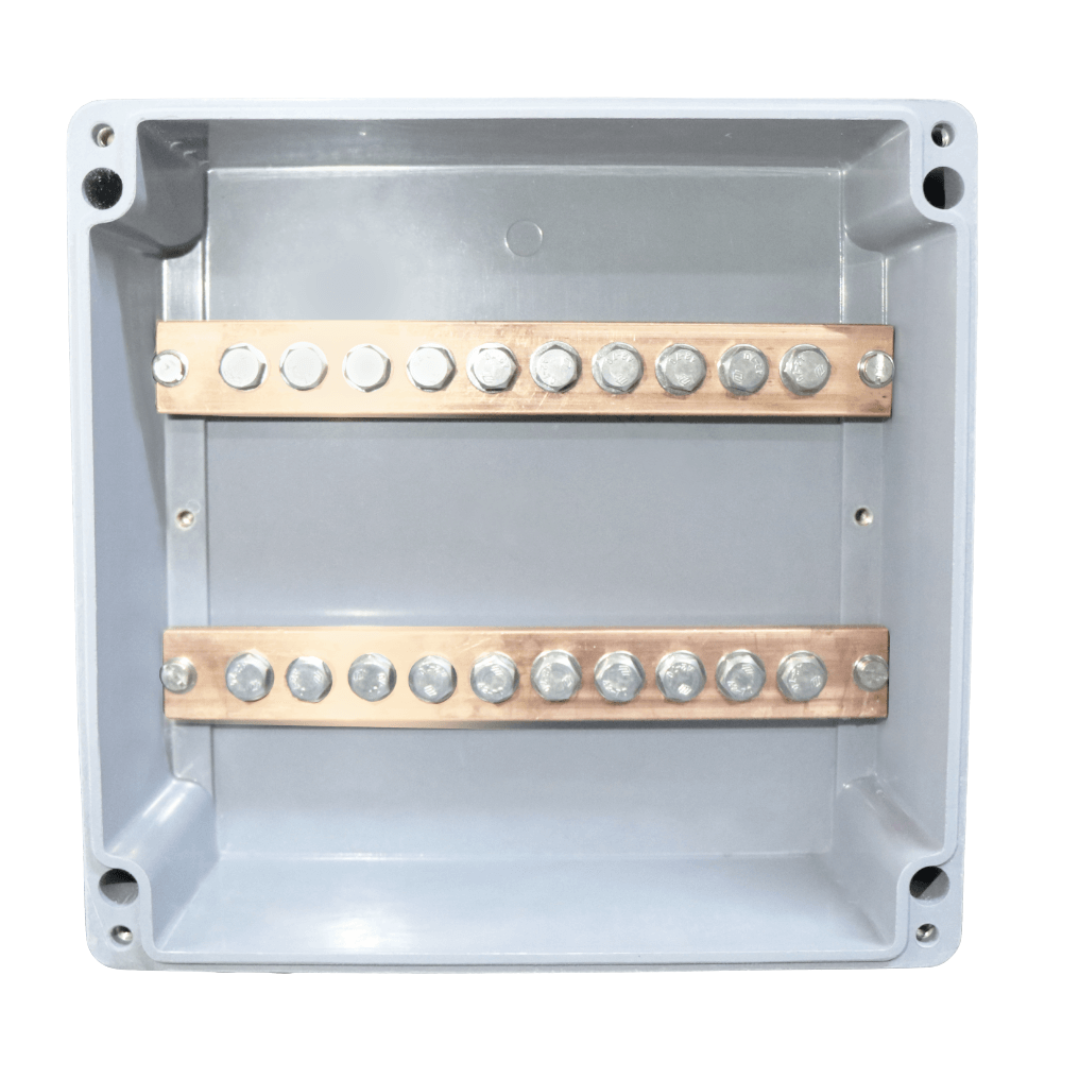

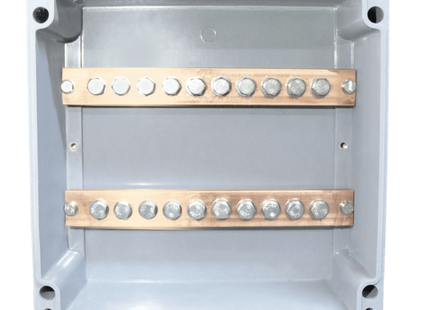

Allbro 2 x 10-Hole Battery Busbar Box

Description

Allbro 2 x 10-Hole Battery Busbar Box

External Dimensions (mm): 250H x 260W x 95D

Bolt size: M8

No. of termination points: 20

Copper busbar size: 10H x 260W x 30D

IP Rating: IP68

The Battery Busbar Box range ticks all the boxes for electrical installations. It’s completely waterproof with an IP68 rating and strong enough to handle all kinds of weather. The box is non-conductive and flame-retardant, which makes it ideal for solar where the risk of DC arcs increases. GRP (Glass Reinforced Polyester) material is rust-free with a 25+ year UV life for long term performance.

  • Max rating 600A (calculated at 2A/mm2)
  • M8 holes drilled and taped 24mm apart

Included in the box:

  • M8 12mm stainless steel bolts
  • M8 stainless steel spring washers
  • M8 stainless steel flat washer
  • 1 x Drilling template

SKU: 060-658

Allbro 2 x 10-Hole Battery Busbar Box

Product form

Allbro 2 x 10-Hole Battery Busbar Box External Dimensions (mm): 250H x 260W x 95D Bolt size: M8 No. of...

Free pickup in our shop(s)
Split your purchase with interest-free payments from R 241.07/m

Make your first payment today, then monthly over 2–6 months.

R 1,446.42 Incl. VAT

    We accept

    Visa Mastercard Apple Pay Google Pay Capitec Pay
    • Guaranteed secure & safe checkout.

      <p>Guaranteed <b>secure & safe</b> checkout.</p>
    • If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, Please contact us via email - sales@mapleleafelectrical.co.za or call-064 086 3515

    Description

    Allbro 2 x 10-Hole Battery Busbar Box

    External Dimensions (mm): 250H x 260W x 95D

    Bolt size: M8

    No. of termination points: 20

    Copper busbar size: 10H x 260W x 30D

    IP Rating: IP68

    The Battery Busbar Box range ticks all the boxes for electrical installations. It’s completely waterproof with an IP68 rating and strong enough to handle all kinds of weather. The box is non-conductive and flame-retardant, which makes it ideal for solar where the risk of DC arcs increases. GRP (Glass Reinforced Polyester) material is rust-free with a 25+ year UV life for long term performance.

    • Max rating 600A (calculated at 2A/mm2)
    • M8 holes drilled and taped 24mm apart

    Included in the box:

    • M8 12mm stainless steel bolts
    • M8 stainless steel spring washers
    • M8 stainless steel flat washer
    • 1 x Drilling template

    SKU: 060-658
