Din Terminals
-

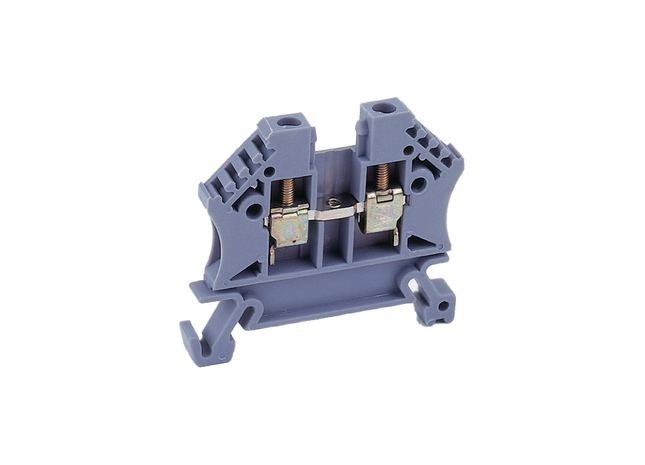

Standard terminals - Polyamide 6.6
Standard terminals - Polyamide 6.6 STOCK CODE DESCRIPTION WIRE SIZE TERMINAL WIDTH RATED CURRENT 43408 2,5mm Terminal 0,5-2,5mm 5mm 24 Amps 43409 4mm Terminal 0,5-4mm 6mm 32 Amps 43401 6mm Terminal 0,5-6mm 7mm 41 Amps 43402 10mm Terminal 1,5-10mm 9mm 57 Amps 43403 16mm Terminal 2,5-25mm 12mm 101 Amps 43404 35mm Terminal 6-50mm 16mm 150 Amps 43405 70mm Terminal 16-70mm 26mm 192 Amps *Fully insulated (No end plate required)
R 9.57 - R 226.04
-

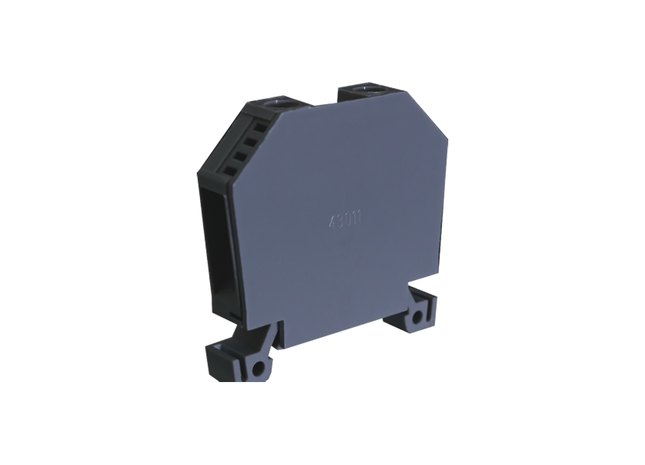

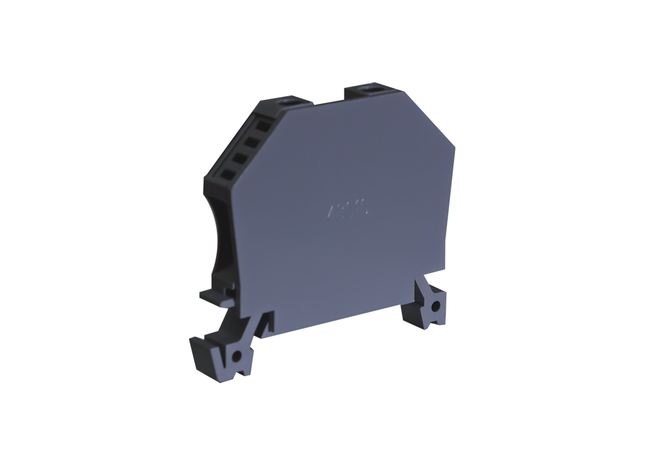

End plates for standard terminals - Polyamide 6.6
End plates for standard terminals - Polyamide 6.6 STOCK CODE DESCRIPTION 43010 2,5mm & 4mm End Plate 43011 6mm & 10mm End Plate 43013 16mm End Plate 43014 35mm End Plate
R 4.78 - R 8.37
-

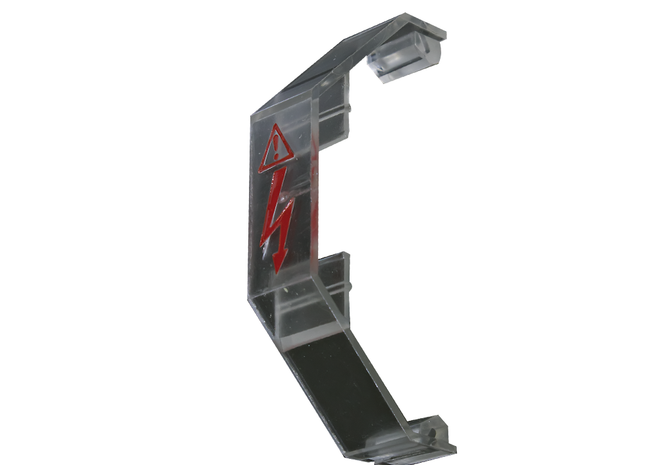

Protective covers for standard terminals
Protective covers for standard terminals STOCK CODE DESCRIPTION 43035 2,5mm Protective Cover 43030 4mm Protective Cover 43031 6-10mm Protective Cover 43033 16mm Protective Cover 43034 35mm Protective Cover
R 8.37 - R 13.16
-

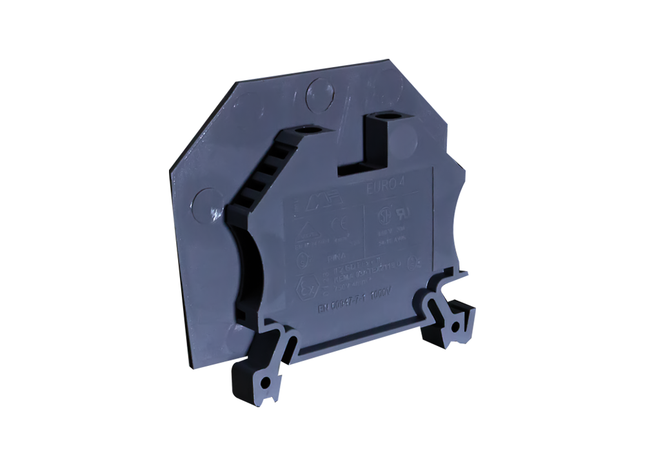

Division plates for standard terminals
Division plates for standard terminals STOCK CODE DESCRIPTION 43015 2,5mm - 4mm Division Plate 43016 6mm - 10mm Division Plate
R 5.98 - R 7.18
-

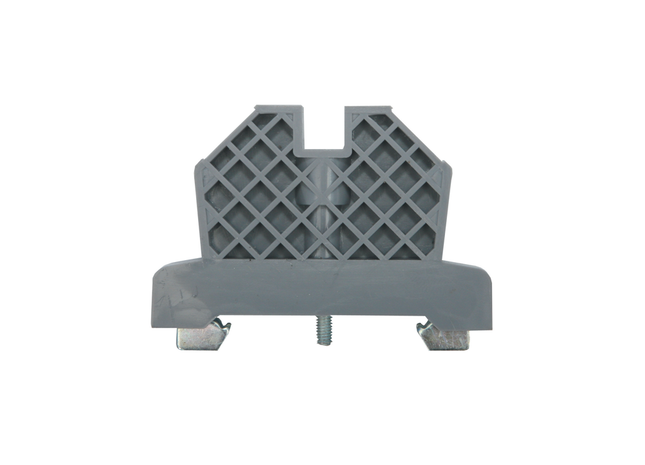

End stops for all terminals
End stops for all terminals STOCK CODE DESCRIPTION 43442 Terminal End Stop (Metallic Clamp) 43444 ECONO Terminal End Stop
R 10.76 - R 13.16
-

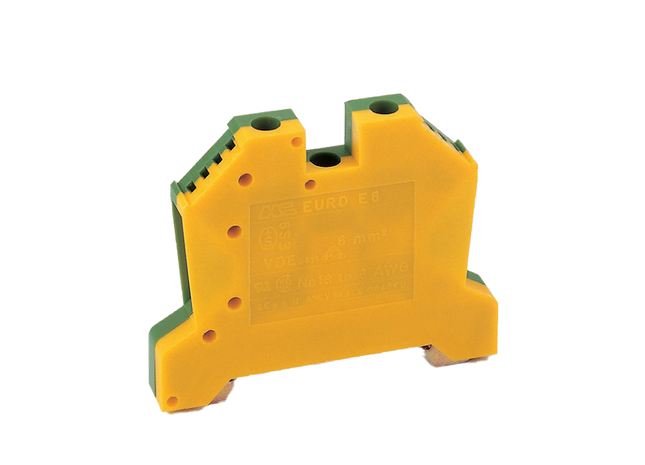

Earth terminal (Green/Yellow) - Polyamide 6.6
Earth terminal (Green/Yellow) - Polyamide 6.6 STOCK CODE DESCRIPTION Wire Size Terminal Width 43454 4mm Earth Terminal 0,5-4mm 7mm 43450 6mm Earth Terminal 0,5-6mm 8mm 43458 10mm Earth Terminal 1,5-10mm 10mm 43451 25mm Earth Terminal 1,5-25mm 12mm 43457 50mm Earth Terminal 2,5-50mm 16mm
R 47.84 - R 162.66
-

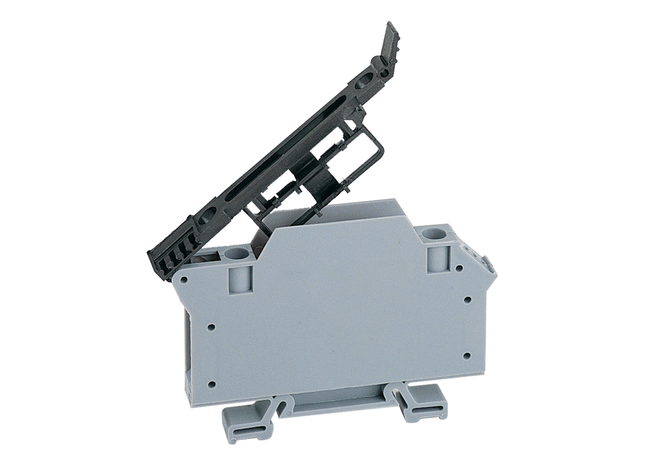

Fused terminals - (Polyamide 6.6)
Fused terminals - (Polyamide 6.6) STOCK CODE DESCRIPTION Terminal Width 43445 H 4mm fused terminal 10mm 43446 H 4mm disconnecting terminal 10mm
R 64.58 - R 81.33
-

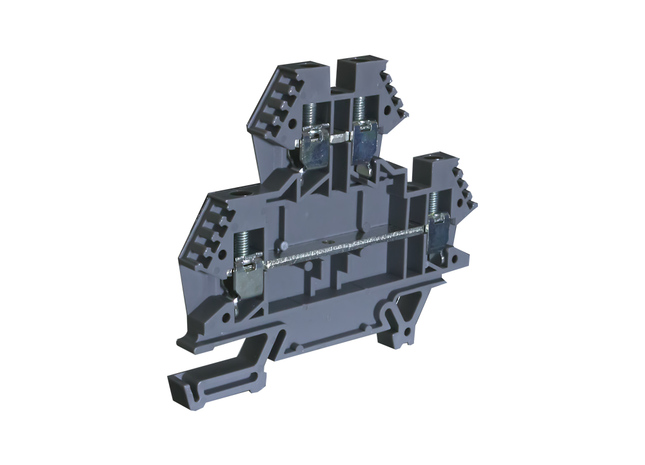

Two & Three tier terminals - (Polyamide 6.6)
Two & Three tier terminals - (Polyamide 6.6) STOCK CODE DESCRIPTION Wire Size Terminal Width Rated Current 43550 4mm TWO TIER terminal 0,5-4mm 6mm 32 Amps 43504 2,5mm THREE TIER terminal 0,5-2,5mm 5,3mm 24 Amps
R 41.86 - R 55.02
-
End Plates for Two tier terminals - Polyamide 6.6
4mm End Plates for Two tier terminals - Polyamide 6.6
R 8.37
-

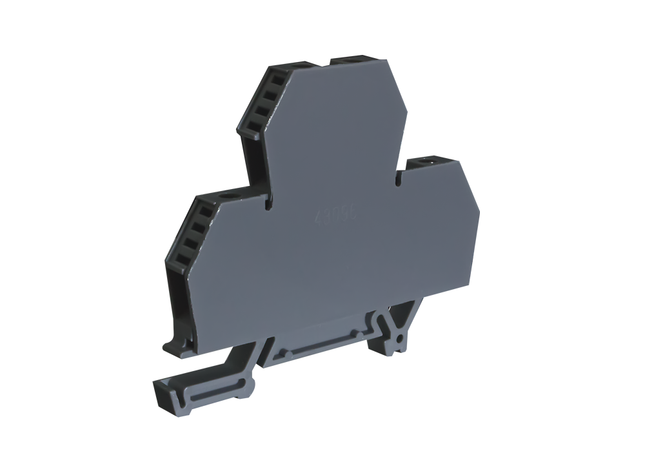

Protective covers for Two tier terminals - (Polycarbonate)
4mm Protective covers for Two tier terminals - (Polycarbonate)
R 7.18
-
End plates for Three tier terminals - (Polyamide 6.6)
2.5mm End plates for Three tier terminals - (Polyamide 6.6)
R 8.67
-

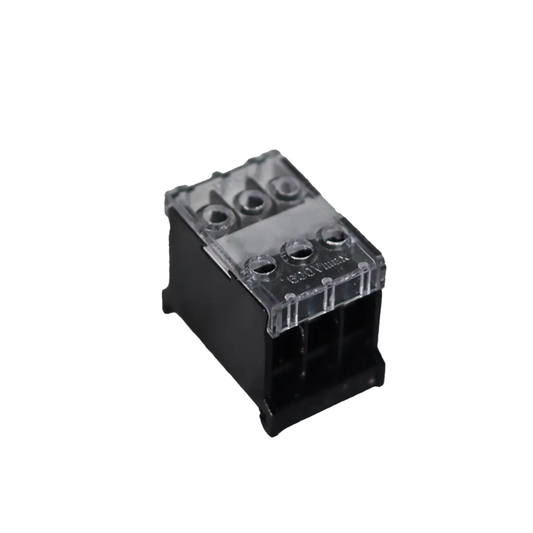

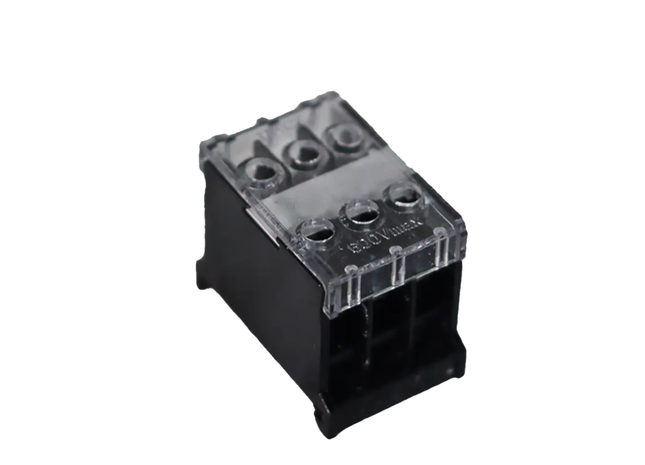

Din rail terminals with covers
STOCK CODE DESCRIPTION WIRE SIZE RATED CURRENT IN12BK 2 Way Terminal Block 2.5mm 20Amps IN13SBK 3 Way Terminal Block 2.5mm 15Amps IN20BK 3 Way Terminal Block 4.0mm 30Amps IN30BK 3 Way Terminal Block 10mm 50Amps IN411S 1 Way Terminal Block 16mm 60Amps IN60BK 1 Way Terminal Block 25mm 90Amps IN100K 1 Way Terminal Block 35mm 130Amps IN200K 1 Way Terminal Block 95mm 240Amps IN400K 1 Way Terminal Block 195mm 370Amps
R 17.94 - R 441.32
-

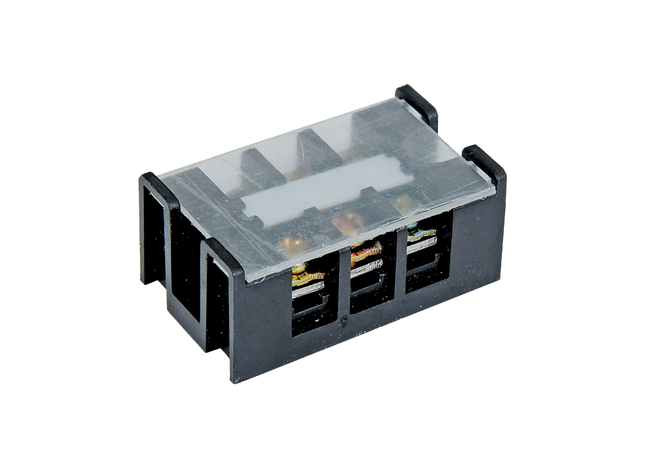

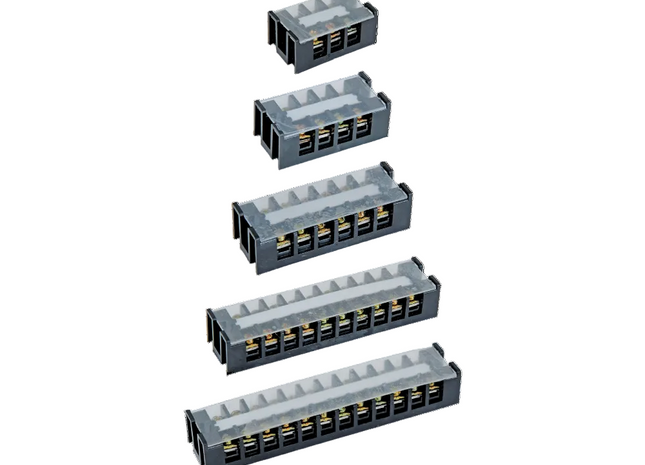

Base mount terminals with covers
STOCK CODE DESCRIPTION WIRE SIZE RATED CURRENT TB-25A-3P 3 Way Terminal Block 2.5mm 25Amps TB-25A-4P 4 Way Terminal Block 2.5mm 25Amps TB-25A-6P 6 Way Terminal Block 2.5mm 25Amps TB-25A-10P 10 Way Terminal Block 2.5mm 25Amps TB-25A-12P 12 Way Terminal Block 2.5mm 25Amps TB-35A-3P 3 Way Terminal Block 4mm 35Amps TB-35A-4P 4 Way Terminal Block 4mm 35Amps TB-35A-6P 6 Way Terminal Block 4mm 35Amps TB-35A-10P 10 Way Terminal Block 4mm 35Amps TB-35A-12P 12 Way Terminal Block 4mm 35Amps
R 8.97 - R 45.45
-

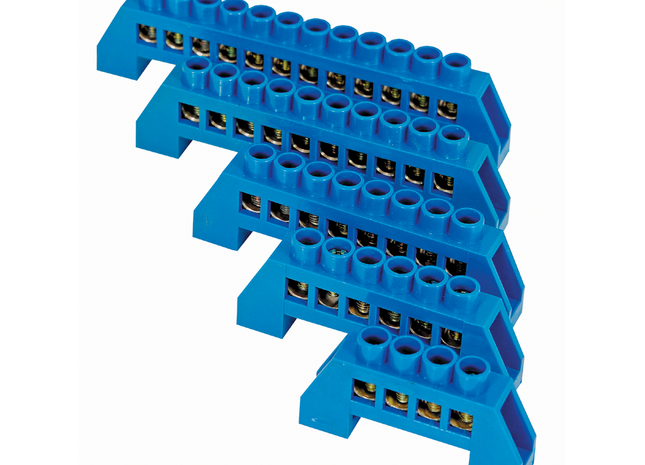

Fully Insulated Neutral Bar - Blue
STOCK CODE DESCRIPTION BD8-12-4K 8 x 12mm Insulated Neutral Bar 4 Way Screw On BD8-12-6K 8 x 12mm Insulated Neutral Bar 6 Way Screw On BD8-12-8K 8 x 12mm Insulated Neutral Bar 8 Way Screw On BD8-12-10K 8 x 12mm Insulated Neutral Bar 10 Way Screw On BD8-12-12K 8 x 12mm Insulated Neutral Bar 12 Way Screw On
R 29.90 - R 56.21
-

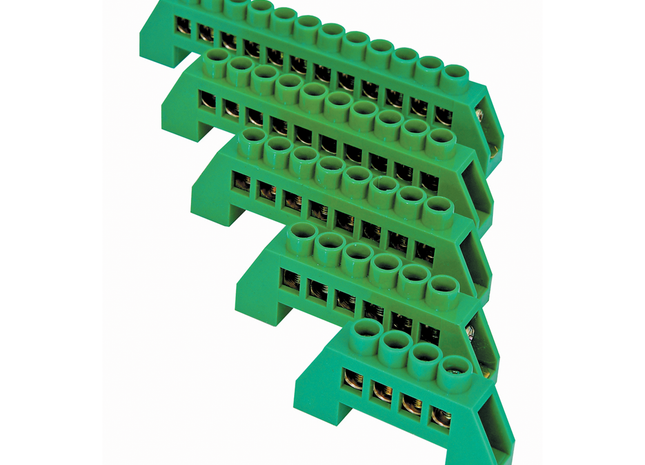

Fully Insulated Earth Bar + Stud - Green
STOCK CODE DESCRIPTION G8-12-4K 8 x 12mm Insulated Earth Bar 4 Way Screw On G8-12-6K 8 x 12mm Insulated Earth Bar 6 Way Screw On G8-12-8K 8 x 12mm Insulated Earth Bar 8 Way Screw On G8-12-10K 8 x 12mm Insulated Earth Bar 10 Way Screw On G8-12-12K 8 x 12mm Insulated Earth Bar 12 Way Screw On
R 26.31 - R 56.21
-

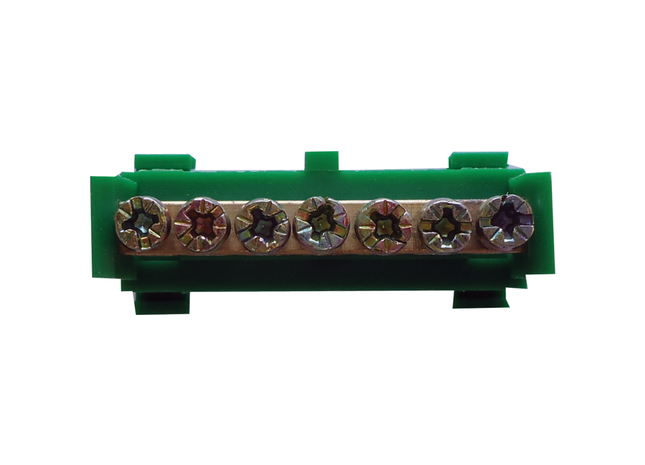

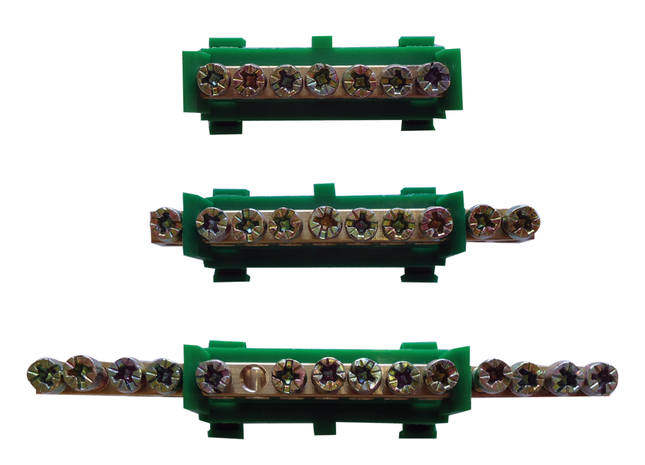

Clip On Din Rail Earth Bar
STOCK CODE DESCRIPTION KM13/E-7 7 Way Earth Bar KM13/E-10 10 Way Earth Bar KM13/E-12 12 Way Earth Bar KM13/E-13 13 Way Earth Bar KM13/3-15 15 Way Earth Bar
R 23.04 - R 46.07
-

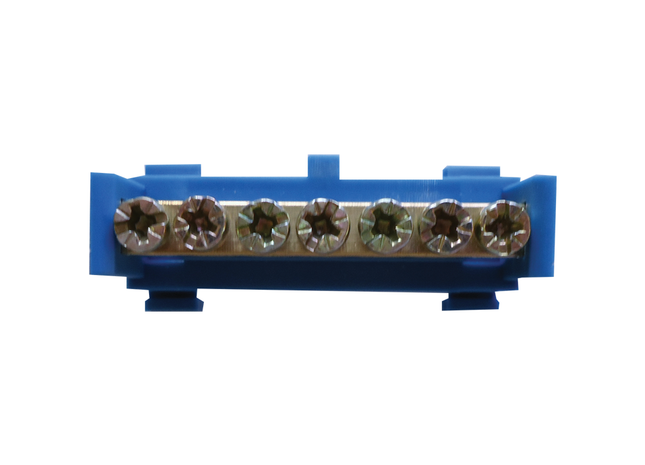

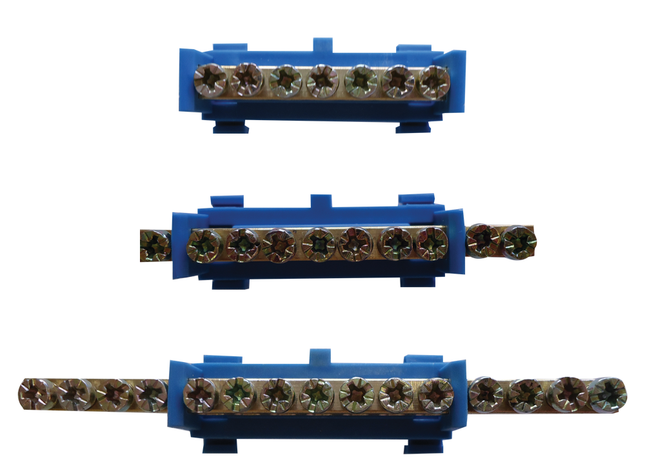

Clip On Din Rail Neutral Bar
STOCK CODE DESCRIPTION KM13/N-7 7 Way Neutral Bar KM13/N-10 10 Way Neutral Bar KM13/N-12 12 Way Neutral Bar KM13/N-13 13 Way Neutral Bar KM13/N-15 15 Way Neutral Bar
R 23.04 - R 46.07
-

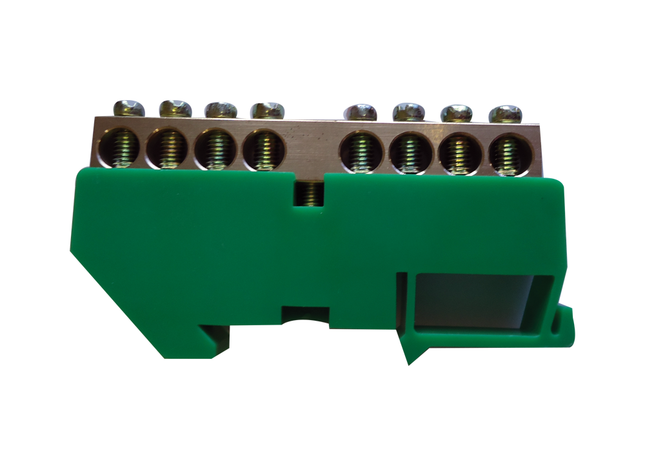

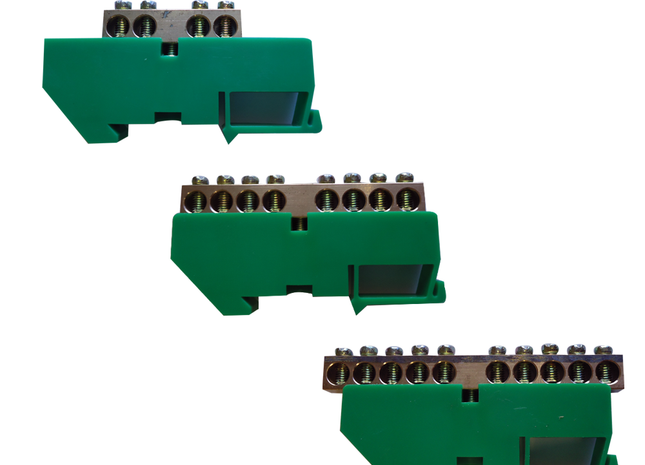

Clip On Din Rail Earth Bar
STOCK CODE DESCRIPTION JHS05-0812E-4 4 Way Earth Bar JHS05-0812E-6 6 Way Earth Bar JHS05-0812E-8 8 Way Earth Bar JHS05-0812E-10 10 Way Earth Bar JHS05-0812E-12 12 Way Earth Bar
R 34.68 - R 63.08
-

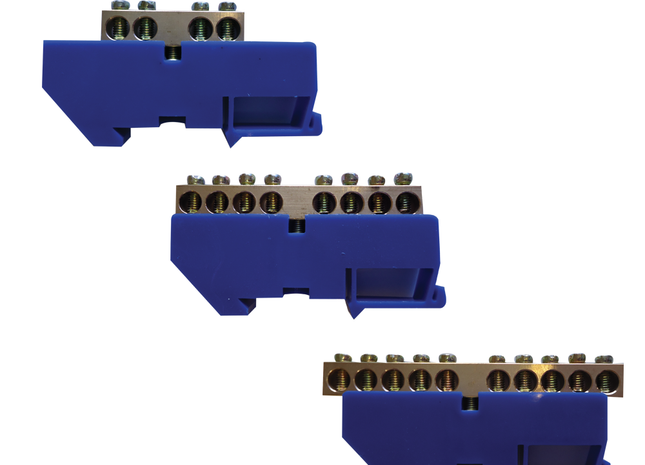

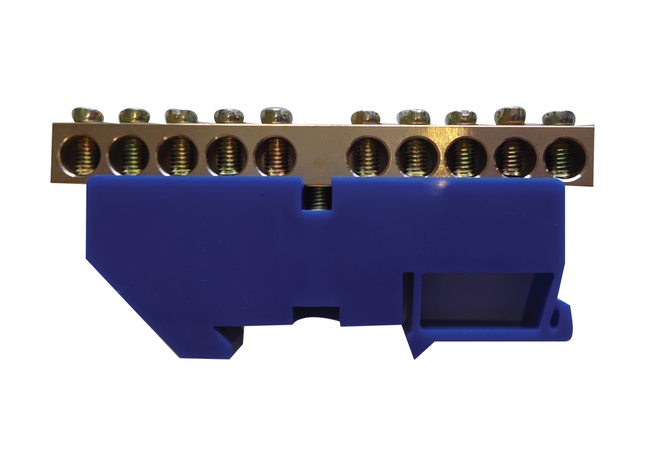

Clip On Din Rail Neutral Bar
STOCK CODE DESCRIPTION JHS05-0812N-4 4 Way Neutral Bar JHS05-0812N-6 6 Way Neutral Bar JHS05-0812N-8 8 Way Neutral Bar JHS05-0812N-10 10 Way Neutral Bar JHS05-0812N-12 12 Way Neutral Bar
R 34.68 - R 56.75
-

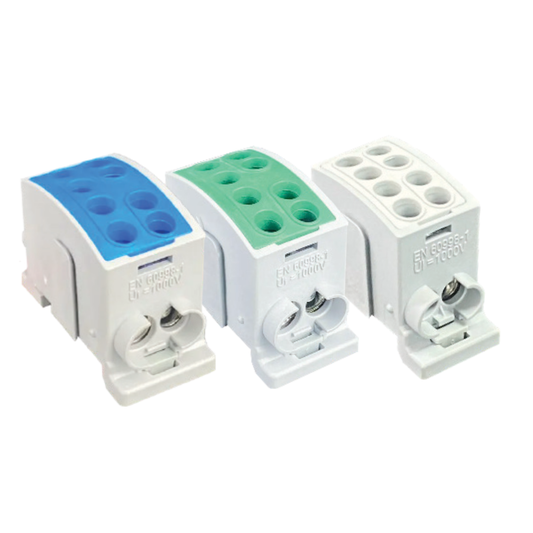

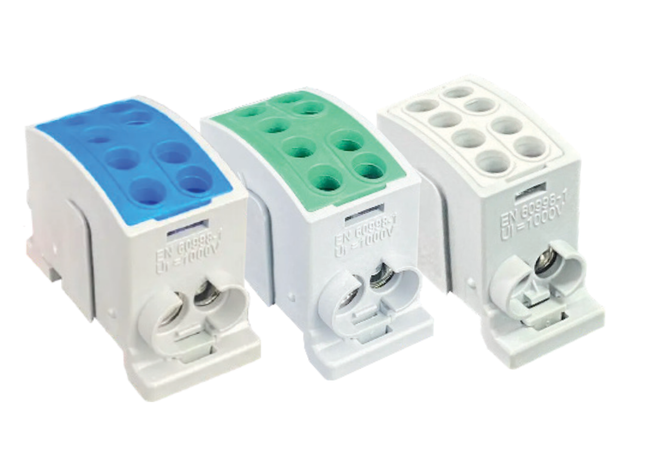

150A 25mm 2 Way Din Rail Terminal Block
150A, 2 Way, AC Only; Ui=1000V; Torque: 2.5/2 Cu (Nm) Terminals per pole: In 1 x 25mm2; Out 1 x 25mm2 | In 1 x 16mm2; Out 1 x 16mm2 Dimensions L x D x W: 48.6 × 36.5 x 23.5mm BL = Blue (Neutral) | GR = Green (Earth) | GY = Grey (Line) SKU: TB25162W-
R 59.80
-

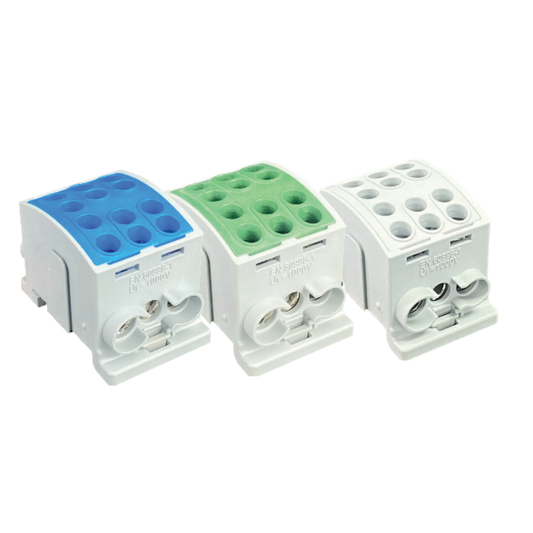

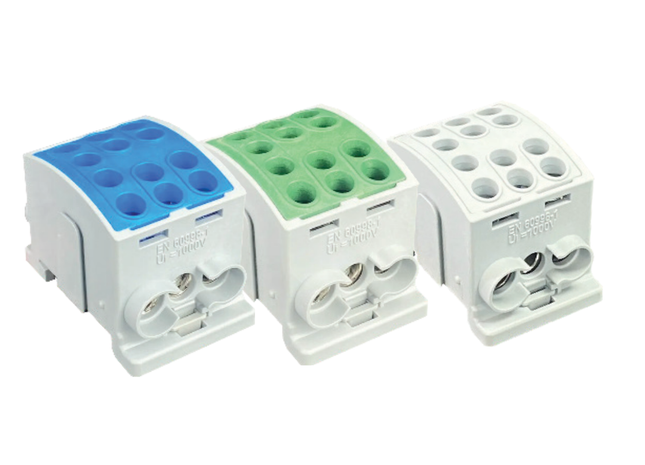

215A 25mm 3 Way Din Rail Terminal Block
215A, 3 Way, AC Only; Ui=1000V; Torque: 2.5/2 Cu (Nm) Terminals per pole: In 1 x 25mm2; Out 1 x 25mm2 | In 2 x 16mm2; Out 2 x 16mm2 Dimensions L x D x W: 48.6 × 36.5 x 31mm BL = Blue (Neutral) | GR = Green (Earth) | GY = Grey (Line) SKU: TB25163W-
R 80.13
-
280A 25mm 4 Way Din Rail Terminal Block
280A, 4 Way, AC Only; Ui=1000V; Torque: 2.5/2 Cu (Nm) Terminals per pole: In 1 x 25mm2; Out 1 x 25mm2 | In 3 x 16mm2; Out 3 x 16mm2 Dimensions L x D x W: 48.6 × 36.5 x 38.5mm BL = Blue (Neutral) | GR = Green (Earth) | GY = Grey (Line) SKU: TB25164W-
R 102.85
-

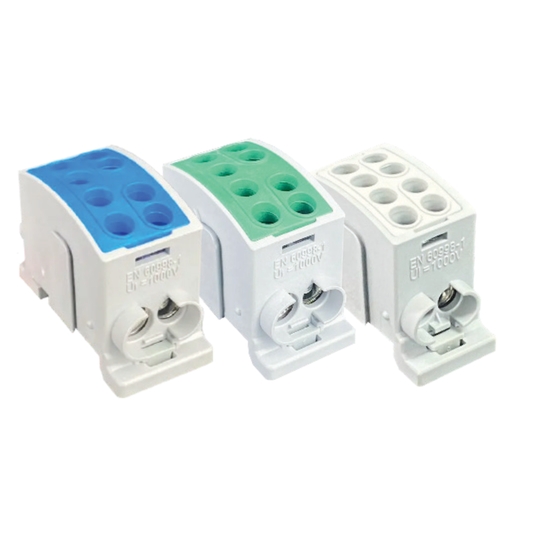

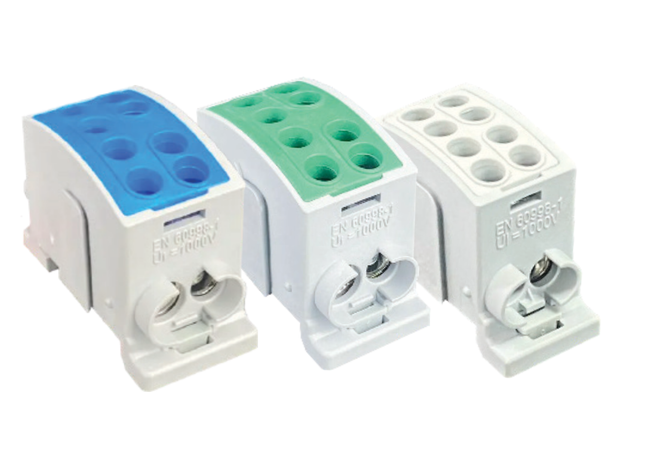

185A 35mm 2 Way Din Rail Terminal Block
185A, 2 Way, AC Only; Ui=1000V; Torque: 3/2.5 Cu (Nm) Terminals per pole: In 1 x 35mm2; Out 1 x 35mm2 | In 1 x 25mm2; Out 1 x 25mm2 Dimensions L x D x W: 55 × 38.5 x 27.5mm BL = Blue (Neutral) | GR = Green (Earth) | GY = Grey (Line) SKU: TB35252W-
R 92.09
-

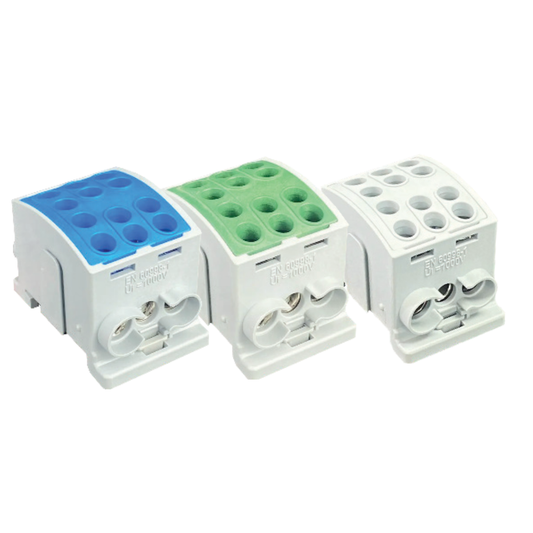

270A 35mm 3 Way Din Rail Terminal Block
270A, 3 Way, AC Only; Ui=1000V; Torque: 3/2.5 Cu (Nm) Terminals per pole: In 1 x 35mm2; Out 1 x 35mm2 | In 2 x 25mm2; Out 2 x 25mm2 Dimensions L x D x W: 55 × 38.5 x 37mm BL = Blue (Neutral) | GR = Green (Earth) | GY = Grey (Line) SKU: TB35253W-
R 131.56
