Thermal overload relays & accessories (small frame, medium frame & large frame)
Thermal Bi-Metal
Overload Relays
-

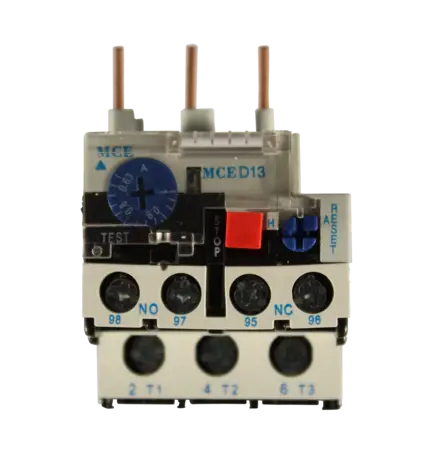

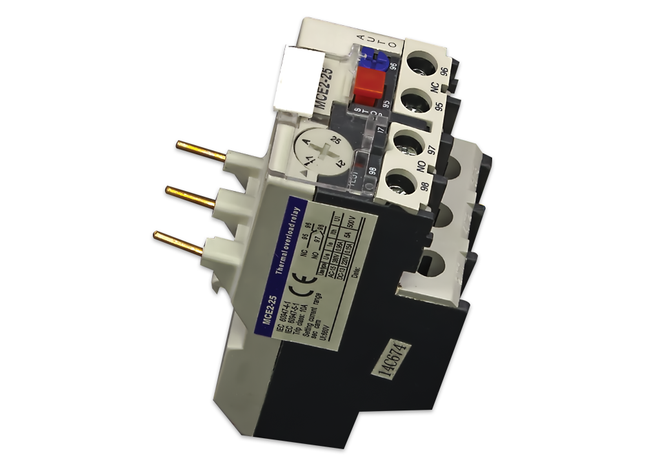

Small Frame - Suitable for MCE-D09 - D32 contactors
STOCK CODE CURRENT RATING AMPS 400V KW 400V HP DIMENSIONS MCE2-D130.25 0.16-0.25 0.06 - 90 x 44 x 60 MCE2-D130.4 0.25-.040 0.09 1/8 90 x 44 x 60 MCE2-D130.63 0.40-0.63 0.20 1/4 90 x 44 x 60 MCE2-D131.0 0.63-1.0 0.37 1/2 90 x 44 x 60 MCE2-D1316.0 1.0-1.6 0.55 3/4 90 x 44 x 60 MCE2-D132.0 1.25-2.0 0.57 3/4 90 x 44 x 60 MCE2-D132.5 1.6-2.5 0.75 1 90 x 44 x 60 MCE2-D134.0 2.5-4.0 1.5 2 90 x 44 x 60 MCE2-D136.0 4.0-6.0 2.2 3 90 x 44 x 60 MCE2-D138.0 5.5-6.0 3.0 4 90 x 44 x 60 MCE2-D1310.0 7-10 4.0 5 90 x 44 x 60 MCE2-D1313.0 9-13 5.5 7.5 90 x 44 x 60 MCE2-D1318.0 12-18 7.5 10 90 x 44 x 60 MCE2-D1325.0 17-25 11 15 90 x 44 x 60 MCE2-D1332.0 23.0-32.0 15 20 90 x 44 x 60
R 195.85 - R 249.67
-

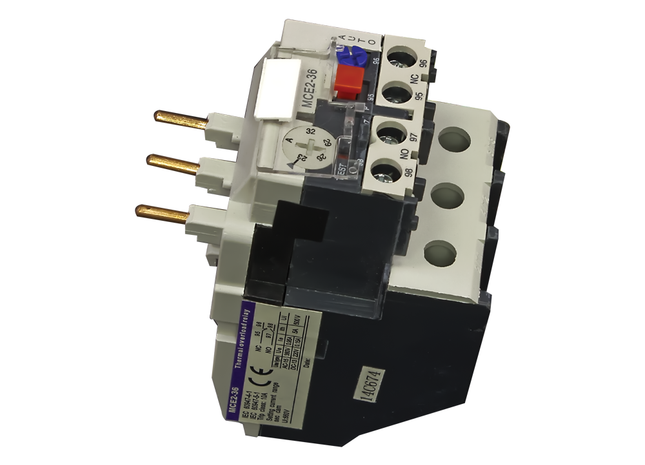

Medium Frame - Suitable for MCE-D25 - D38 contactors
STOCK CODE CUREENT RATING AMPS 400V kW 400V HP DIMENSIONS (mm) HxWxD MCE2-D2332.0 23-32 15 20 90 x 54 x 70 MCE2-D2340.0 30-40 18.5 25 90 x 54 x 70
R 249.67
-

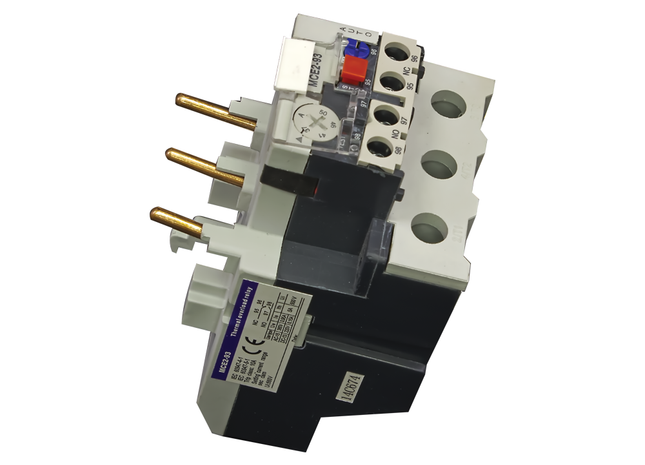

Large Frame - Suitable for MCE-D40 - D95 contactors
STOCK CODE CURRENT RATING AMPS 400V kW 400V HP DIMENSIONS (mm) HxWxD MCE2-D3332.0 23-32 15 20 112 x 74 x 80 MCE2-D3336.0 28-36 18.5 25 112 x 74 x 80 MCE2-D3340.0 30-40 18.5 25 112 x 74 x 80 MCE2-D3350.0 37-50 22 30 112 x 74 x 80 MCE2-D3365.0 48-65 30 40 112 x 74 x 80 MCE2-D3370.0 55-70 30 40 112 x 74 x 80 MCE2-D3380.0 63-80 37 50 112 x 74 x 80 MCE2-D3393.0 80-93 45 60 112 x 74 x 80 MCE2-D43120 95-120 55 75 112 x 74 x 80 MCE2-D43140 110-140 70 100 112 x 74 x 80
R 445.51 - R 979.97
-

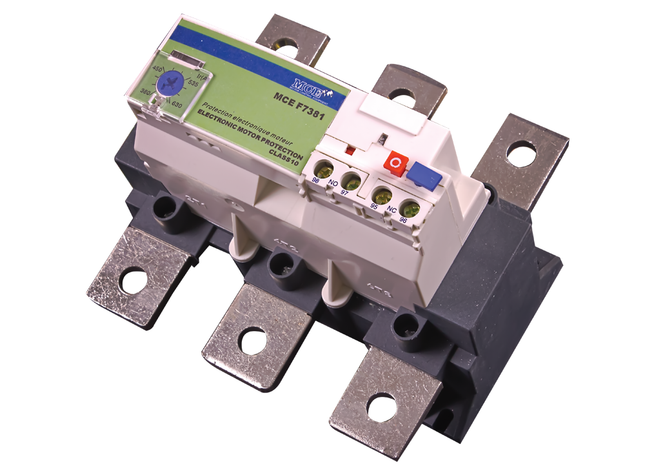

Large Frame - suitable for MCE-F range contactors
STOCK CODE CURRENT RATING AMPS 400V kW 400V HP DIMENSIONS (mm) H x W x D MR9-F200-150 90-150 75 100 112 x 95 x 135 MR9-F200-220 132-220 110 150 112 x 95 x 135 MR9-F630-330 200-330 160 220 155 x 140 x 135 MR9-F630-500 300-500 250 - 155 x 140 x 135 MR9-F630-630 380-630 315 - 155 x 140 x 135
R 4,365.40 - R 5,790.88
-

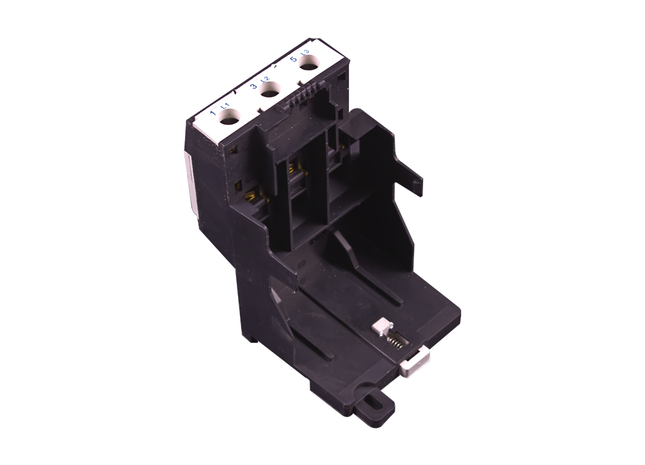

Free standing base for overloads (Small, Medium & Large)
Free standing base for overloads (Small, Medium & Large) CA7-D13 - Free Standing Base for Overloads MCE2 - 25 (Small Frame) (MCE2-25) CA7-D23 - Free Standing Base for Overloads MCE2 - 36 (Medium Frame)(MCE2-36) CA7-D33 - Free Standing Base for Overloads MCE2 - 93 (Large Frame)(MCE2-93)
R 56.59 - R 121.26
