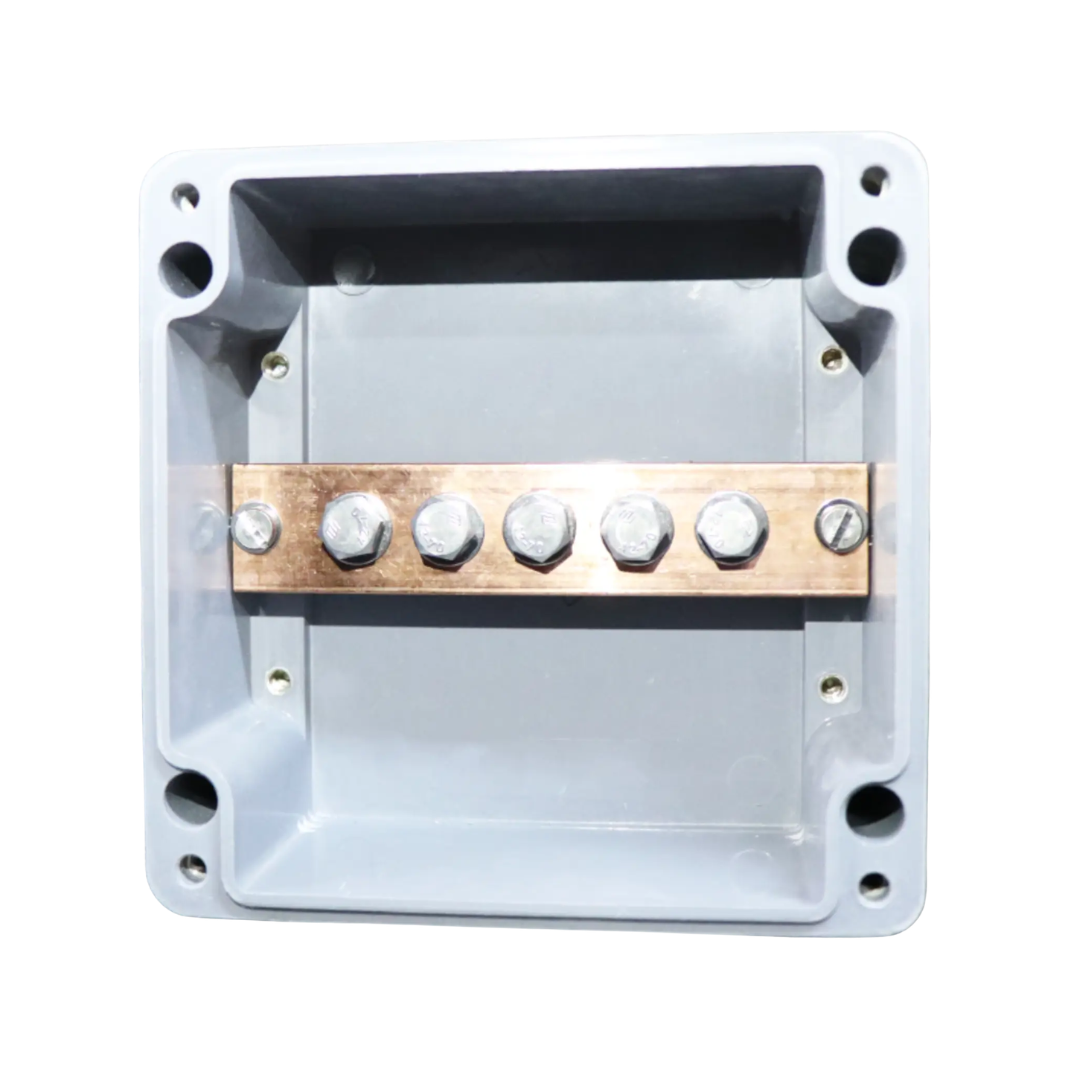

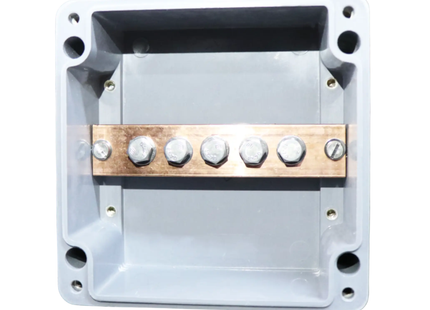

Allbro 5 Hole Battery Busbar Box
Allbro 5 Hole Battery Busbar Box
Allbro 5 Hole Battery Busbar Box
External Dimensions (mm): 160H x 160W x 95D
Bolt size: M8
No. of termination points: 5
Copper busbar size: 10H x 160W x 30D
IP Rating: IP68
The Battery Busbar Box range ticks all the boxes for electrical installations. It’s completely waterproof with an IP68 rating and strong enough to handle all kinds of weather. The box is non-conductive and flame-retardant, which makes it ideal for solar where the risk of DC arcs increases. GRP (Glass Reinforced Polyester) material is rust-free with a 25+ year UV life for long term performance.
- Max rating 600A (calculated at 2A/mm2)
- M8 holes drilled and taped 24mm apart
Included in the box:
- M8 12mm stainless steel bolts
- M8 stainless steel spring washers
- M8 stainless steel flat washer
- 1 x Drilling template
SKU: 060-687
If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, Please contact us via email - sales@mapleleafelectrical.co.za or Call-064 086 3515
