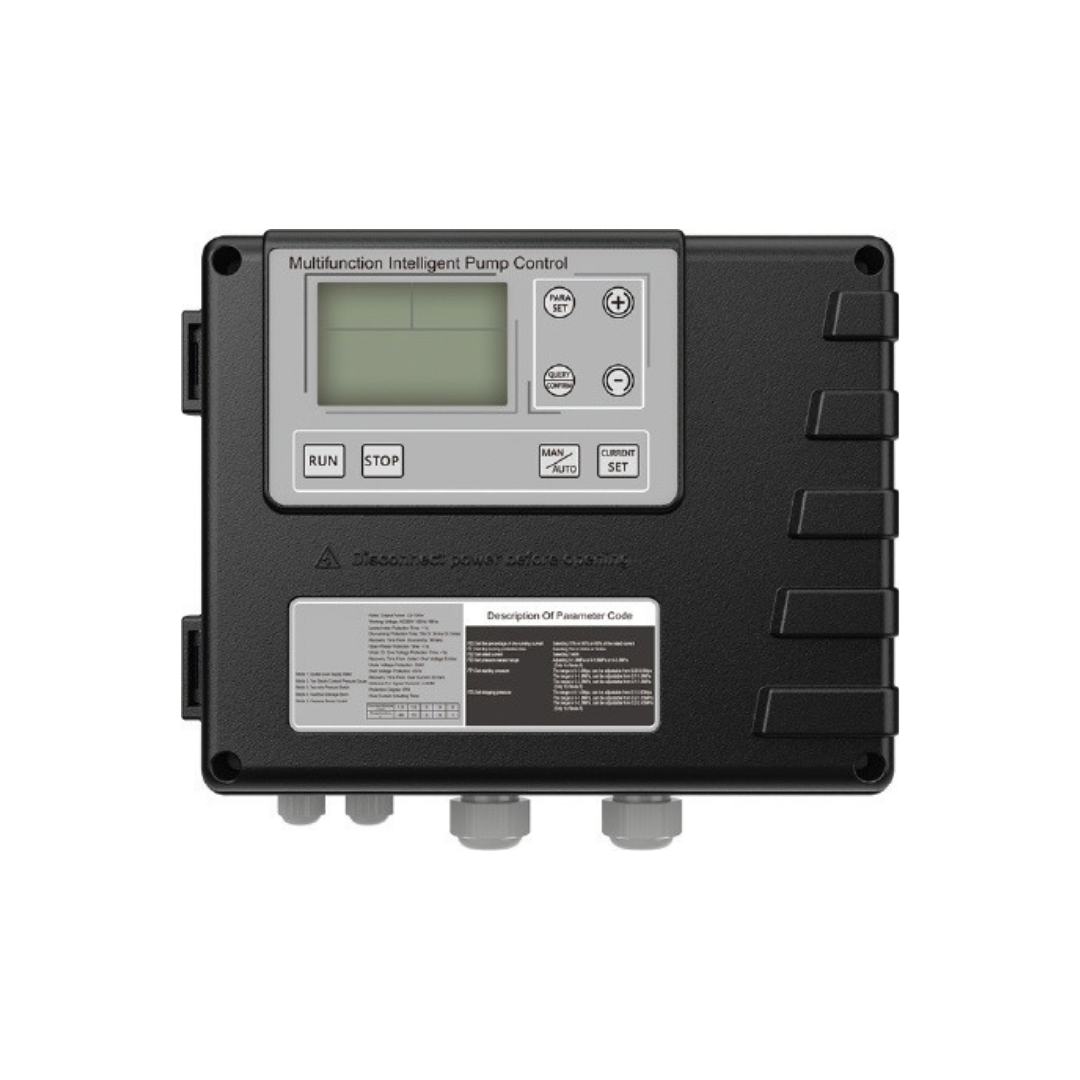

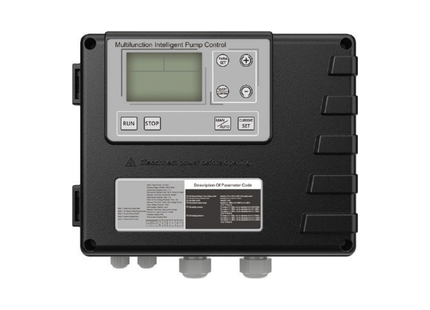

Single Phase Single Pump Controller

• It is applicable for automatic level, pressure control and protection of single-phase submersible borehole pump and pipeline pump etc.
• started directly from 0.37-3KW 1Phase;
• Auto Manual control;
• Five working modes: with pressure sensor; with float switch; with liquid level sensor; with mechanical pressure switch and with electrical contact pressure gauge, and is suitable for various working conditions;
• Under/Over voltage protection;
• Over current protection;
• Short circuit protection;
• Built-in start capacitor is available.
• Built-in MCB;
• Current one key set automatic or manually:
• Dry-running protects acting time adjustable (10 seconds, 3mins, 5mins),suitable for various pump and working conditions;
• Dry-running current value adjustable (70%,80%,85% of rated current);
• HS-1P-LDP built-in AC contactor, suitable for submersible pump with 2.2-3KW and motor line within 200 meters:
• Dry-running protection with sensor free;
• LCD screen displays voltage, current value:
• LCD displays fault information and alarm;
• It can be configured according to user’s requirements.

WILL WORK WITH ALL MCE PUMPS, EXCEPT SUBMERSIBLE PUMPS

SKU: HS-1P-LDP
