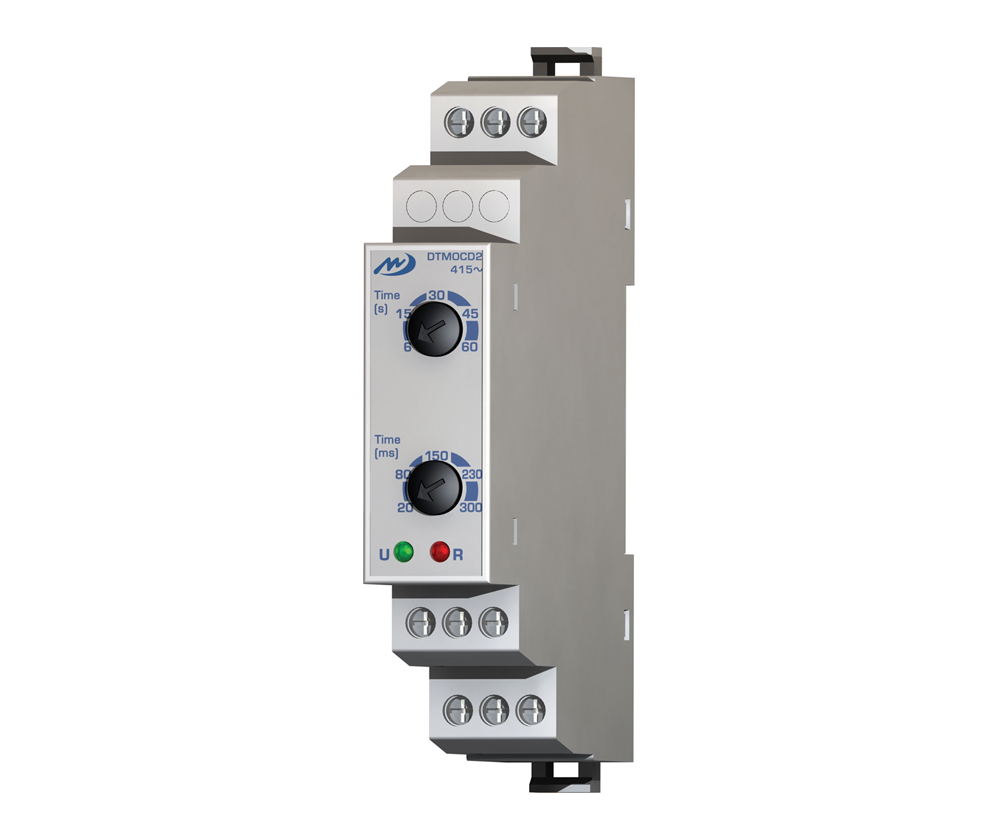

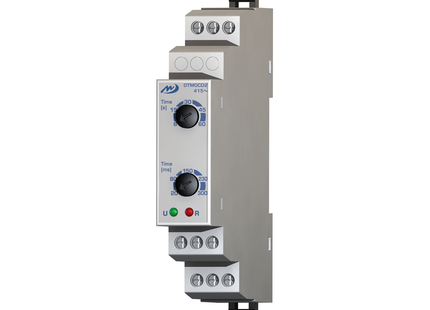

Star Delta Timer 24VAC/DC, 115VAC
Star Delta Timer 24VAC/DC, 115VAC
- Compact Size - 1 Module - Out 2 Contact SPDT
- Time range:
ST: 6-60 sec
TR: 20-300 ms
- Energise after delay - Universal Supply
- Din Rail EN50.022
POWER SUPPLY:
AC: 24V-115 Hz: 47-63 AC/DC: 24V
Max Consumption: 3,9VA
Time Range: ST: 6-60 sec
TR:20-300ms
OUTPUT RELAY (x2):
Contact: SPDT
Current: 8A
Voltage: 250VAC
Temperature: Work:-10/+50 ̊C
Electrical Strength: 4kV
Protection Degree: IP40
Relative Humidity: 95 RH%
Weight: 65g
Dimensions:
98 x 17,5 x 64mm
