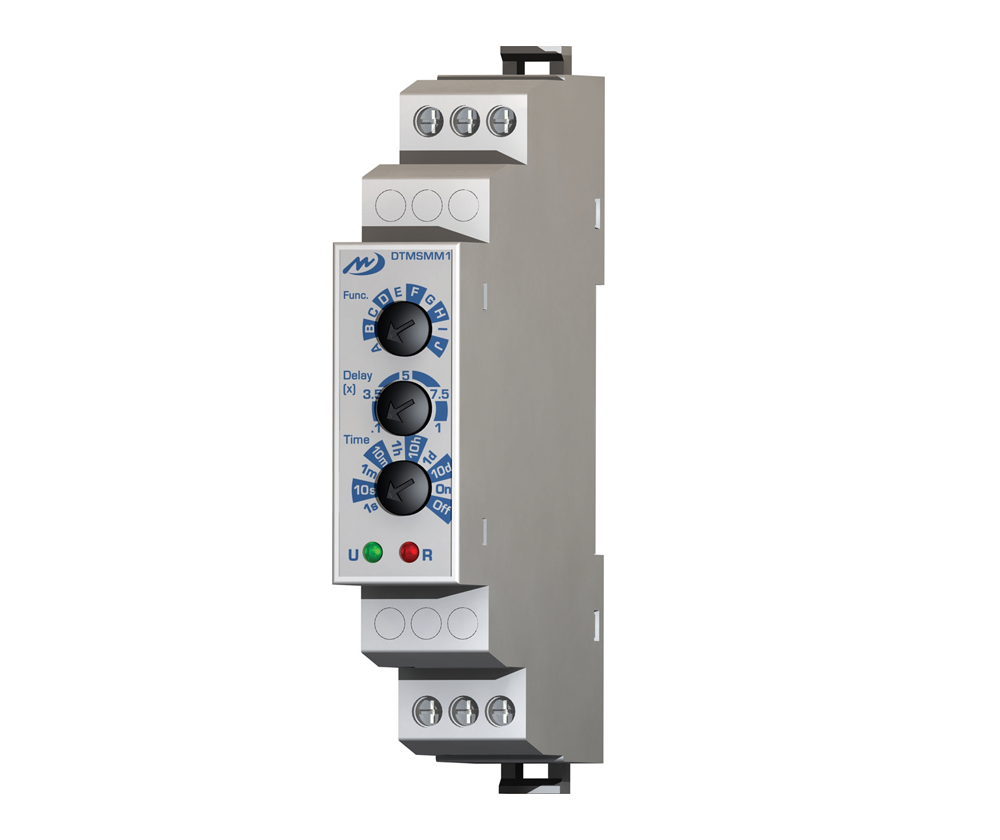

Multi-Function Voltage Din Timer

Description

- Compact Size - 1 Module - Out 1 Contact SPDT
- Time range 0,1s-10 days - 10 Function Selectable

  • Universal Supply
    - Din Rail EN50.022

  • POWER SUPPLY:
    AC:     24V-240 Hz: 47-63 DC: 24V-110
    Max Consumption: 8,5VA

    Time Range: 0,1s-10 days

    Min S Impulse: 25ms OUTPUT RELAY:
    Contact:     SPDT
    Current: 8A
    Voltage: 250VAC

    Temperature: Work:-10/+50 ̊C

    Electrical Strength: 4kV

    Protection Degree: IP40

    Relative Humidity:95 RH%

    Weight: 65g

    Dimensions:98 x 17,5 x 64mm

Read more

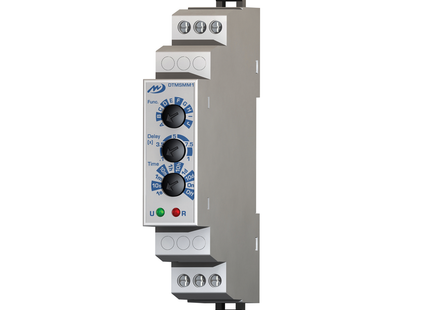

Multi-Function Voltage Din Timer

Product form

- Compact Size - 1 Module - Out 1 Contact SPDT- Time range 0,1s-10 days - 10 Function Selectable Universal...

Free pickup in our shop(s)
Split your purchase with interest-free payments from R 80.98/m

Make your first payment today, then monthly over 2–6 months.

R 485.88 Incl. VAT

    We accept

    Visa Mastercard Apple Pay Google Pay Capitec Pay

    • Guaranteed secure & safe checkout.

      <p>Guaranteed <b>secure & safe</b> checkout.</p>
    • If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, Please contact us via email - sales@mapleleafelectrical.co.za or call-064 086 3515

    Description

    - Compact Size - 1 Module - Out 1 Contact SPDT
    - Time range 0,1s-10 days - 10 Function Selectable

    • Universal Supply
      - Din Rail EN50.022

    • POWER SUPPLY:
      AC:       24V-240 Hz: 47-63 DC: 24V-110
      Max Consumption: 8,5VA

      Time Range: 0,1s-10 days

      Min S Impulse: 25ms OUTPUT RELAY:
      Contact:       SPDT
      Current: 8A
      Voltage: 250VAC

      Temperature: Work:-10/+50 ̊C

      Electrical Strength: 4kV

      Protection Degree: IP40

      Relative Humidity:95 RH%

      Weight: 65g

      Dimensions:98 x 17,5 x 64mm

    Read more
