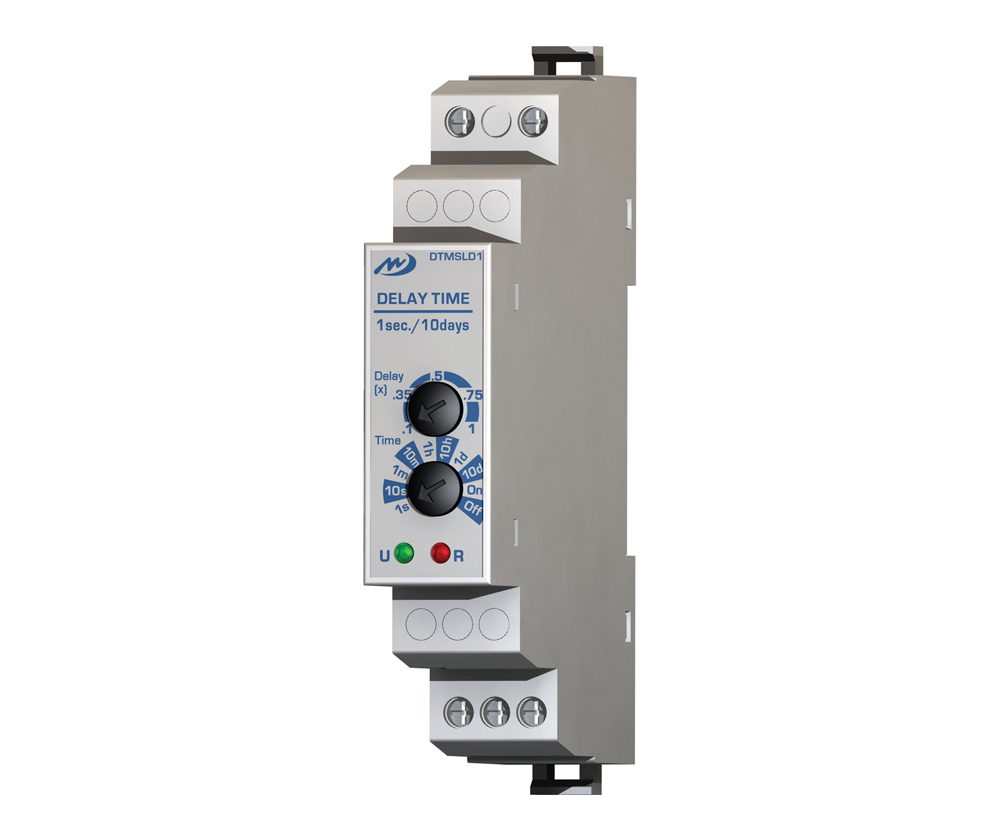

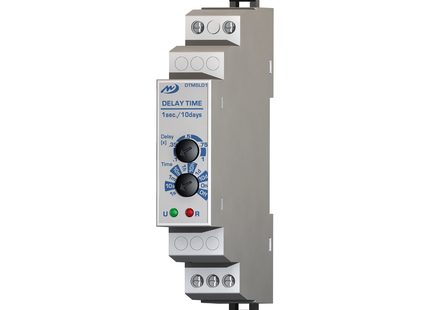

Timer (On Delay) 0.1s-10d Multi Volt Din Timer

Description

- Compact Size - 1 Module - Out 1 Contact SPDT
- Time range 0,1s-10 days - Energise after Delay

  • Universal Supply
    - Din Rail EN50.022
  • POWER SUPPLY:
    AC:
    24V-240 Hz: 47-63 DC: 24V-110
    Max Consumption: 8,5VA Time Range: 0,1s-10 days

    OUTPUT RELAY:
    Contact:
    SPDT
    Current: 8A
    Voltage: 250VAC

    Temperature: Work:-10/+50 ̊C

    Electrical Strength: 4kV

    Protection Degree: IP40

    Relative Humidity:95 RH%

    Weight: 60g

    Dimensions:

    98 x 17,5 x 64mm

Timer (On Delay) 0.1s-10d Multi Volt Din Timer

Product form

- Compact Size - 1 Module - Out 1 Contact SPDT- Time range 0,1s-10 days - Energise after Delay Universal...

Free pickup in our shop(s)

R 463.45 Incl. VAT

    • Guaranteed secure & safe checkout.

      <p>Guaranteed <b>secure & safe</b> checkout.</p>
    • If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, Please contact us via email - sales@mapleleafelectrical.co.za or call-064 086 3515

    Description

    - Compact Size - 1 Module - Out 1 Contact SPDT
    - Time range 0,1s-10 days - Energise after Delay

    • Universal Supply
      - Din Rail EN50.022
    • POWER SUPPLY:
      AC:
      24V-240 Hz: 47-63 DC: 24V-110
      Max Consumption: 8,5VA Time Range: 0,1s-10 days

      OUTPUT RELAY:
      Contact:
      SPDT
      Current: 8A
      Voltage: 250VAC

      Temperature: Work:-10/+50 ̊C

      Electrical Strength: 4kV

      Protection Degree: IP40

      Relative Humidity:95 RH%

      Weight: 60g

      Dimensions:

      98 x 17,5 x 64mm
