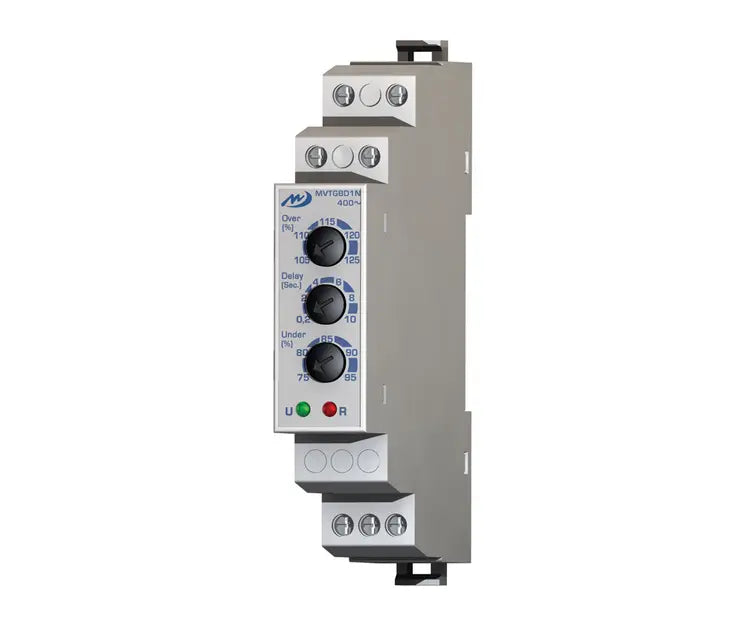

Under/Over Voltage Relay Phase Failure Phase Sequence

Description

Compact Size 1 Module, Out 1 Contact SPDT, Adj Under: 7595% Vn, Adj Over: 105125% Vn, Time range 0,210 sec, Deenergise after delay, Din Rail EN50.022

POWER SUPPLY: AC: 3 x 400 Hz: 47-63 Max Consumption: 15VA

OUTPUT RELAY: Contact: SPDT Current: 8A Voltage: 250VAC

Temperature: Work:-10/+50 ̊C

Electrical Strength: 4kV

Protection Degree: IP40

Relative Humidity: 95 RH% Weight: 65g

Dimensions: 98 x 17,5 x 64mm

MVTGBD1S

Under/Over Voltage Relay Phase Failure Phase Sequence

Product form

Compact Size 1 Module, Out 1 Contact SPDT, Adj Under: 7595% Vn, Adj Over: 105125% Vn, Time range 0,210 sec,...

Free pickup in our shop(s)

R 967.27 Incl. VAT

    • Guaranteed secure & safe checkout.

      <p>Guaranteed <b>secure & safe</b> checkout.</p>
    • If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, Please contact us via email - sales@mapleleafelectrical.co.za or call-064 086 3515

    Description

    Compact Size 1 Module, Out 1 Contact SPDT, Adj Under: 7595% Vn, Adj Over: 105125% Vn, Time range 0,210 sec, Deenergise after delay, Din Rail EN50.022

    POWER SUPPLY: AC: 3 x 400 Hz: 47-63 Max Consumption: 15VA

    OUTPUT RELAY: Contact: SPDT Current: 8A Voltage: 250VAC

    Temperature: Work:-10/+50 ̊C

    Electrical Strength: 4kV

    Protection Degree: IP40

    Relative Humidity: 95 RH% Weight: 65g

    Dimensions: 98 x 17,5 x 64mm

    MVTGBD1S
