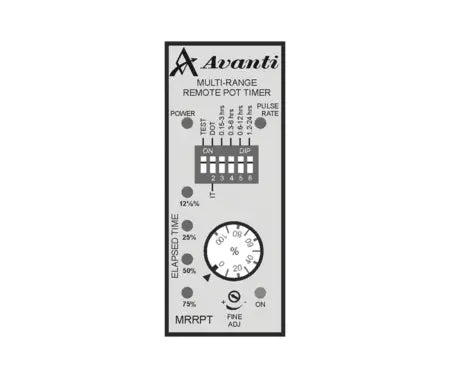

Multi Range Remote Pot Timer

10 MINUTES - 3 HOURS           40 MINUTES - 12 HOURS

20 MINUTES - 6 HOURS              80 MINUTES - 24 HOURS

Multi-Range Timer with “Delay-On” or “Interval” function. For use with or without a remote POT.

Multi-Range Timer with “Delay-On” or “Interval” function. For use with or without a remote POT. Used mainly as an automatic STOP for irrigation pump starters. The remote POT, with pulse timing light and reset button, is fitted to a starter door providing time setting without opening starter. The “interval” timing function is selected for this operation. The unit is fitted with a Power, Pulse timing, Relay On and 4 Elapsed Time percentage lights. A Fine-Time Tuning setting knob is also available based on, the faster or slower the pulse, the shorter or longer the set time becomes. An optional external reset button can be fitted. If pushed, the timer is reset back to the present time.

The timer can also be used together with a “FMA” flush mount assembly. This dispenses with Remote POT, and makes the percentage and flashing lights visible to the user. All settings are therefore done on the timer without any remote required.
