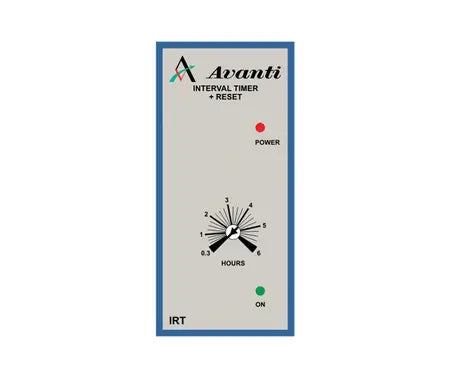

Interval Reset Timer

Interval Reset Timer

MODEL (Pulse Reset)                        A-IRT                                 (Hold Reset)

TIME RANGES

0,3 - 6 SECONDS             3 - 60 SECONDS

0,3 - 6 MINUTES               3 - 60 MINUTES

0,3 - 6 HOURS                  3- 60 HOURS
FUNCTION

Interval Timer with Pulse Rest. A contact closes momentarily between pins 6 + 7 (eg: N/O Button)

Interval Timer with Hold Reset. A contact closes and holds between pins 5 + 7
DESCRIPTION OF OPERATION
Pulse Reset: The relay remains de-energised on power up until a reset occurs. When the pulse contact is closed the relay energises for the set time period then switches OFF irrespective of the length of the pulse. A string of pulses that are shorter than the set time period will reset the timer and the relay will remain energised until the last pulse occurs when the timing cycle will time-out and the relay will de- energise until the next reset pulse occurs. Hold Reset: The relay remains

de-energised on power up until a reset occurs. When the reset contact closes the relay energises. When the reset contact opens the relay de-energises after the pre-set time. The relay stays de-energised until another reset occurs. If the hold contact is closed before the time period has elapsed the time cycle is cancelled and the relay will remain energised.
VOLTAGE  12V 24V AC/AD                          115V, 230V, 400V AC

If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, Please contact us via email - sales@mapleleafelectrical.co.za or Call-064 086 3515

R 914.94 ZAR
R 914.94 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.
