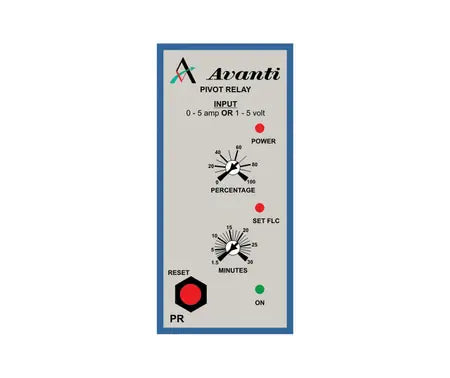

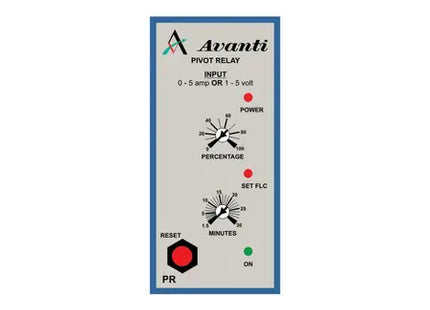

Pivot Relay

Pivot Relay

On application of power the relay energises. If the pivot draws less than the pre-set current setting, the relay will open after the time set on the over-ride timer. On shut-down the unit can be reset with the button provided.

This unit is used to switch off the pump preventing over-watering should
the pivot stand in one position.

The “PR” can operate on a 1-5 Volt or 1-5Amp sensor. The pins 5,6 + 7 are used to select either the voltage or current sensing.
