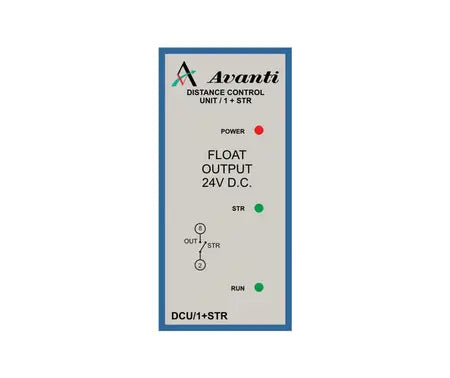

Pump Distance Control Unit

Distance Control Unit

To control water levels in dams and reservoirs over long distances.

Float Switch - 2 Wire control: When the float contact is closed between terminals 5 + 7, the relay is energised - Open to de-energise.

2 Float Switch - 3 Wire control: Stop float - normally closed contact connected to terminals 6 + 7. Start Float - normally opens across terminals 5 + 6. Closing 5 + 6 energises the relay and remains energised until stop float opens contact between 6 + 7.

Voltage on float terminals = 24V DC.

Distance: Up to 4km long using 1.5mm copper wire cable.
