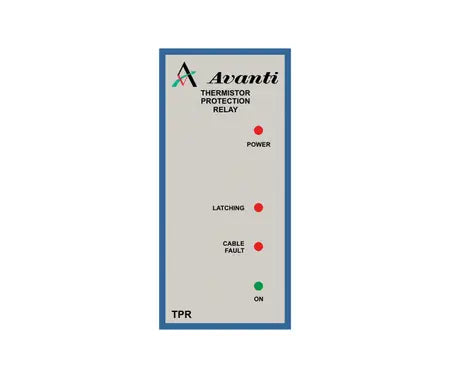

Thermistor Relay

Description

MODEL   A - TPR
PRODUCT

Thermistor Protection Relay

DESCRIPTION OF OPERATION

Interfacing with PTC sensors as per DIN44081 (Thermistors) embedded in the motor windings, the TPR offers excellent motor protection. The LED’s indicate trip conditions for motor overheat, cable fault (short or open circuit) as well as the relays latch condition. Latching is enabled by bridging terminals 8 + 9.

Open circuit voltage <=2,5V. Short circuit current= 1ma (Max). Maximum cold resistance of 1 to 6 sensors connected - 1500Ώ

Triggering threshold 3100Ώ ± 10% Recovery threshold 1650Ώ ± 10%

VOLTAGE

100V, 230V, 400V AC

Read more

Thermistor Relay

Product form

MODEL   A - TPR PRODUCT Thermistor Protection Relay DESCRIPTION OF OPERATION  Interfacing with PTC sensors as per DIN44081 (Thermistors) embedded...

Free pickup in our shop(s)
Split your purchase with interest-free payments from R 151.89/m

Make your first payment today, then monthly over 2–6 months.

R 911.35 Incl. VAT

    We accept

    Visa Mastercard Apple Pay Google Pay Capitec Pay

    • Guaranteed secure & safe checkout.

      <p>Guaranteed <b>secure & safe</b> checkout.</p>
    • If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, Please contact us via email - sales@mapleleafelectrical.co.za or call-064 086 3515

    Description

    MODEL   A - TPR
    PRODUCT

    Thermistor Protection Relay

    DESCRIPTION OF OPERATION

    Interfacing with PTC sensors as per DIN44081 (Thermistors) embedded in the motor windings, the TPR offers excellent motor protection. The LED’s indicate trip conditions for motor overheat, cable fault (short or open circuit) as well as the relays latch condition. Latching is enabled by bridging terminals 8 + 9.

    Open circuit voltage <=2,5V. Short circuit current= 1ma (Max). Maximum cold resistance of 1 to 6 sensors connected - 1500Ώ

    Triggering threshold 3100Ώ ± 10% Recovery threshold 1650Ώ ± 10%

    VOLTAGE

    100V, 230V, 400V AC
