Voltage Window Comparitor 3P
Voltage Window Comparitor 3P
| MODEL | A-VWC / 3 |
| PRODUCT |

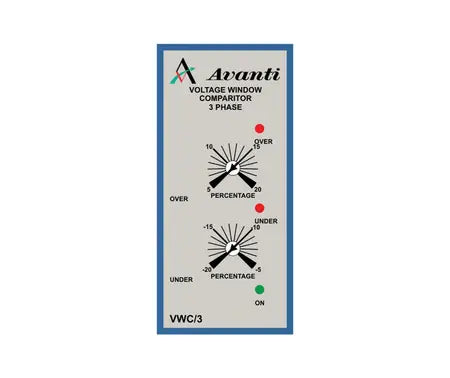

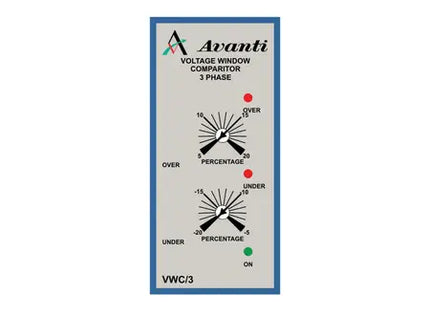

Voltage Window Comparitor “Three Phase”
|
| DESCRIPTION OF OPERATION |
The unit derives its power from the monitored three phase supply. The relay is energised when the voltage is maintained between the over and under voltage set points. If the voltage rises above the over voltage set point, the relay de-energises. LED indication is provided for both conditions. The relay energises when the voltage recovers to within the 2% hysteresis band. A latch facility is between terminal 8 + 9. Latching is disabled for approx. 10 seconds at start-up. Note: For Motor Control this unit is NOT a Phase Failure Relay
|
| VOLTAGE |
230V AC 400V AC |
If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, Please contact us via email - sales@mapleleafelectrical.co.za or Call-064 086 3515
