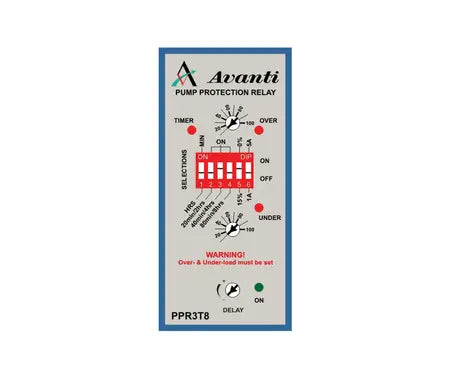

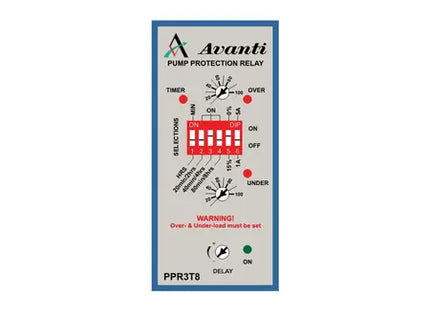

Name: 3Phase Pump Protection Relay
Brand: Maple Leaf Electrical Supplies
SKU: A-PPR-3T8-40
Price: 1766.49 ZAR
Availability: InStock

3Phase Pump Protection Relay

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

3Phase Pump Protection Relay

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

MODEL A-PPR - 3T8 - 40 PRODUCT Pump Protection Relay with phase Failure Protection and Underload Restart Timer Function...

Free pickup in our shop(s)

R 1,766.49 Incl. VAT

Guaranteed secure & safe checkout.

If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, Please contact us via email - sales@mapleleafelectrical.co.za or call-064 086 3515

Top 10 best selling products

You may also like these products. These products are rated as 'top 10 best of the best' by our clients

Shop now

Returns & Delivery

When will my order be delivered?

We ship worldwide. Your order will be packaged really carefully and delivered wherever you want. Delivery takes between 2-4 business days. You will receive an e-mail after ordering with more information about the delivery.

Can I return my product?

Orders can be returned or exchanged within 30 days of receiving the parcel, providing they are in original resalable condition.

What can I do if my item (or part of it) is damaged?

We work hard to deliver your items without damage. Orders can be returned or exchanged within 30 days of receiving the parcel, providing they are in original resalable condition.

MODEL	A-PPR - 3T8 - 40
PRODUCT	Pump Protection Relay with phase Failure Protection and Underload Restart Timer Function - 230V
DESCRIPTION OF OPERATION	The PPR is designed for use on motors which require sensitive overload and underload protection and is particularly suitable for offering good protection on borehole and pump set motors. The PPR offers phase failure protection which is voltage or current dependent. On power up all 3 phases must be present and connected in the following manner. L1 is used for the PPR ON/ OFF control energising the unit on terminal 2. L2 connects to terminal 8. L3 connects to terminal 10. On single phase units, terminal 10 is connected to Neutral. During running the phase failure protection is dependent on the current transformer and if the PPR is set correctly, it will respond extremely fast. Both overload and underload have Set/Trip point LEDs with a common adjustable 0-10 second trip delay timer. There is fixed start-up delay of 5 seconds. A 50/5 CT, with a option of 3 connections (turns through CT), and 1 & 5 amp DIP switch selection provides various settings for motors 0.37kW to 7.5kW. For larger motors any size ring CT with a 5 amp secondary can b be used. The PPR is fitted with a underload re-start timer controlled by 4 DIP switches offering 6 time settings from 20 minutes to 8 hours (for borehole recovery). If the installation is fitted with a discharge valve and ammeter, the over and under setting combinations are numerous with loads very easy to simulate.
VOLTAGE	400V AC

MODEL	A-PPR - 3T8 - 40
PRODUCT	Pump Protection Relay with phase Failure Protection and Underload Restart Timer Function - 230V
DESCRIPTION OF OPERATION	The PPR is designed for use on motors which require sensitive overload and underload protection and is particularly suitable for offering good protection on borehole and pump set motors. The PPR offers phase failure protection which is voltage or current dependent. On power up all 3 phases must be present and connected in the following manner. L1 is used for the PPR ON/ OFF control energising the unit on terminal 2. L2 connects to terminal 8. L3 connects to terminal 10. On single phase units, terminal 10 is connected to Neutral. During running the phase failure protection is dependent on the current transformer and if the PPR is set correctly, it will respond extremely fast. Both overload and underload have Set/Trip point LEDs with a common adjustable 0-10 second trip delay timer. There is fixed start-up delay of 5 seconds. A 50/5 CT, with a option of 3 connections (turns through CT), and 1 & 5 amp DIP switch selection provides various settings for motors 0.37kW to 7.5kW. For larger motors any size ring CT with a 5 amp secondary can b be used. The PPR is fitted with a underload re-start timer controlled by 4 DIP switches offering 6 time settings from 20 minutes to 8 hours (for borehole recovery). If the installation is fitted with a discharge valve and ammeter, the over and under setting combinations are numerous with loads very easy to simulate.
VOLTAGE	400V AC
