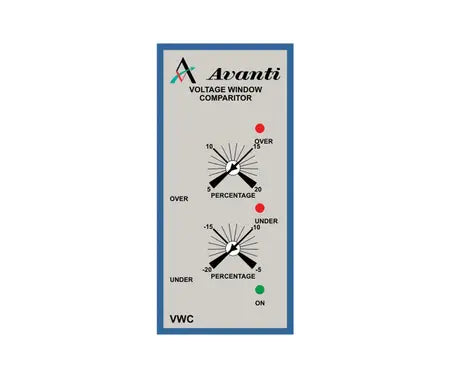

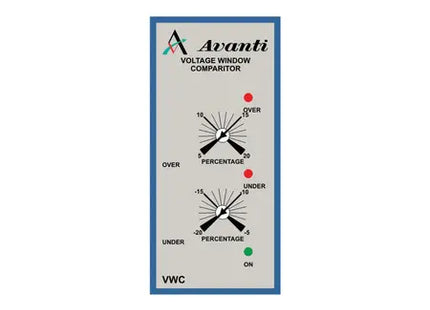

1PHASE Voltage Window Comparitor
1PHASE Voltage Window Comparitor
| MODEL | A-VWC |
| PRODUCT |
Voltage Window Comparitor “Single Phase”
|
| DESCRIPTION OF OPERATION |
The “VWC” monitors its own supply and responds to both over and under voltage. The relay is energised when the voltage remains between the over and under voltage pre- set thresholds. If the voltage rises above the over voltage set point or falls below the under set point the relay de- energises. LED indication is provided for both conditions. The relay energises when the voltage recovers to within the 2% hysteresis band. A latch facility is between terminals 8 + 9. Latching is disabled for approx. 10 seconds at start-up. |
| VOLTAGE |
12V, 24V AC 110V, 230V, 400V AC |
