Name: 3 Level Liquid Level Relay
Brand: Maple Leaf Electrical Supplies
SKU: A-LLC3-M
Price: 1101.52 ZAR
Availability: InStock

3 Level Liquid Level Relay

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

3 Level Liquid Level Relay

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

MODEL A - LLC3 PRODUCT 3 Level liquid Level Control “Filling & Emptying” with duty cycling DIP Switch Selectable DESCRIPTION...

Free pickup in our shop(s)

R 1,101.52 Incl. VAT

Guaranteed secure & safe checkout.

If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, Please contact us via email - sales@mapleleafelectrical.co.za or call-064 086 3515

Top 10 best selling products

You may also like these products. These products are rated as 'top 10 best of the best' by our clients

Shop now

Returns & Delivery

When will my order be delivered?

We ship worldwide. Your order will be packaged really carefully and delivered wherever you want. Delivery takes between 2-4 business days. You will receive an e-mail after ordering with more information about the delivery.

Can I return my product?

Orders can be returned or exchanged within 30 days of receiving the parcel, providing they are in original resalable condition.

What can I do if my item (or part of it) is damaged?

We work hard to deliver your items without damage. Orders can be returned or exchanged within 30 days of receiving the parcel, providing they are in original resalable condition.

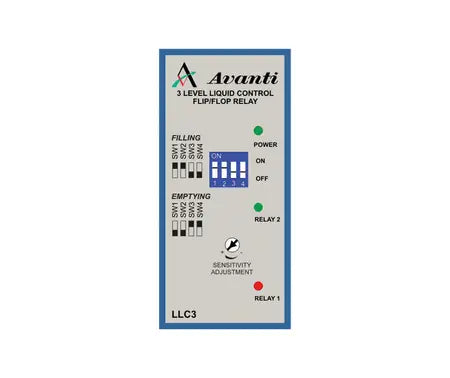

MODEL	A - LLC3
PRODUCT	3 Level liquid Level Control “Filling & Emptying” with duty cycling DIP Switch Selectable
DESCRIPTION OF OPERATION	Used for control of water levels in tanks and sumps over short distances. The LLC3 controls 2 pump relays operated at different levels for “Duty” and “Standby” operation. The unit automatically alternates the pump relays between duty and standby using a built-in flip- flop action. There are 4 DIP switches available to select emptying or filling Filling: Sw 1 + 2 - ON (up position); Sw 3 + 4 - OFF (down position) Emptying: Sw 1 + 2 - OFF(down position); Sw 3 + 4 - ON (up position) Avanti AEL probes: connected to the terminals: 5 - “High;” 6 - “Middle;” 7 - “Low;” 8 - “Common” Filling: If the level is below probe 7 - “Low” both relays will energise and when the level reaches probe 5 - “High” both relays will de-energise. When the level drops below probe 6 - “Middle” relay 1 will energise and de-energise when the level reaches probe 5 - “High.” The next on cycle with probe 6 - “Middle” out of the water, relay 2 will energise (alternating). If the level continues to fall and goes below the probe 7 - “Low,” both pumps will energise and only de-energise when probe 5 - “High” is reached (all probes in the water). Emptying: When a rising level reaches probe 6 - “Middle,” relay 2 energises and de-energises when probe 7 - “Low” is reached. On the next rising level to probe 6 - “Middle” - relay 1 will energise (alternating). If the level continues to rise and probe 5 - “High” is reached, both relays will be energised (Duty & Standby) and when the level reaches probe 7 - “Low” both relays will de-energise.
VOLTAGE	230V, 400V AC

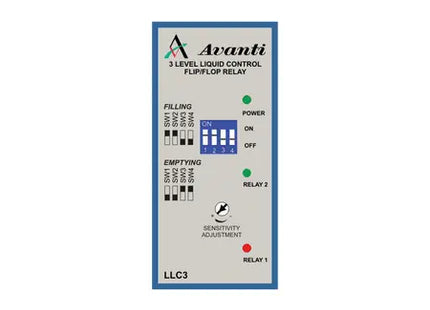

MODEL	A - LLC3
PRODUCT	3 Level liquid Level Control “Filling & Emptying” with duty cycling DIP Switch Selectable
DESCRIPTION OF OPERATION	Used for control of water levels in tanks and sumps over short distances. The LLC3 controls 2 pump relays operated at different levels for “Duty” and “Standby” operation. The unit automatically alternates the pump relays between duty and standby using a built-in flip- flop action. There are 4 DIP switches available to select emptying or filling Filling: Sw 1 + 2 - ON (up position); Sw 3 + 4 - OFF (down position) Emptying: Sw 1 + 2 - OFF(down position); Sw 3 + 4 - ON (up position) Avanti AEL probes: connected to the terminals: 5 - “High;” 6 - “Middle;” 7 - “Low;” 8 - “Common” Filling: If the level is below probe 7 - “Low” both relays will energise and when the level reaches probe 5 - “High” both relays will de-energise. When the level drops below probe 6 - “Middle” relay 1 will energise and de-energise when the level reaches probe 5 - “High.” The next on cycle with probe 6 - “Middle” out of the water, relay 2 will energise (alternating). If the level continues to fall and goes below the probe 7 - “Low,” both pumps will energise and only de-energise when probe 5 - “High” is reached (all probes in the water). Emptying: When a rising level reaches probe 6 - “Middle,” relay 2 energises and de-energises when probe 7 - “Low” is reached. On the next rising level to probe 6 - “Middle” - relay 1 will energise (alternating). If the level continues to rise and probe 5 - “High” is reached, both relays will be energised (Duty & Standby) and when the level reaches probe 7 - “Low” both relays will de-energise.
VOLTAGE	230V, 400V AC
