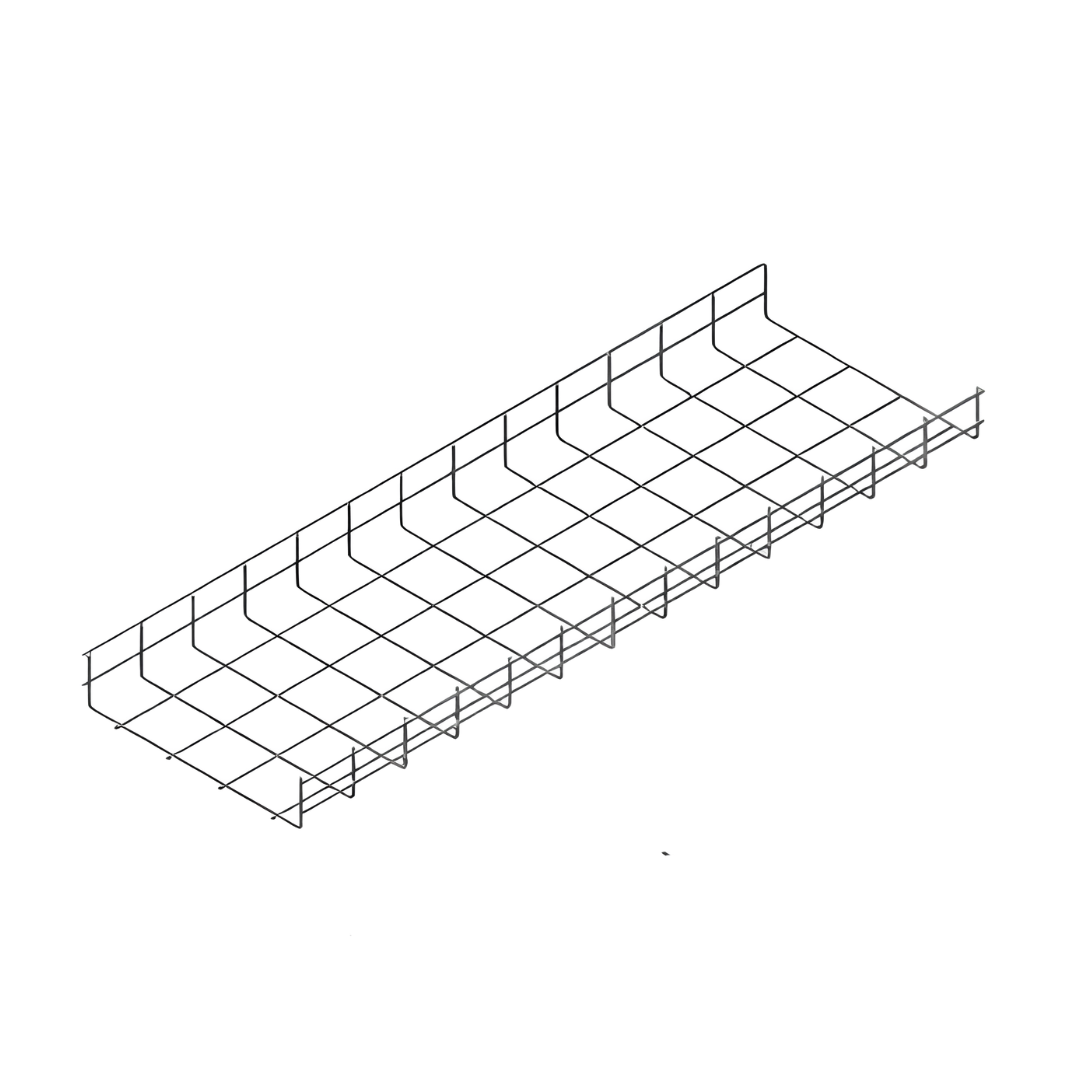

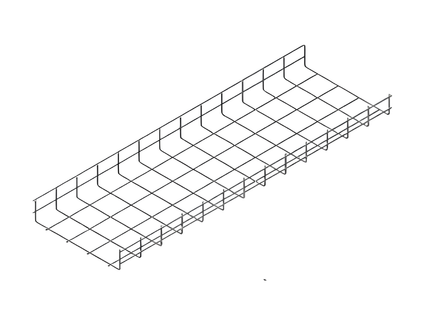

Medium Duty Wire Mesh Cable Trays (WMM Series) are open-weave galvanised
steel cable management trays designed for the flexible, ventilated routing
of electrical cables, data cables and instrumentation cables in commercial,
industrial and infrastructure installations across South Africa.
Unlike solid or slotted steel cable trays, wire mesh cable trays offer
a unique combination of maximum ventilation, lightweight construction
and exceptional flexibility — allowing cables to enter and exit the
tray at any point along its length without cutting or drilling, making
them particularly popular for data centres, office buildings, retail
fit-outs and commercial installations where cable routing changes
frequently.
Supplied in standard 3 metre lengths with a 50 x 50mm wire mesh pitch
and 50mm side height, the WMM series is available in 8 widths from
50mm up to 600mm to suit any cable volume or installation requirement.
Wire Mesh Tray vs Solid Cable Tray — Which Do You Need?
• Wire Mesh Tray — Open weave design. Maximum ventilation.
Lightweight and flexible. Cables enter/exit anywhere.
Best for data cables, commercial offices and frequent
cable changes. Easier to install.
• Solid Slotted Tray — Solid or slotted bottom. Better for
heavier power cables requiring full structural support
along their entire length. Better for industrial use.
Ideal for use in:
• Data centres and server rooms
• Commercial office buildings and retail fit-outs
• Shopping centres and hospitality installations
• Residential estate and apartment block data/electrical runs
• Above-ceiling data and communication cable routing
• Any installation requiring flexible, accessible cable management
Available in 8 sizes (WMM Series):
• WMM50S — 50mm wide x 50mm deep x 3m
• WMM100S — 100mm wide x 50mm deep x 3m
• WMM150S — 150mm wide x 50mm deep x 3m
• WMM200S — 200mm wide x 50mm deep x 3m
• WMM300S — 300mm wide x 50mm deep x 3m
• WMM400S — 400mm wide x 50mm deep x 3m
• WMM500S — 500mm wide x 50mm deep x 3m
• WMM600S — 600mm wide x 50mm deep x 3m
Wire mesh pitch: 50 x 50mm
Priced per 3m length. Contact us for bulk and contractor pricing.
Also available in our Cable Management range:
→ Light Duty Cable Trays — 50mm to 304mm wide, 12mm deep
→ Medium Duty Cable Trays — 76mm to 609mm wide, 38mm deep
→ Heavy Duty Cable Trays — 76mm to 609mm wide, 76mm deep
→ Medium Duty Cable Ladder — 100mm to 500mm wide, 55mm deep
→ Heavy Duty Cable Ladder — 100mm to 500mm wide, 76mm deep
Order online with fast nationwide delivery across South Africa.
Contact us for contractor and bulk pricing —
sales@mapleleafelectrical.co.za or 064 086 3515.
| STOCK CODE |
WIDTH (mm) |
HEIGHT (mm) |
| WMM50S |
50 |
50 |
| WMM100S |
100 |
50 |
| WMM150S |
150 |
50 |
| WMM200S |
200 |
50 |
| WMM300S |
300 |
50 |
| WMM400S |
400 |
50 |
| WMM500S |
500 |
50 |
| WMM600S |
600 |
50 |
WIRE MESH TRAYS WITH A PITCH OF 50 X 50MM
