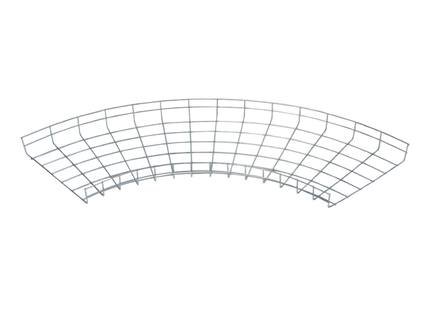

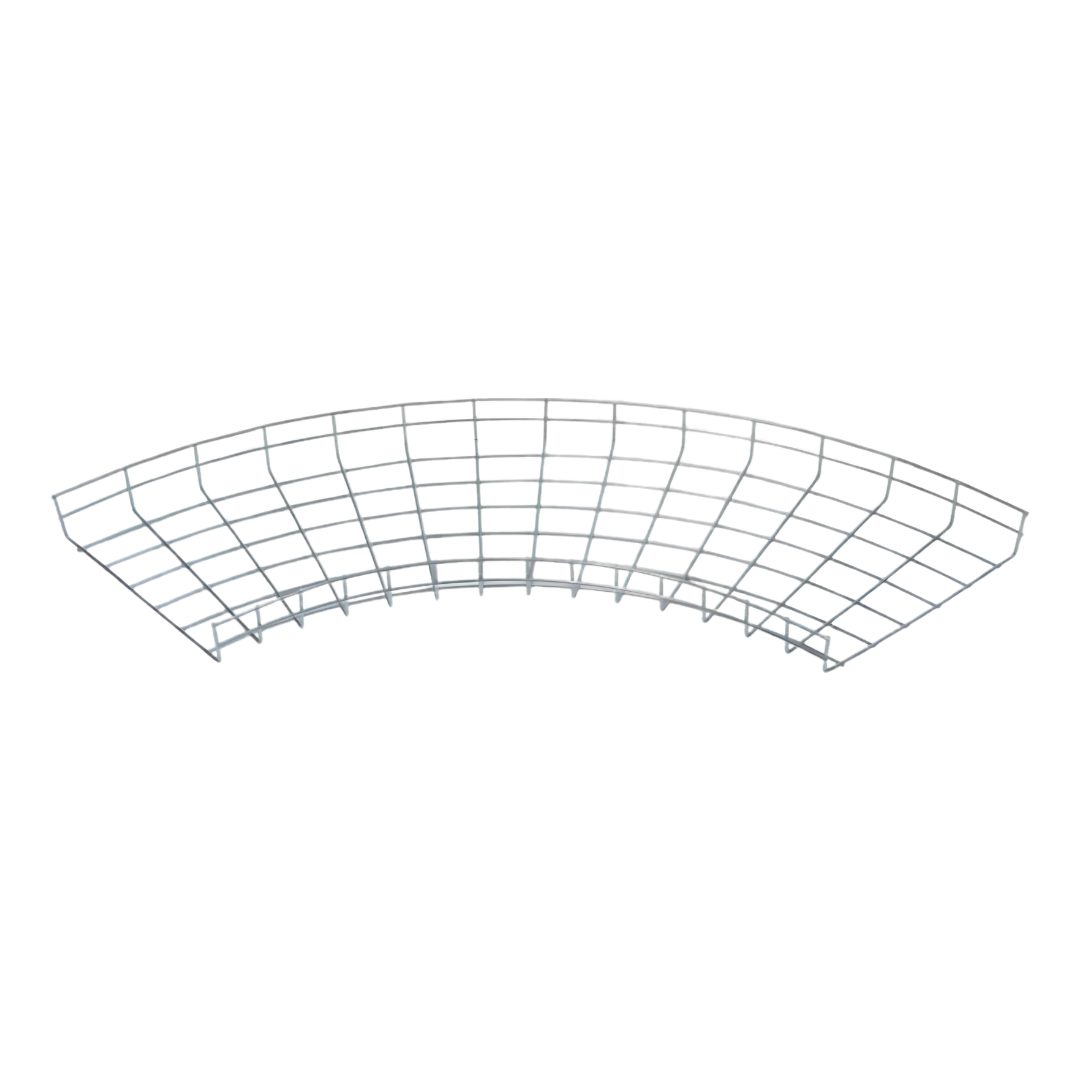

Medium Duty Wire Mesh Horizontal Bends (WMM Series) are 90° corner
accessories designed for use with the WMM Series medium duty wire
mesh cable tray system — allowing cable tray runs to change direction
horizontally at 90° without cutting, bending or modifying straight
tray lengths.
An essential accessory for any wire mesh cable tray installation
where cable runs need to navigate corners and obstacles, the
horizontal bend maintains the open-weave wire mesh construction
throughout the corner — preserving the ventilation, cable
accessibility and flexible routing benefits of the WMM system
at every direction change.
Manufactured to match the WMM Series straight tray dimensions
exactly — 50mm tray height with a 50x50mm wire mesh pitch —
available in 8 widths from 50mm up to 600mm to suit any
installation requirement.
Typical Applications:
• Data centre and server room cable tray corners
• Commercial office above-ceiling cable management
• Retail and hospitality cable tray installations
• Any installation where cable tray runs change direction
horizontally at 90°
Compatible With:
• Medium Duty Wire Mesh Cable Tray (WMM Series) — straight lengths
• Medium Duty Wire Mesh 4-Way Cross Pieces (WMM Series)
Available in 8 sizes:
• WMM50H — 50mm wide x 50mm deep
• WMM100H — 100mm wide x 50mm deep
• WMM150H — 150mm wide x 50mm deep
• WMM200H — 200mm wide x 50mm deep
• WMM300H — 300mm wide x 50mm deep
• WMM400H — 400mm wide x 50mm deep
• WMM500H — 500mm wide x 50mm deep
• WMM600H — 600mm wide x 50mm deep
Priced per piece. Contact us for bulk and contractor pricing.
Also available in our Wire Mesh Cable Tray range:
→ Medium Duty Wire Mesh Cable Tray — straight lengths, 50mm–600mm
→ Medium Duty Wire Mesh 4-Way Cross Piece — junction pieces, 50mm–600mm
→ Heavy Duty Wire Mesh Horizontal Bend — 90° corners, 100mm–1000mm, 75mm deep
→ Heavy Duty Wire Mesh Cable Tray — straight lengths, 100mm–1000mm
Order online with fast nationwide delivery across South Africa.
Contact us for contractor and bulk pricing —
sales@mapleleafelectrical.co.za or 064 086 3515.
| STOCK CODE |
WIDTH (mm) |
HEIGHT (mm) |
| WMM50H |
50 |
50 |
| WMM100H |
100 |
50 |
| WMM150H |
150 |
50 |
| WMM200H |
200 |
50 |
| WMM300H |
300 |
50 |
| WMM400H |
400 |
50 |
| WMM500H |
500 |
50 |
| WMM600H |
600 |
50 |
