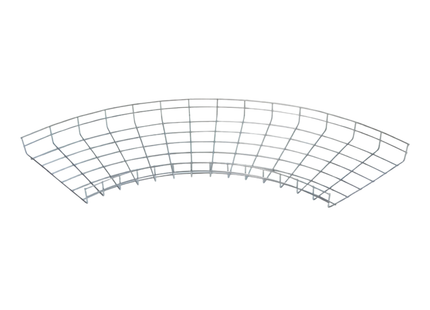

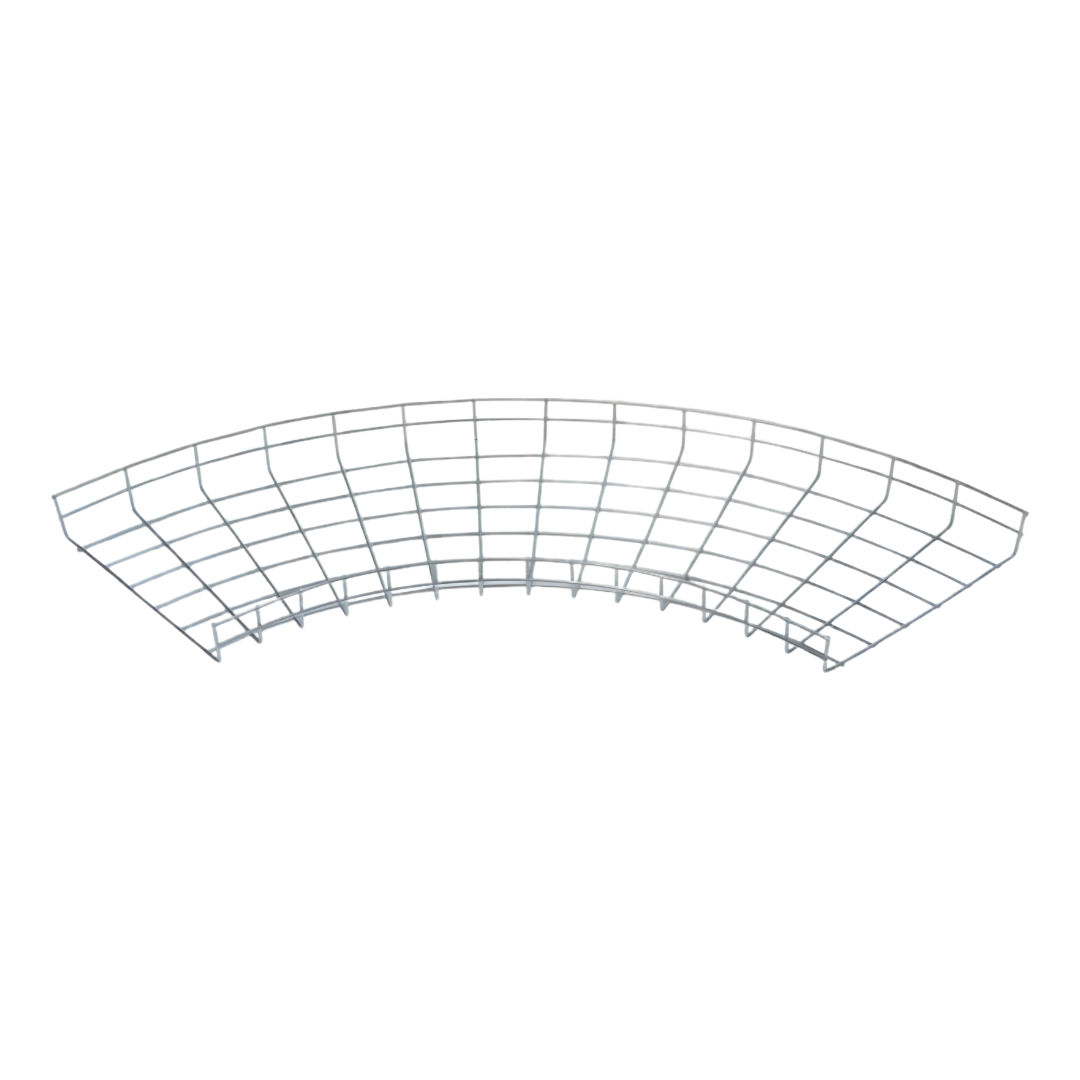

Heavy Duty Wire Mesh Horizontal Bends (WMHD Series) are heavy-gauge
galvanised steel 90° corner accessories designed for use with the
WMHD Series heavy duty wire mesh cable tray system — allowing cable
tray runs to change direction horizontally at 90° in industrial,
mining and heavy commercial electrical installations across South
Africa.
Built to match the full structural strength of the heavy duty wire
mesh tray range, these horizontal bends maintain the open-weave
wire mesh construction throughout every corner — preserving the
maximum ventilation, cable accessibility and flexible routing
benefits of the WMHD system at every direction change, even in
the most demanding environments.
Manufactured to match the WMHD Series straight tray dimensions
exactly — 75mm tray height with a 50x50mm wire mesh pitch —
available in 9 widths from 100mm up to 1000mm to suit any
installation requirement.
Typical Applications:
• Mining and minerals processing plant cable tray corners
• Industrial factory and manufacturing plant installations
• Petrochemical and oil & gas cable tray direction changes
• Power station and substation cable management systems
• Data centre high-density cable tray installations
• Any heavy industrial installation where cable runs change
direction horizontally at 90°
Compatible With:
• Heavy Duty Wire Mesh Cable Tray (WMHD Series) — straight lengths
• Heavy Duty Wire Mesh 4-Way Cross Pieces (WMHD Series)
Available in 9 sizes:
• WMHD100H — 100mm wide x 75mm deep
• WMHD150H — 150mm wide x 75mm deep
• WMHD200H — 200mm wide x 75mm deep
• WMHD300H — 300mm wide x 75mm deep
• WMHD400H — 400mm wide x 75mm deep
• WMHD500H — 500mm wide x 75mm deep
• WMHD600H — 600mm wide x 75mm deep
• WMHD800H — 800mm wide x 75mm deep
• WMHD1000H — 1000mm wide x 75mm deep
Priced per piece. Contact us for bulk and contractor pricing.
Also available in our Wire Mesh Cable Tray range:
→ Heavy Duty Wire Mesh Cable Tray — straight lengths, 100mm–1000mm
→ Heavy Duty Wire Mesh 4-Way Cross Piece — junction pieces, 100mm–1000mm
→ Medium Duty Wire Mesh Horizontal Bend — 90° corners, 50mm–600mm, 50mm deep
→ Medium Duty Wire Mesh Cable Tray — straight lengths, 50mm–600mm
Order online with fast nationwide delivery across South Africa.
Contact us for contractor and bulk pricing —
sales@mapleleafelectrical.co.za or 064 086 3515.
| STOCK CODE |
WIDTH (mm) |
HEIGHT (mm) |
| WMHD100H |
100 |
75 |
| WMHD150H |
150 |
75 |
| WMHD200H |
200 |
75 |
| WMHD300H |
300 |
75 |
| WMHD400H |
400 |
75 |
| WMHD500H |
500 |
75 |
| WMHD600H |
600 |
75 |
| WMHD800H |
800 |
75 |
| WMHD1000H |
1000 |
75 |
