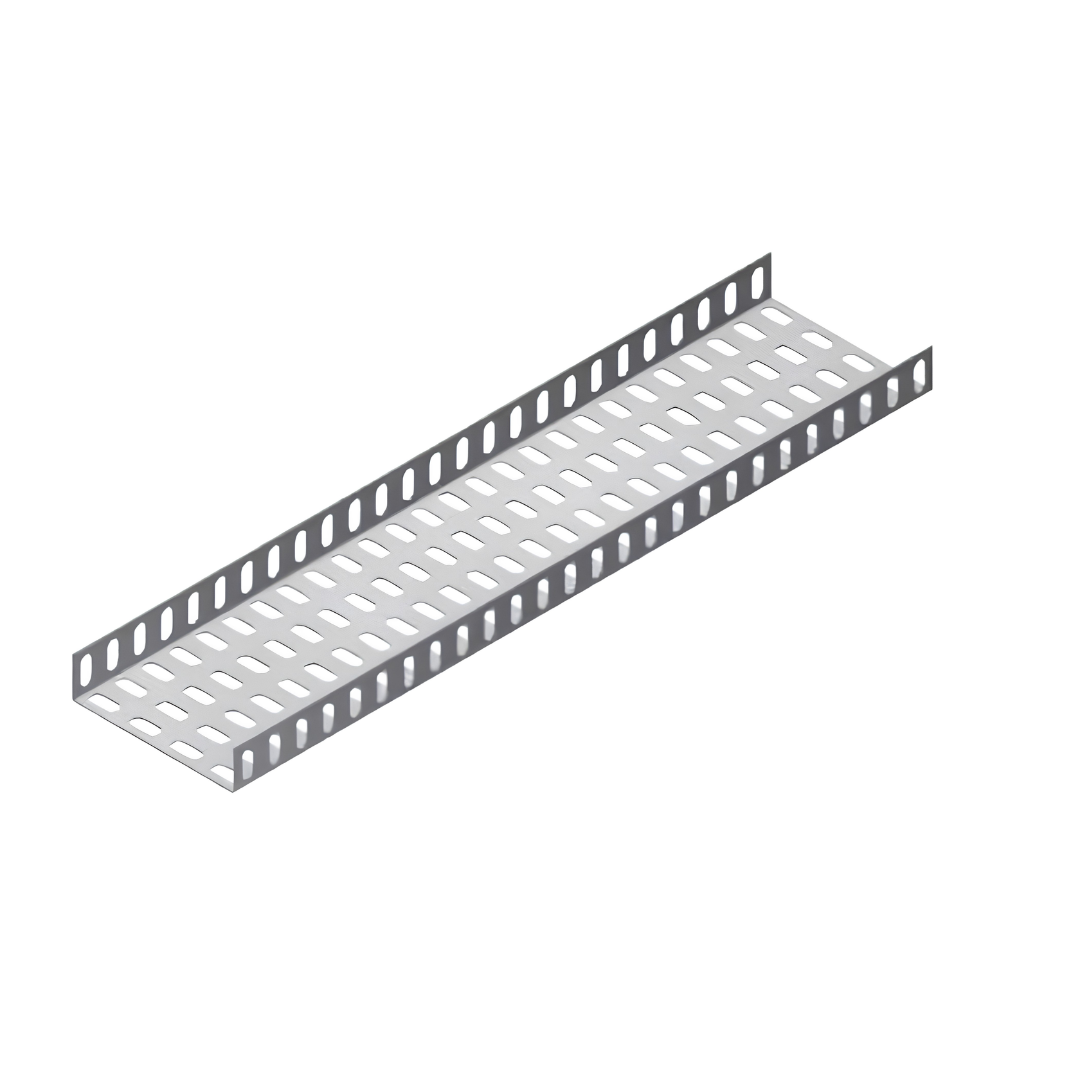

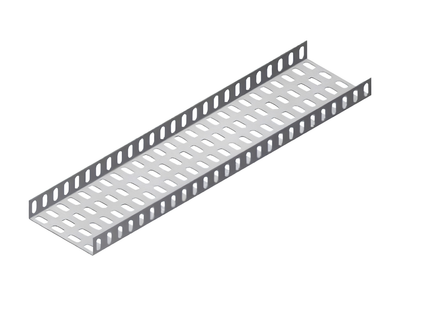

Medium Duty Cable Trays (MDCT Series) are heavy-gauge slotted steel
cable management trays designed for applications requiring greater
load-bearing capacity and wider cable bundles than light duty trays
can accommodate.
Supplied in standard 3 metre lengths, these trays are available in 7
widths from 76mm up to 609mm, with a 38mm tray depth and slot size of
25 x 11mm — significantly deeper and stronger than the light duty range,
making them suitable for industrial, commercial and heavy infrastructure
electrical installations across South Africa.
Trays are joined by overlapping ends and secured with gutter nuts and
bolts for a continuous, secure cable management run.
When to choose Medium Duty over Light Duty:
- Heavier cable bundles and higher cable fill requirements
- Industrial environments with vibration or mechanical stress
- Wider cable runs requiring 228mm to 609mm tray widths
- Installations requiring greater structural rigidity
- Any application where cables need deeper containment (38mm vs 12mm)
Ideal for use in:
- Industrial factories, warehouses and manufacturing plants
- Mining and heavy industry cable installations
- Data centres and large commercial buildings
- Infrastructure projects and substations
- Above-ceiling and underfloor heavy cable routing
- Any installation requiring robust, wide-span cable management
Available in 7 sizes (MDCT76S to MDCT609S):
- MDCT76S — 76mm wide x 38mm deep x 3m
- MDCT114S — 114mm wide x 38mm deep x 3m
- MDCT152S — 152mm wide x 38mm deep x 3m
- MDCT228S — 228mm wide x 38mm deep x 3m
- MDCT304S — 304mm wide x 38mm deep x 3m
- MDCT457S — 457mm wide x 38mm deep x 3m
- MDCT609S — 609mm wide x 38mm deep x 3m
Slot size: 25 x 11mm
Joining method: Overlapping ends, fixed with gutter nuts and bolts
Priced per 3m length. Contact us for bulk and contractor pricing.
Also available: Light Duty Cable Trays (50mm–304mm, 12mm deep)
for lighter cable management applications.
Order online with fast nationwide delivery across South Africa —
sales@mapleleafelectrical.co.za or 064 086 3515.
Medium Duty Cable Trays - Standard Length 3m
| STOCK CODE |
WIDTH (mm) |
HEIGHT (mm) |
| MDCT76S |
76 |
38 |
| MDCT114S |
114 |
38 |
| MDCT152S |
152 |
38 |
| MDCT228S |
228 |
28 |
|
MDCT304S |
304 |
38 |
|
MDCT457S |
457 |
38 |
|
MDCT609S |
609 |
38 |
SLOT SIZE: 25 x 11mm
NOTE: Tray sliced by overlapping ends, fixed with gutter nuts and bolts
