DIN RAIL ISOLATOR (SWITCH DISCONNECTORS)
1, 2, 3 & 4 POLE
Isolators
-
Din Rail Mount 3 Pole Isolators IP20 - AC
Din rail mount 3 pole isolators IP20 - AC • Rated operating voltage: 690V • Rated impulse voltage: 8kV STOCK CODE CURRENT RATING ODA16-3 16A ODA20-3 20A ODA25-3 25A ODA32-3 32A ODA40-3 40A ODA63-3 63A
R 219.57 - R 431.20
-

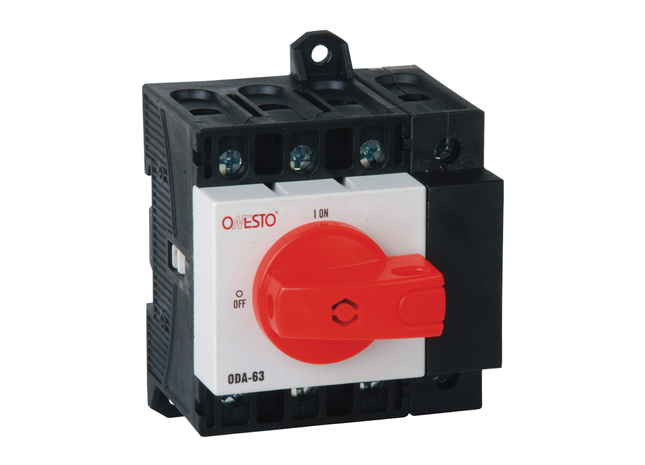

Din Rail Mount 4 Pole Isolator IP20 - AC
Din rail mount 4 pole isolator IP20 - AC • Rated operating voltage: 690V • Rated impulse voltage: 8kV STOCK CODE CURRENT RATING ODA16-4 16A ODA20-4 20A ODA25-4 25A ODA32-4 32A ODA40-4 40A ODA63-4 63A
R 260.31 - R 547.78
-
Mini IP66 Surface Mount Lockable Isolator
Mini IP66 Surface Mount Lockable Isolator 20A 2 Pole - MHSP3-20-2 20A 3 Pole - MHSP3-20-3 35A 2 Pole - MHSP3-35-2 35A 3 Pole - MHSP3-35-3
R 358.80 - R 415.61
-

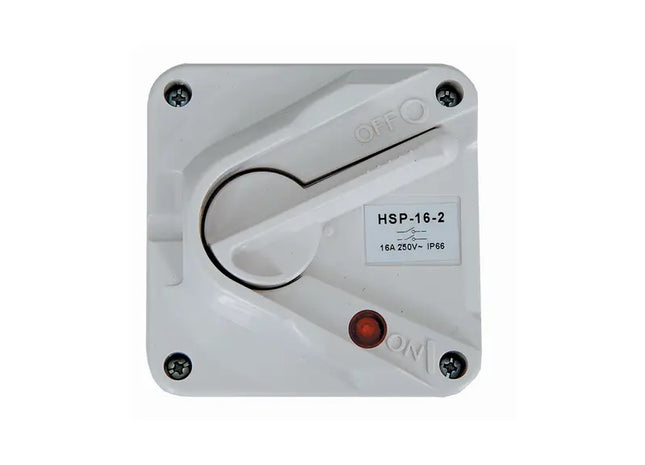

IP66 2 Pole Surface Mounting Lockable Isolator
SS Series IP66 2 Pole Surface Mounting Lockable Isolator 16A 2 Pole + Indicator - HSP3-16-2 20A 2 Pole - HSP3-20-2 35A 2 Pole - HSP3-35-2 63A 2 Pole - HSP3-63-2
R 173.42 - R 243.69
-
IP66 3 Pole Surface Mounting Lockable Isolator
SS Series IP66 3 Pole Surface Mounting Lockable Isolator 20A 3 Pole - HSP3-20-3 35A 3 Pole - HSP3-35-3 63A 3 Pole - HSP3-63-3
R 233.22 - R 273.59
-

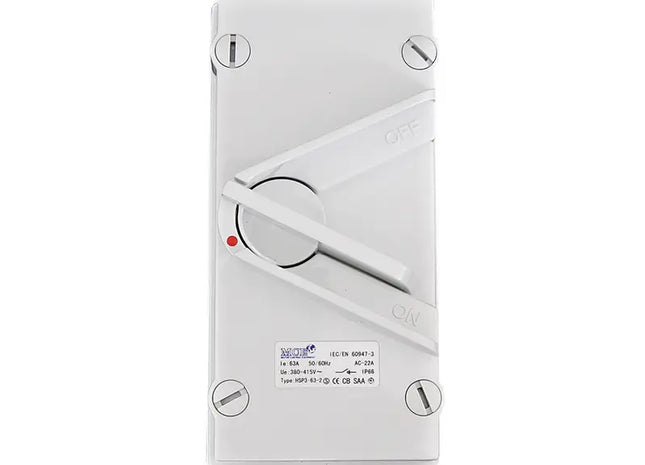

IP66 4 Pole Surface Mounting Lockable Isolator
SS Series IP66 4 Pole Surface Mounting Lockable Isolator 20A 4 Pole - HSP3-20-4 35A 4 Pole - HSP3-35-4 63A 4 Pole - HSP3-63-4
R 264.62 - R 304.98
-

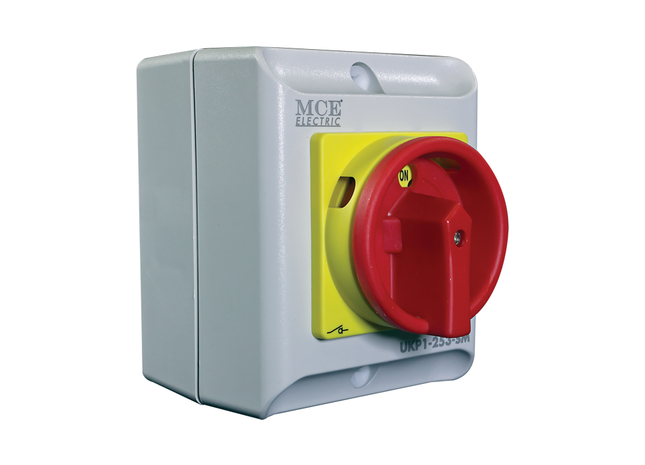

2 Pole Lockable IP65 Surface Mount Isolator
2 Pole Lockable Isolator Surface Mounted In Enclosure (IP65) STOCK CODE CURRENT RATING POLE kW RATING UKP0-162-SM 16A 2 Pole 5,5kW UKP0-202-SM 20A 2 Pole 7,5kW UKP1-252-SM 25A 2 Pole 11kW UKP1-322-SM 32A 2 Pole 15kW UKP3-402-SM 40A 2 Pole 18kW UKP5-632-SM 63A 2 Pole 30kW
R 208.10 - R 608.76
-
3 Pole Lockable IP65 Surface Mount Isolator
3 Pole Lockable Isolator Surface Mounted In Enclosure (IP65) STOCK CODE CURRENT RATING POLES kW RATING UKP0-163-SM 16A 3 Pole 5,5kW UKP0-203-SM 20A 3 Pole 7,5kW UKP1-253-SM 25A 3 Pole 11kW UKP1-323-SM 32A 3 Pole 15kW UKP3-403-SM 40A 3 Pole 18kW UKP5-633-SM 63A 3 Pole 30kW UKP5-803-SM 80A 3 Pole 37kW UKP5-103-SM 100A 3 Pole 45kW
R 242.79 - R 1,217.53
-

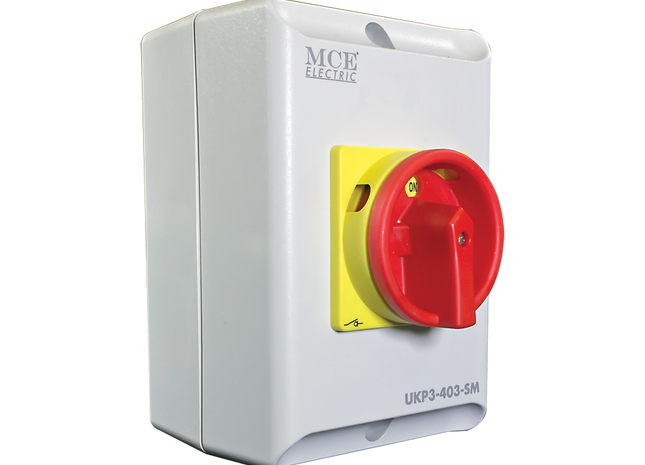

4 Pole Lockable IP65 Surface Mount Isolator
4 Pole Lockable Isolator Surface Mounted In Enclosure (IP65) STOCK CODE CURRENT RATING POLE kW RATING UKP0-164-SM 16A 4 Pole 5,5kW UKP0-204-SM 20A 4 Pole 7,5kW UKP1-254-SM 25A 4 Pole 11kW UKP1-324-SM 32A 4 Pole 15kW UKP3-404-SM 40A 4 Pole 18kW UKP5-634-SM 63A 4 Pole 30kW UKP5-804-SM 80A 4 Pole 37kW UKP5-104-SM 100A 4 Pole 45kW
R 276.28 - R 1,383.77
-

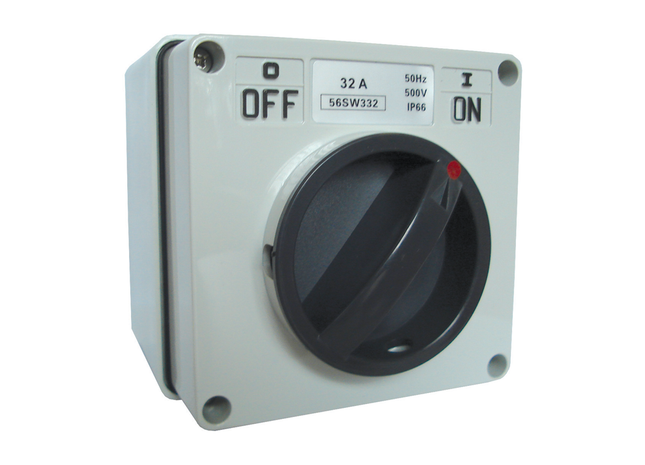

IP66 Lockable Surface Mount Isolator In Enclosure
3 Pole IP66 Lockable Surface Mount Isolator In Enclosure STOCK CODE CURRENT RATING kW RATING 56SW316 16A 5.5kW 56SW332 32A 15kW 56SW363 63A 30kW
R 367.17 - R 504.71
-

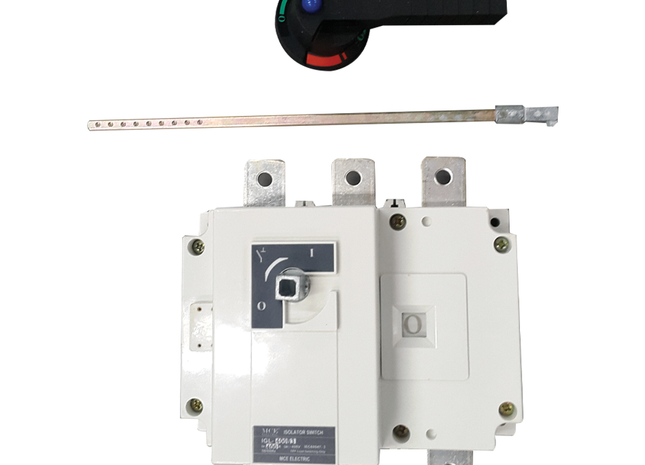

3P Load Break Isolators Complete With Interlocked Handle
• 415VAC• Bolt on Base mounting• Complete with shaft and padlock-able handle STOCK CODE CURRENT RATING IGL-125/3 125A IGL-160/3 160A IGL-200/3 200A IGL-250/3 250A IGL-300/3 300A IGL-400/3 400A IGL-500/3 500A IGL-630/3 630A IGL-800/3 800A IGL-1000/3 1000A IGL-1250/3 1250A IGL-1600/3 1600A IGL-2500/3 2500A IGL-3150/3 3150A
R 1,005.84 - R 43,383.70
-

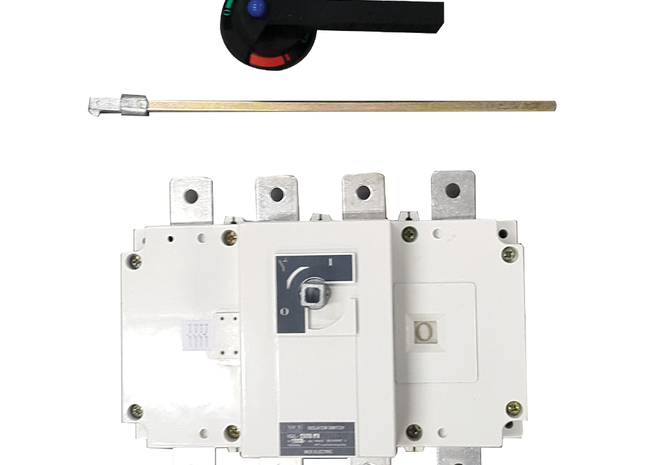

4P Load Break Isolators Complete With Interlocked Handle
• 415VAC• Bolt on Base mounting• Complete with shaft and padlock-able handle STOCK CODE CURRENT RATING IGL-125/4 125A IGL-160/4 160A IGL-200/4 200A IGL-250/4 250A IGL-300/4 300A IGL-400/4 400A IGL-500/4 500A IGL-630/4 630A IGL-800/4 800A IGL-1000/4 1000A IGL-1250/4 1250A IGL-1600/4 1600A IGL-2500/4 2500A IGL-3150/4 3150A
R 1,123.04 - R 60,146.84
-
3P Load Break Isolator Enclosed
• From 125A - 630A• Enclosed in mild steel, UV Resistant, Powder coated enclosure STOCK CODE CURRENT RATING DIMENSION IGL-125/3-SM 125A 3P 400 x 300 x 200 IGL-160/3-SM 160A 3P 400 x 300 x 200 IGL-200/3-SM 200A 3P 500 x 400 x 250 IGL-250/3-SM 250A 3P 500 x 400 x 250 IGL-300/3-SM 300A 3P 800 x 600 x 250 IGL-400/3-SM 400A 4P 800 x 600 x 250 IGL-500/3-SM 500A 3P 800 x 600 x 250 IGL-630/3-SM 630A 3P 800 x 600 x 250
R 2,824.95 - R 8,247.62
-

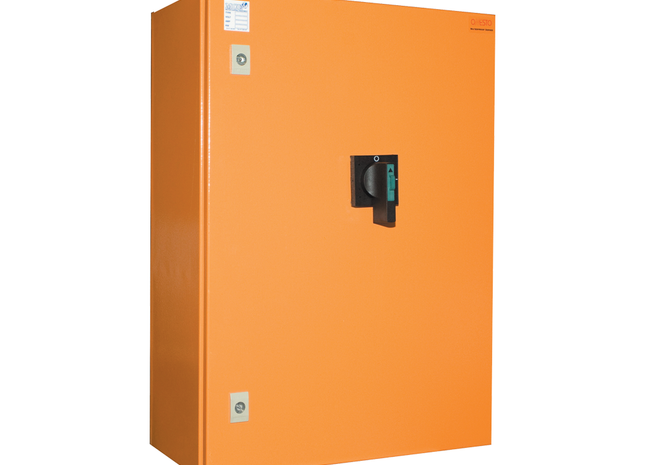

4-Pole Enclosed Load Break Isolator | 125A–630A | UV-Resistant Mild Steel Enclosure
The 4-Pole Enclosed Load Break Isolator is a heavy-duty manual isolation solution for industrial, commercial and utility electrical installations across South Africa, supplied complete with a UV-resistant, powder-coated mild steel enclosure for outdoor and harsh-environment use. Designed for safe manual disconnection of three-phase and neutral circuits, these enclosed isolators are ideal for main isolators on distribution boards, generator changeover applications, solar PV systems, pump stations, agricultural installations and any application requiring a weatherproof and lockable isolation point. Available in 8 current ratings from 125A up to 630A, with enclosure dimensions scaling from 400 x 300 x 200mm up to 800 x 600 x 250mm. Key Features:- 4-Pole (4P) configuration — 3 phase + neutral- Current ratings: 125A, 160A, 200A, 250A, 300A, 400A, 500A, 630A- Enclosed in mild steel — UV resistant and powder coated- Suitable for outdoor and industrial environments- Lockable for safety and LOTO (Lockout/Tagout) compliance- Robust construction for long-term reliability Typical Applications:- Main isolators for industrial DB boards and switchgear panels- Solar PV and hybrid inverter system isolation- Generator and mains changeover isolation points- Pump stations and borehole pump installations- Agricultural and mining electrical installations- Any application requiring an outdoor-rated manual isolator Stock codes IGL-124/4-SM through to IGL-630/4-SM. Order online with fast nationwide delivery across South Africa. Contact us for contractor pricing on bulk orders — sales@mapleleafelectrical.co.za or 064 086 3515. STOCK CODE CURRENT RATING DIMENSIONS IGL-124/4-SM 125A 4P 400 x 300 x 200 IGL-160/4-SM 160A 4P 400 x 300 x 200 IGL-200/4-SM 200A 4P 500 x 400 x 250 IGL-250/4-SM 250A 4P 500 x 400 x 250 IGL-300/4-SM 300A 4P 800 x 600 250 IGL-400/4-SM 400A 4P 800 x 600 x 250 IGL-500/4-SM 500A 4P 800 x 600 x 250 IGL-630/4-SM 630A 4P 800 x 600 x 250
R 2,930.20 - R 8,949.67
-

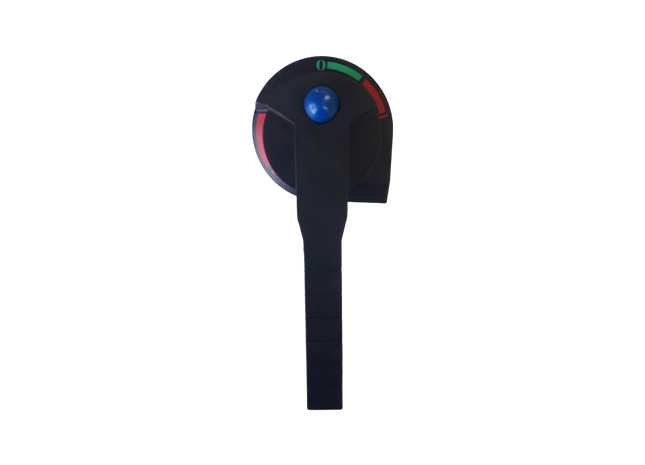

Spare Isolator Handle
Spare Isolator Handle 125A-630A
R 74.37
