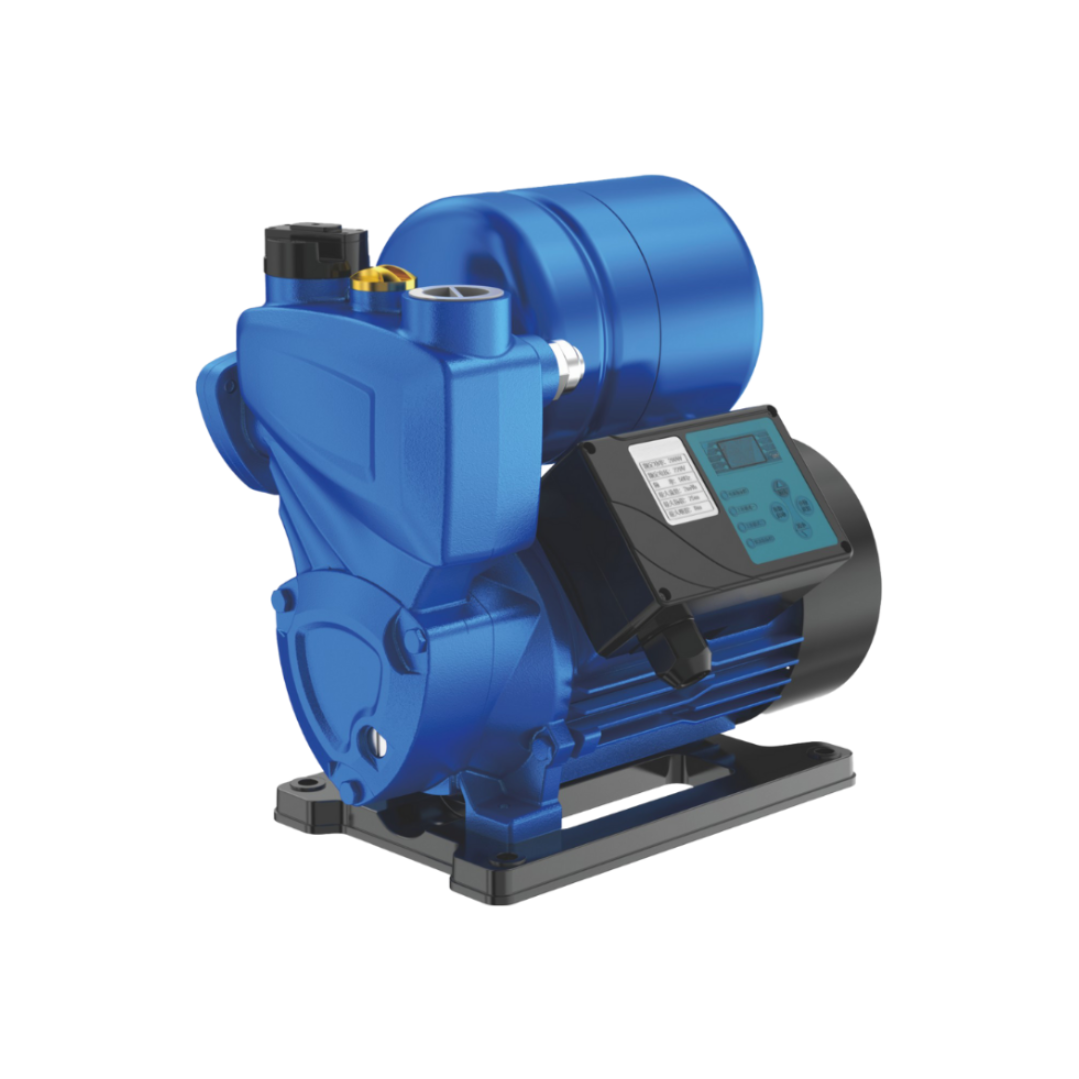

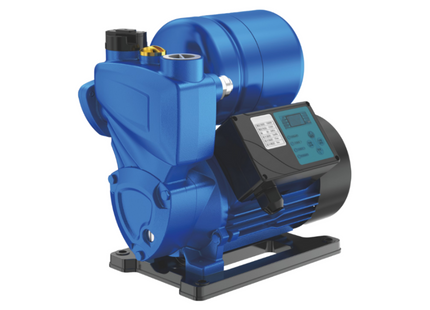

The 0.75kW LCD Self-Priming Water Pump (SHPm750XS) is an
intelligent automatic pressure pump with built-in LCD display,
designed for domestic water supply, garden irrigation, pressure
boosting and rainwater tank transfer in South African homes,
smallholdings and light commercial properties.
Unlike standard pressure pumps, this self-priming pump can draw
water from tanks and reservoirs below the pump level without
manual priming — simply connect and switch on. The built-in
automatic pressure control starts the pump when water demand
is detected and stops it automatically when flow ceases,
preventing unnecessary running and extending pump life.
The LCD display shows real-time operating data including
pressure, flow status and fault information — making
monitoring and fault diagnosis simple without specialist
knowledge. Built-in dry-run protection stops the pump
automatically if no water is available, preventing
costly pump damage.
Key Features:
- 0.75kW (1HP) motor
- Self-priming — no manual priming required
- Automatic pressure control — starts and stops on demand
- LCD display — real-time pressure and fault monitoring
- Dry-run protection — protects pump when tank runs dry
- Max flow rate: 3m³/h (50 litres per minute)
- Max head: 45 metres
- 1" inlet and 1" outlet connections
- Input: 220V | 50Hz
- Max current: 5.2A
- Protection rating: IP44
- Max temperature rating: 40°C
- IEC 60335-1 | IEC 60335-2-41 compliant
- SKU: SHPm750XS
Why this pump is ideal for South Africa:
- Self-priming — no manual priming needed at startup
- LCD display — see exactly what the pump is doing
- Automatic start/stop — only runs when water is needed
- Dry-run protection — safe when tanks run dry during
water outages
- 220VAC single phase — standard South African household supply
- 45m max head — strong enough for multi-storey pressure boosting
Typical Applications:
- Domestic water pressure boosting
- JoJo tank and rainwater harvesting transfer
- Garden and drip irrigation supply
- Borehole to header tank water transfer
- Swimming pool filling and water circulation
- Smallholding and agricultural water supply
- Carwash and pressure washing water supply
⚠️ Note: If stock is unavailable at time of order, our team
will contact you with a full refund option or available
alternative. Confirm stock before purchase —
sales@mapleleafelectrical.co.za or 064 086 3515.
Also available in our Pump range:
→ 0.75kW Stainless Steel Clean Water Pump (surface mounted)
→ 0.75kW Submersible Clean Water Pump (IP68 submersible)
→ 0.75kW Submersible Sewerage Pump with Cutter
→ View all AC Pumps
→ Single Phase Pump Controller (HS-1P-LDP)
-
Input Voltage: 220V
- Frequency : 50Hz
- Max Current : 5.2A
- Protection Rating: IP44
- Max Flow: 3m3/h
- Max Power: 0.75kW
- Max HorsePower: 1HP
- Max Temperature Rating: 40°C
- Connections: 1”In/1”Out
- Max Head: 45m
IEC 60335-1 | IEC 60335-2-41
SKU: SHPm750XS
