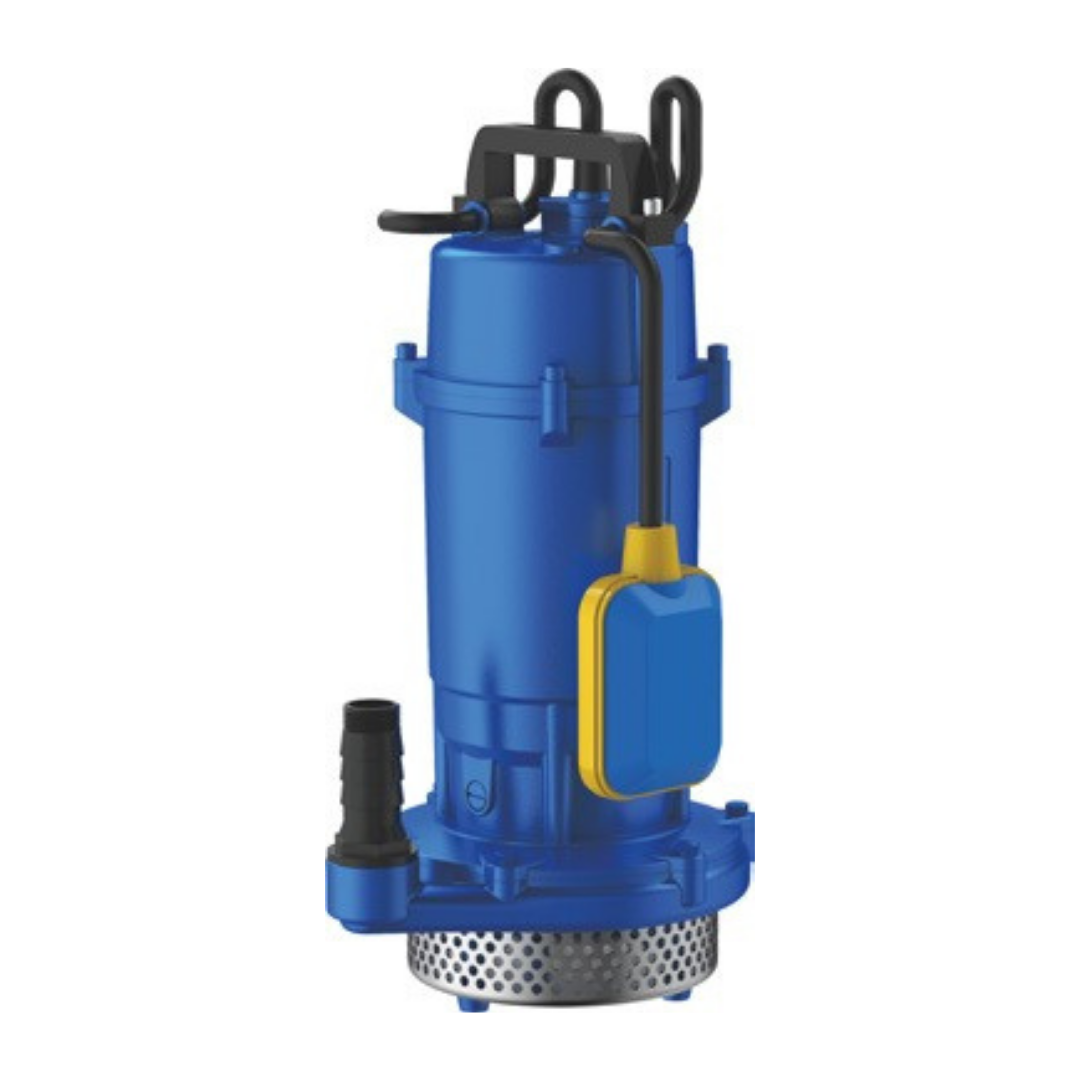

The 0.75kW Submersible Clean Water Pump (HCWS-750-1.5IN) is a
fully submersible 1HP clean water pump designed for installation
directly inside water tanks, reservoirs, sumps, shallow boreholes
and wet wells — delivering reliable water transfer and pressure
supply in South African residential, agricultural and light
commercial water supply applications.
Unlike surface-mounted pumps that are installed above the water
source, this submersible pump is designed to operate fully
submerged — making it ideal for JoJo tank bottom transfer,
reservoir emptying, shallow borehole water supply and any
application where the pump needs to be installed inside the
water source itself.
Rated IP68 for complete, continuous submersion protection,
the HCWS-750-1.5IN delivers a maximum flow rate of 280 litres
per minute with a maximum head of 20 metres through a DN40
(1.5 inch) discharge connection — with a 10 metre power cable
included for installation flexibility.
Submersible vs Surface Pump — Which Do You Need?
- Submersible Pump (this pump) — installs inside the water
source. Best for JoJo tanks, reservoirs, shallow boreholes
and wet wells. Self-priming not required. Quieter operation.
- Surface Pump — installs above the water source. Best for
pressure boosting from tanks and irrigation. Can pump from
further away. Easier to access for maintenance.
Key Features & Specifications:
- 0.75kW (1HP) motor
- Max flow rate: 280 litres per minute
- Max head: 20 metres
- Discharge connection: DN40 (1.5 inch)
- Protection rating: IP68 — fully submersible
- 10 metre power cable included
- Input: 220-240VAC | 50-60Hz
- Max current: 5.2A
- Max temperature rating: 40°C
- SKU: HCWS-750-1.5IN
⚠️ For Clean Water Only:
This pump is designed for clean water transfer only — it is
NOT suitable for sewage, effluent or water containing solids.
For wastewater applications, see our 0.75kW Submersible
Sewerage Pump with Cutter (HVm750CF).
Typical Applications:
- JoJo tank and rainwater harvesting transfer
- Reservoir and storage tank emptying and transfer
- Shallow borehole clean water supply
- Agricultural irrigation supply from dams and reservoirs
- Swimming pool filling and water transfer
- Construction site clean water supply
- Smallholding and farm water supply
Order online with fast nationwide delivery across South Africa.
Contact us — sales@mapleleafelectrical.co.za or 064 086 3515.
Also available in our Pump range:
→ 0.75kW Stainless Steel Surface Clean Water Pump (HJM750SS)
→ 0.75kW LCD Self-Priming VSD Pump
→ 0.75kW Submersible Sewerage Pump with Cutter (HVm750CF)
→ View all AC Pumps
→ Single Phase Pump Controller (HS-1P-LDP)

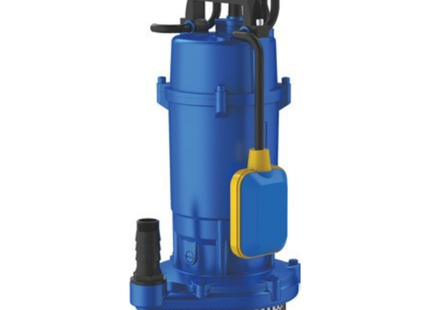

0.75kW Submersible Clean Water Pump 230V
-
Input Voltage: 220-240V
- Frequency : 50-60Hz
- Max Current : 5.2A
- Protection Rating: IP68
- Max Flow: 280L/Min
- Cable Length: 10m
- Max Power: 0.75kW
- Max Horse Power: 1HP
- Max Temperature Rating: 40°C
- Connections: DN40
- Max Head: 20m
SKU: HCWS-750-1.5IN
