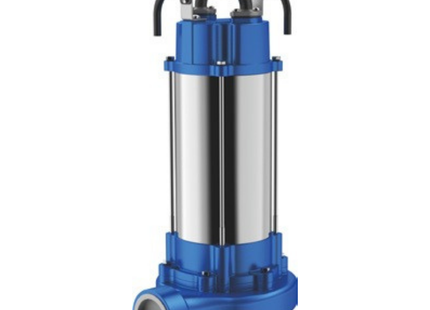

The 0.75kW Submersible Sewerage Pump with Cutter and Float Switch
(HVm750CF) is a heavy-duty submersible effluent pump designed for
the transfer and disposal of raw sewage, wastewater and effluent
containing solids and fibrous material — making it the correct
solution for basement drainage, septic tank emptying, greywater
transfer and any application where standard clean water pumps
would block or fail.
The built-in cutter mechanism chops and macerate solids, fibrous
material, rags and soft debris before pumping — dramatically
reducing blockage risk and allowing the pump to pass material
that would otherwise clog a standard submersible pump. This makes
it ideal for domestic sewage applications, ablution blocks,
caravan parks, construction sites and any installation where
wastewater contains solids.
The automatic float switch starts the pump when the water level
rises to a preset level and stops it when the chamber empties —
providing fully automatic hands-free operation without the need
for a separate pump controller or manual intervention.
Rated IP68 for continuous full submersion, with a 10m power
cable and DN50 discharge connection — ready to install into a
wet well, sump, septic chamber or underground drainage chamber.
Key Features & Specifications:
- 0.75kW (1HP) motor
- Max flow rate: 333 litres per minute
- Max head: 14 metres
- Discharge connection: DN50
- Protection rating: IP68 — fully submersible
- Built-in cutter — chops solids and fibrous material
- Automatic float switch included — hands-free operation
- 10 metre power cable included
- Input: 220-240VAC | 50-60Hz
- Max current: 5.2A
- Max temperature rating: 40°C
- SKU: HVm750CF
Typical Applications:
- Basement and below-ground drainage sumps
- Septic tank and effluent transfer
- Construction site dewatering and site drainage
- Caravan parks and ablution block drainage
- Greywater and wastewater transfer
- Underground parking drainage
- Any application requiring solids-handling sewage pumping
⚠️ Important Installation Notes:
This pump is designed for sewage and effluent containing
solids — it is NOT suitable for clean water applications.
For clean water transfer, see our 0.75kW Stainless Steel
Clean Water Pump (HJM750SS).
For installations requiring automatic level control with
adjustable setpoints, see our Pump Controllers collection.
Order online with fast nationwide delivery across South Africa.
Contact us — sales@mapleleafelectrical.co.za or 064 086 3515.
Also available in our Pump range:
→ 0.75kW Stainless Steel Clean Water Pump
→ 0.75kW LCD Self-Priming VSD Pump
→ View all AC Pumps
→ View all Pump Controllers & Float Switches
-
Input Voltage: 220-240V
- Frequency : 50-60Hz
- Max Current : 5.2A
- Protection Rating: IP68
- Max Flow: 333L/Min
- Cable Length: 10m
- Max Power: 0.75kW
- Max Horse Power: 1HP
- Max Temperature Rating: 40°C
- Connections: DN50
- Max Head: 14m
SKU: HVm750CF
