Allbrox Distribution Board Kit Only

Description

Material SMC (Sheet Moulding Compound)
Operating Temperature -50° C to + 200° C
Glow Wire Capability/Flammability 960° / UL94 V0
Expected UV Life (Direct Exposure) 25 years +
IP Level IP66
IK Level IK10



STOCK CODE: DESCRIPTION No. of rows MCB's per row No. off neutral bars No. of earth bars

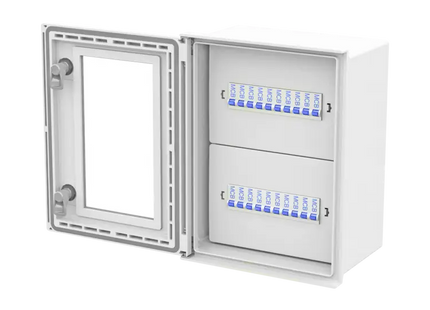

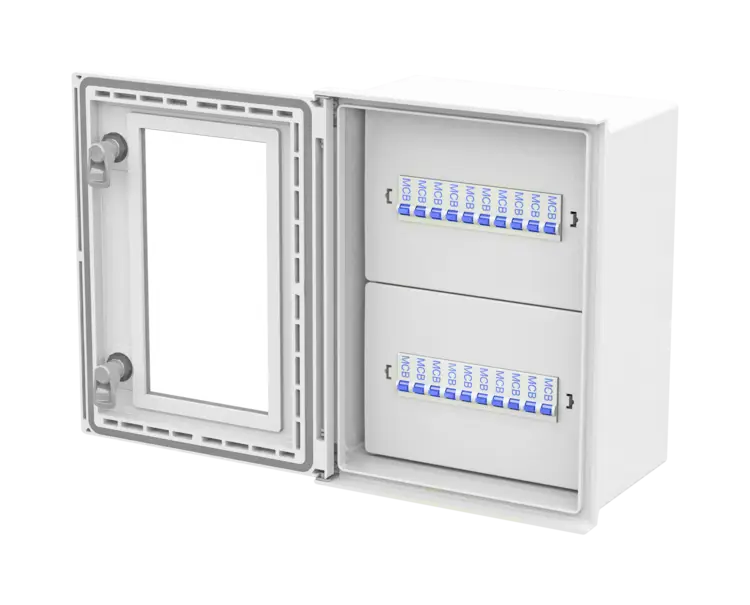

ALL-004/DBK-A Allbrox 4 Distribution Board Kit Assembled 2 10 2x (14 way) 2x (12 way)

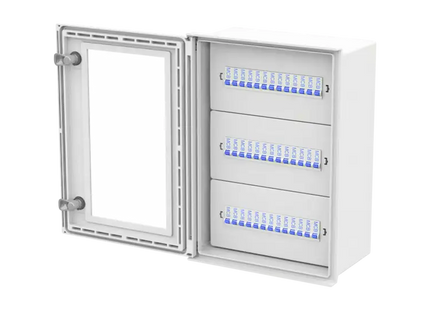

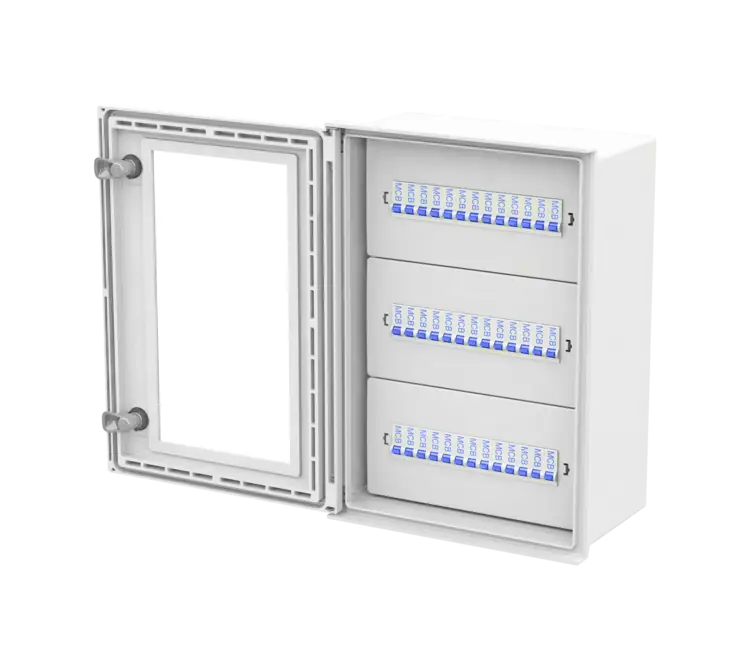

ALL-005/DBK-A Allbrox 5 Distribution Board Kit Assembled 3 13 4x (14 way) 4x (12 way)

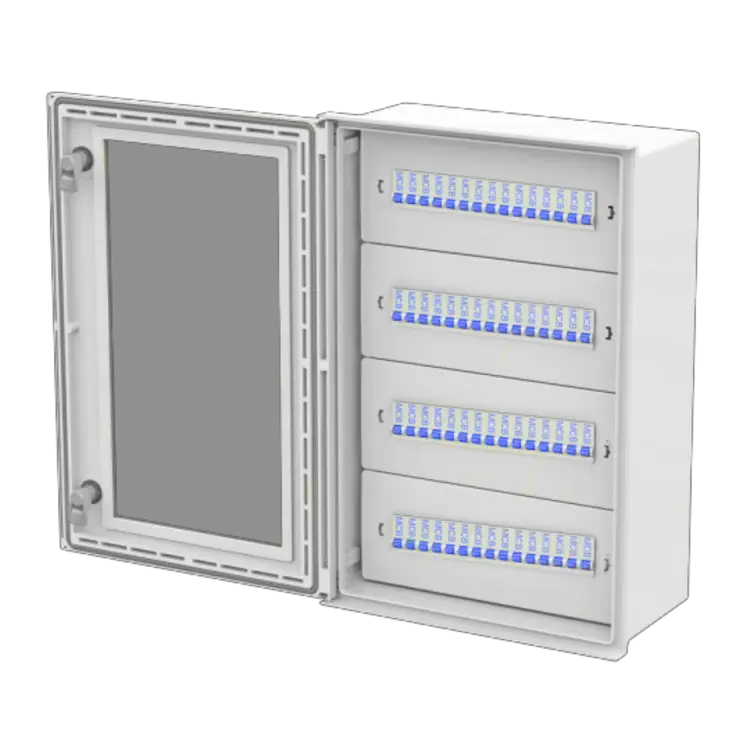

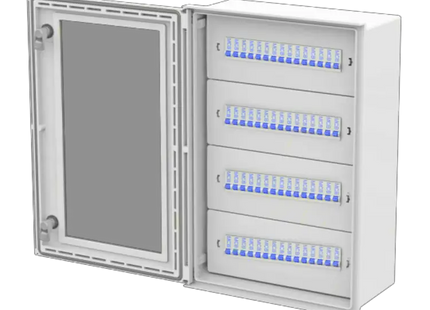

ALL-006/DBK-A Allbrox 6 Distribution Board Kit Assembled 4 15 5x (15 way) 2x (18 way) + 2x (12 way)

Please note: these part numbers are for the distribution board kit only and do not include the Allbrox® enclosure, which must be ordered separately.

Can accommodate the following number of MCB’s:

  • ALL-004/DBK-A: 20
  • ALL-005/DBK-A: 39
  • ALL-006/DBK-A: 60

The Allbrox® is flame retardant, chemically resistant, non-conductive, and weatherproof for added durability. The Allbrox® range comes with a variety of accessories to seamlessly integrate with your project. Available with a polycarbonate window and in multiple sizes. Speak to our sales department about customising the enclosure for your application.

Read more

Allbrox Distribution Board Kit Only

Product form

Material SMC (Sheet Moulding Compound) Operating Temperature -50° C to + 200° C Glow Wire Capability/Flammability 960° / UL94 V0...

Free pickup in our shop(s)
Split your purchase with interest-free payments from R 117.82/m

Make your first payment today, then monthly over 2–6 months.

R 706.96 Incl. VAT

    We accept

    Visa Mastercard Apple Pay Google Pay Capitec Pay

    • Guaranteed secure & safe checkout.

      <p>Guaranteed <b>secure & safe</b> checkout.</p>
    • If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, Please contact us via email - sales@mapleleafelectrical.co.za or call-064 086 3515

    Description

    Material SMC (Sheet Moulding Compound)
    Operating Temperature -50° C to + 200° C
    Glow Wire Capability/Flammability 960° / UL94 V0
    Expected UV Life (Direct Exposure) 25 years +
    IP Level IP66
    IK Level IK10



    STOCK CODE: DESCRIPTION No. of rows MCB's per row No. off neutral bars No. of earth bars
    ALL-004/DBK-A Allbrox 4 Distribution Board Kit Assembled 2 10 2x (14 way) 2x (12 way)
    ALL-005/DBK-A Allbrox 5 Distribution Board Kit Assembled 3 13 4x (14 way) 4x (12 way)
    ALL-006/DBK-A Allbrox 6 Distribution Board Kit Assembled 4 15 5x (15 way) 2x (18 way) + 2x (12 way)

    Please note: these part numbers are for the distribution board kit only and do not include the Allbrox® enclosure, which must be ordered separately.

    Can accommodate the following number of MCB’s:

    • ALL-004/DBK-A: 20
    • ALL-005/DBK-A: 39
    • ALL-006/DBK-A: 60

    The Allbrox® is flame retardant, chemically resistant, non-conductive, and weatherproof for added durability. The Allbrox® range comes with a variety of accessories to seamlessly integrate with your project. Available with a polycarbonate window and in multiple sizes. Speak to our sales department about customising the enclosure for your application.
