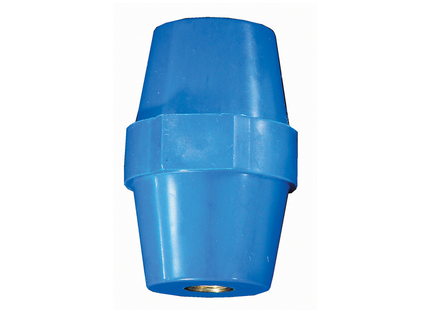

Busbar Insulators

Description

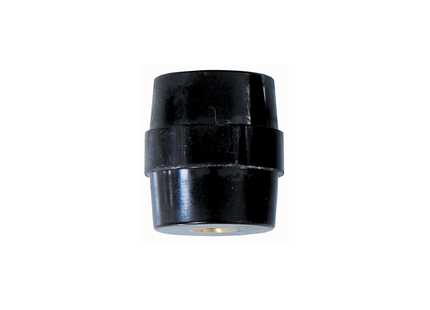

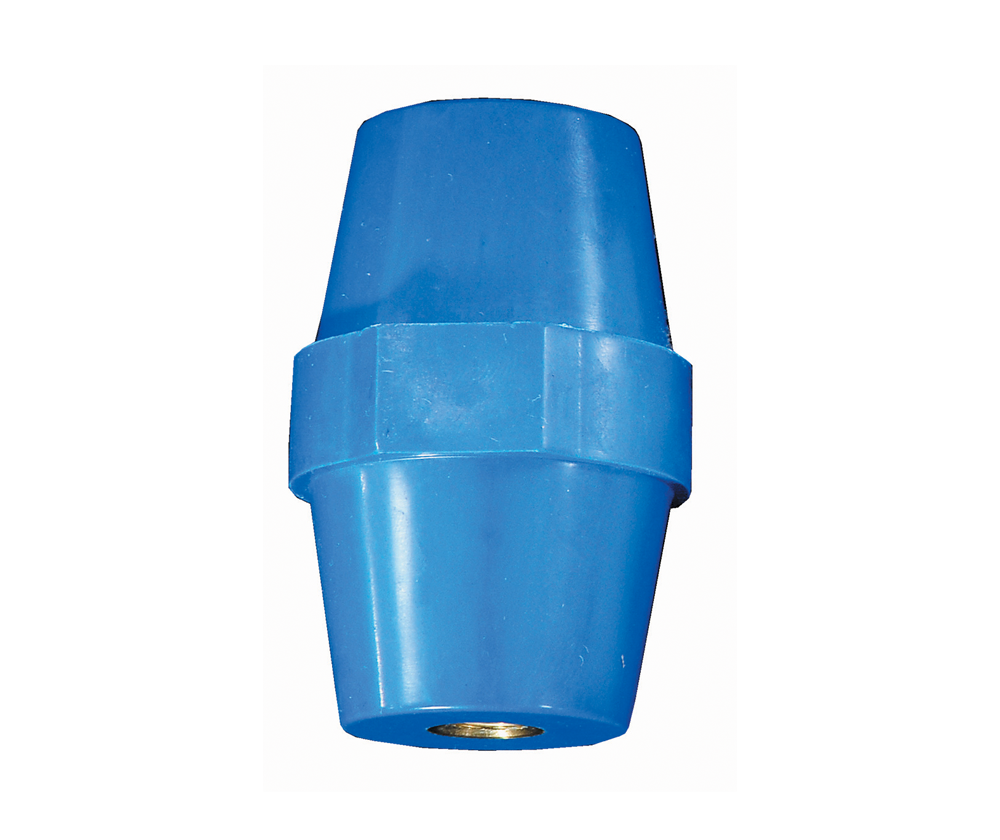

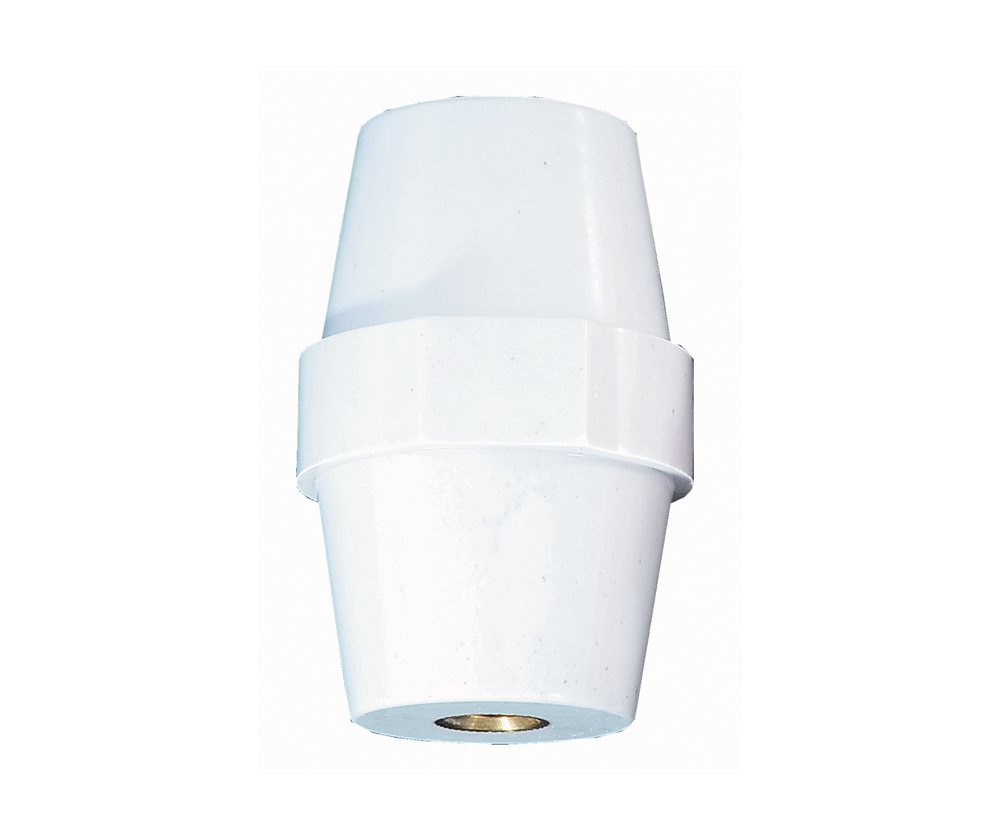

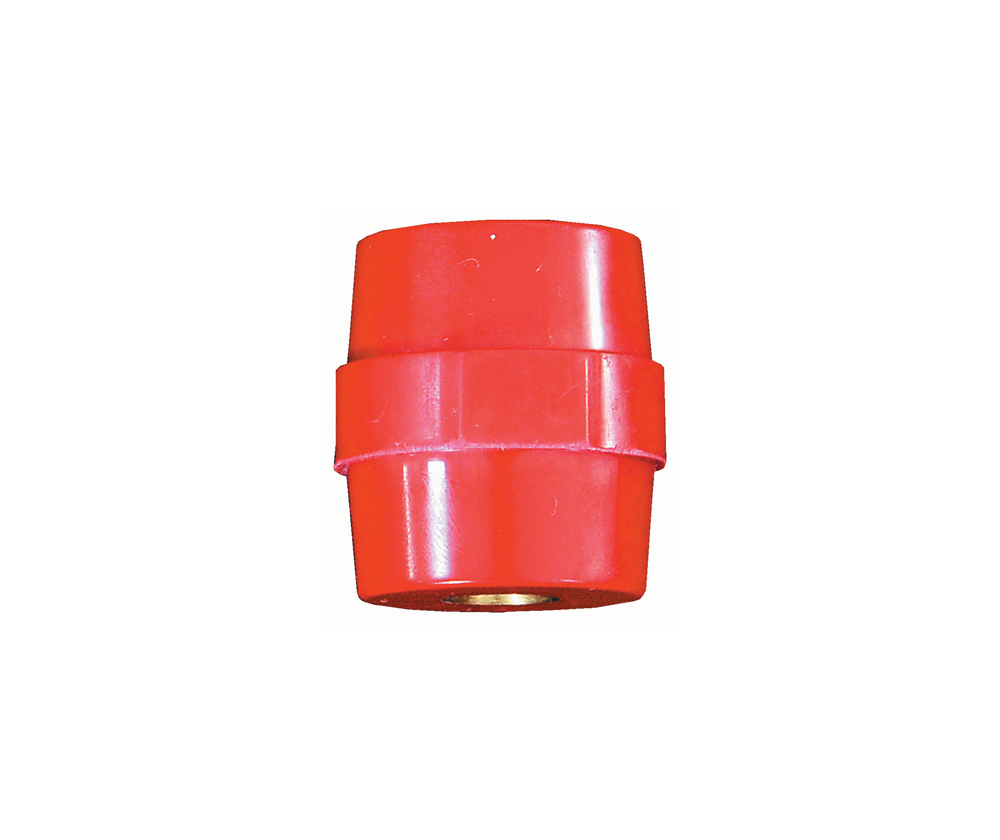

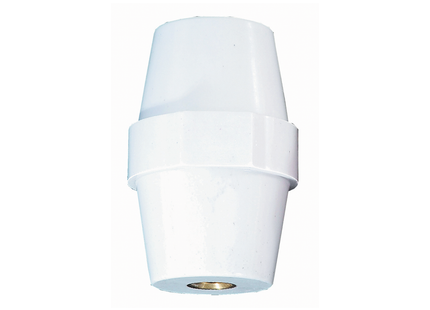

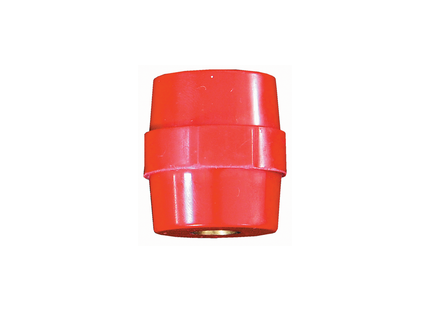

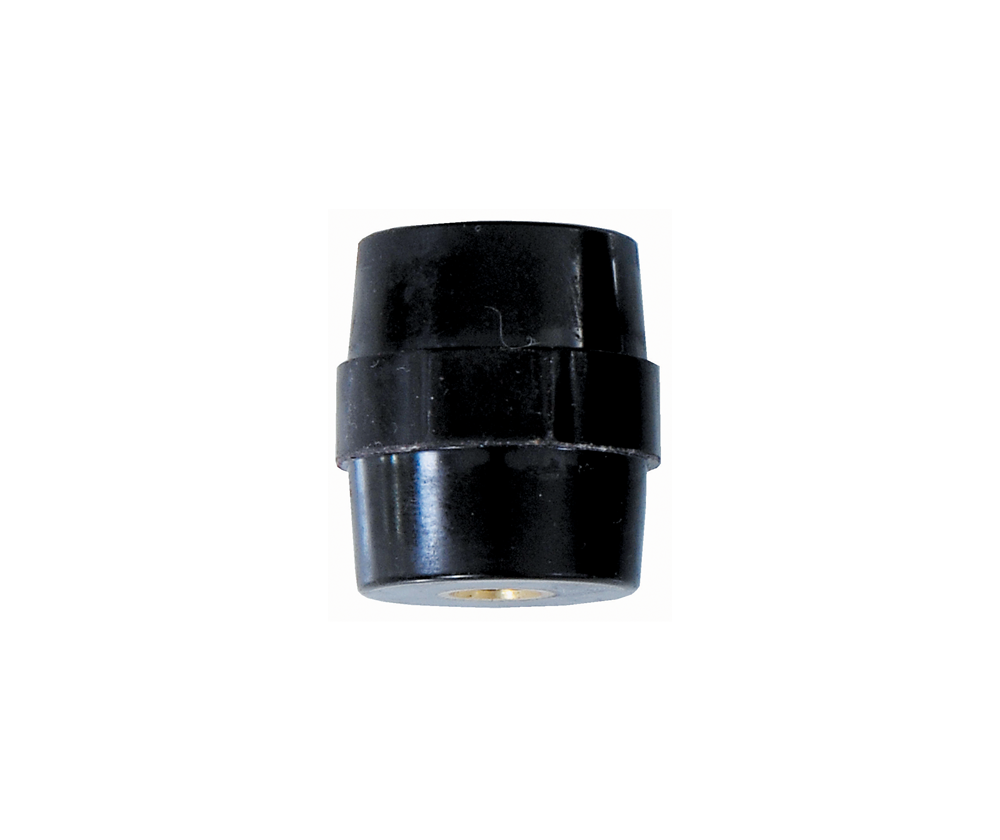

SM-Series Busbar Insulators are high-strength female-type insulators
designed for use in distribution boards, switchgear panels, busbar
systems and control gear enclosures across South Africa.

Available in 7 sizes (SM-25 to SM-76) with voltage withstand ratings
from 6kV up to 25kV, these insulators are suitable for a wide range of
low and medium-voltage busbar applications in residential, commercial
and industrial installations.

Each insulator features:
- High tensile strength from 500lbs (SM-25) up to 1500lbs (SM-76)
- Voltage withstand rated from 6kV to 25kV
- No studs — female insulator design

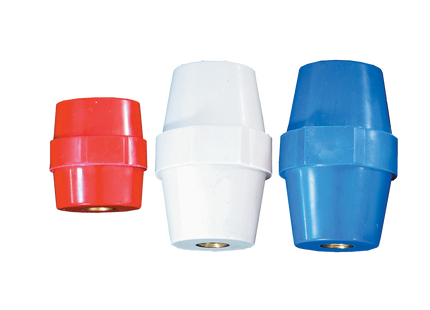

- Available in Red, Blue, White and Black
- Screw sizes from 6mm to 10mm depending on model
- Suitable for DB boards, switchgear panels and busbar trunking systems

Colour coding guide (standard SA wiring practice):
- Red — Phase L1
- Blue — Neutral / Phase L2
- Black — Phase L3 / Earth
- White — General use / alternative neutral

Ideal for electricians, panel builders and electrical contractors
building or upgrading distribution boards and switchgear panels.

Order online with fast nationwide delivery across South Africa, or
contact us for contractor and bulk pricing.

STOCK CODE TENSILE STRENGTH STUDS VOLTAGE WITHSTAND TORQUE STRENGTH SCREW SIZE
SM-25 500lbs No Studs 6 kV 7 Nm 6mm
SM-30 550lbs No Studs 8 kV 9 Nm 8mm
SM-35 600lbs No Studs 10 kV 11 Nm 8mm
SM-40 650lbs No Studs 12 kV 13 Nm 8mm
SM-51 1000lbs No Studs 15 kV 23 Nm 8mm
SM-60 1200lbs No Studs 20 kV 40 Nm 10mm
SM-76 1500lbs No Studs 25 kV 46 Nm 10mm

Read more

Busbar Insulators

Product form

SM-Series Busbar Insulators are high-strength female-type insulators designed for use in distribution boards, switchgear panels, busbar systems and control gear enclosures across...

Free pickup in our shop(s)

R 13.74 Incl. VAT

    We accept

    Visa Mastercard Apple Pay Google Pay Capitec Pay

    • Guaranteed secure & safe checkout.

      <p>Guaranteed <b>secure & safe</b> checkout.</p>
    • If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, Please contact us via email - sales@mapleleafelectrical.co.za or call-064 086 3515
